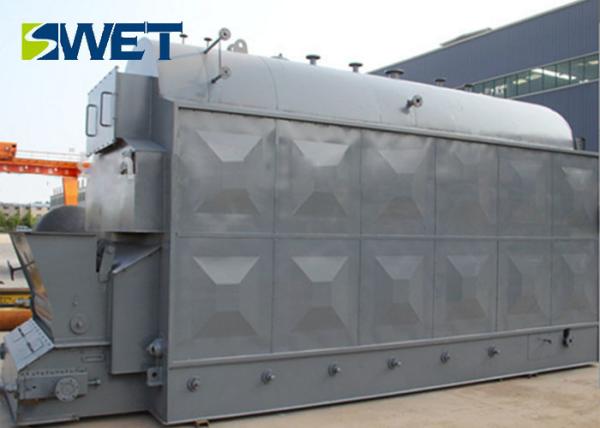

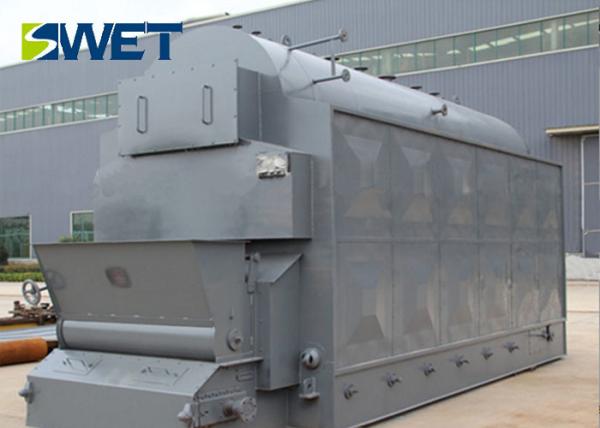

25T Chain Grate Steam Boiler For Smelting / Fertilizer ISO9001 Approval
25T Chain Grate Steam Boiler For Smelting / Fertilizer ISO9001 Approval
25T Chain Grate Steam Boiler For Smelting / Fertilizer ISO9001 Approval
25T Chain Grate Steam Boiler For Smelting / Fertilizer ISO9001 Approval
25T Chain Grate Steam Boiler For Smelting / Fertilizer ISO9001 Approval
25T Chain Grate Steam Boiler For Smelting / Fertilizer ISO9001 Approval
25T Chain Grate Steam Boiler For Smelting / Fertilizer ISO9001 Approval
25T Chain Grate Steam Boiler For Smelting / Fertilizer ISO9001 Approval
Specifications
Brand Name :
SWET
Model Number :
SZL25-2.5-T-0020
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability :
200 Set/Sets Per Year
Delivery Time :
25-35 work days
Packaging Details :
The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Rated evaporation :
25t/h
Working pressure :
2.5MPa
Return water temperature :
104℃
Keywords :
Biomass boiler
Steam temperature :
224℃
Exhaust temperature :
160℃
Combustion mode :
Suspension combustion + layer combustion
Thermal efficiency :
85%
Description

25T Industrial Steam Chain Biomass Boiler For Smelting And Fertilizer

Product Description

1. Advanced arched design:

Arched design with low and long back arch and anti-tilt at the exit section. The inclination of the front arch echoes with the back arch, forming a pronounced inverted "α" flame, which is good for the combustion of low-grade coal with strong coal adaptability.

2. Original membrane wall structure:

Membrane water wall structure is unique and unique design of Zheng pot, will be used in power plant boiler membrane wall structure used in boiler assembly, the advantages of large heat transfer coefficient, heat transfer, heat loss, air tightness, Furnace wall is not deformed, no leakage of ash.

3. Dedicated GEF slag removal technology:

Grate using a new type of small scale grate plate, an increase of unique insurance ring, completely overcome the grate chip off technical problems, effectively reduce the grate leaks, the grate stable and reliable operation, greatly improving the combustion efficiency.

Technical Parameters

Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

℃

℃

℃

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800

25T Chain Grate Steam Boiler For Smelting / Fertilizer ISO9001 Approval

Application

25T Chain Grate Steam Boiler For Smelting / Fertilizer ISO9001 Approval
