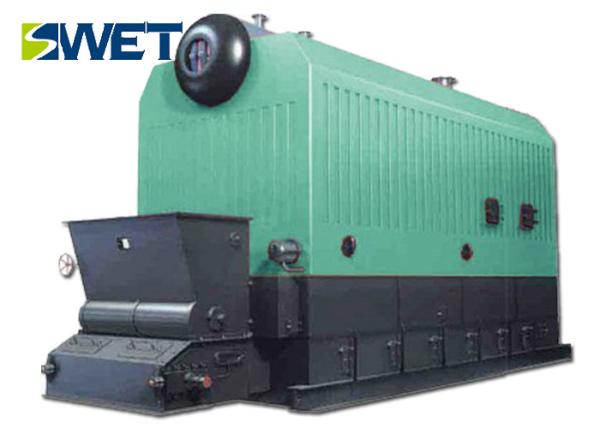

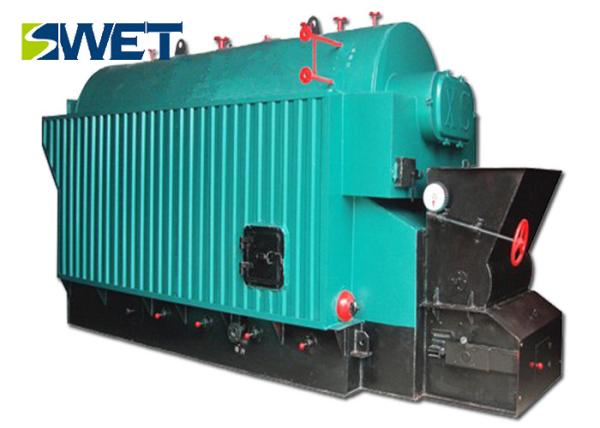

1.25MPa Chain Grate Steam Boiler Coal Burning 194℃ Steam Temperature
1.25MPa Chain Grate Steam Boiler Coal Burning 194℃ Steam Temperature
1.25MPa Chain Grate Steam Boiler Coal Burning 194℃ Steam Temperature
1.25MPa Chain Grate Steam Boiler Coal Burning 194℃ Steam Temperature
1.25MPa Chain Grate Steam Boiler Coal Burning 194℃ Steam Temperature
1.25MPa Chain Grate Steam Boiler Coal Burning 194℃ Steam Temperature
Specifications
Brand Name :
SWET
Model Number :
SZL10-1.25-T-0005
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-35 work days
Packaging Details :
The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Rated evaporation :
10t/h
Working pressure :
1.25MPa
Return water temperature :
104℃
Boiler dimensions :
8830x3180x5730mm
Steam temperature :
194℃
Color :
Base on needs
Combustion mode :
Suspension combustion + layer combustion
Thermal efficiency :
81%
Description

1.25MPa Portable Double Drum Longitudinal Chain Grate Steam Boiler Coal Burning

Product Description

1. Double boiler vertical longitudinal chain grate steam boiler, the boiler body by the vertical set of the upper and lower drum and convection tube bundle on both sides of the combustion chamber equipped with a light pipe water wall tube.

2. The upper drum is equipped with a soda separator and a surface blowdown device. The lower drum is equipped with a regular blowdown device and an economizer is arranged at the rear of the boiler.

Technical Parameters

Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

℃

℃

℃

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800

Performance Characteristics

1. Burning part of the light chain grate, both sides into the wind.Grain row has six independent wind chamber, wind chamber on both sides of the wind mechanism, the air from the blower into the lower part of the base into the side air duct, Breeze agencies into the independent plenum.

2. The upper furnace wall is assembled by the factory and the lower furnace wall and the front and back arches are made of refractory clay brick silicate fiber and thermal insulation material, the fuel enters the hearth from the coal hopper through the coal gate, and the cinder of the burning ash falls into the slag discharge Bucket discharged by the screw slag machine.

3. The boiler is equipped with electric control console, boiler with thermal parameter display, drum, induced draft fan opening indication table, electric actuator remote control button.

Technological Process

1.25MPa Chain Grate Steam Boiler Coal Burning 194℃ Steam Temperature
