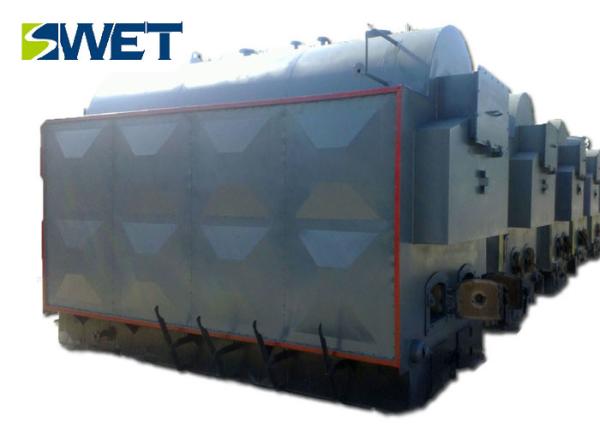

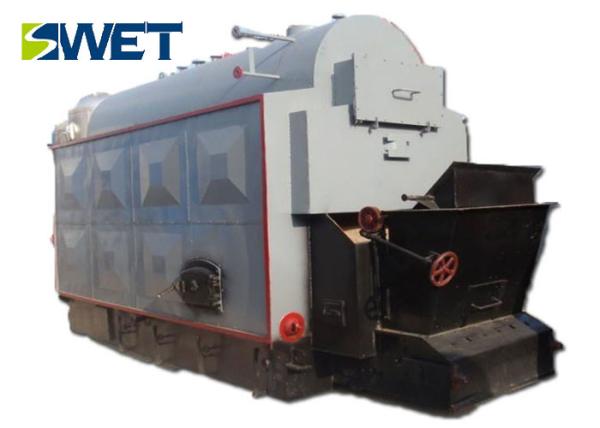

Vertical Chain Grate Steam Boiler For Metallurgical Industry Full Automation
Vertical Chain Grate Steam Boiler For Metallurgical Industry Full Automation
Vertical Chain Grate Steam Boiler For Metallurgical Industry Full Automation
Vertical Chain Grate Steam Boiler For Metallurgical Industry Full Automation
Vertical Chain Grate Steam Boiler For Metallurgical Industry Full Automation
Vertical Chain Grate Steam Boiler For Metallurgical Industry Full Automation
Vertical Chain Grate Steam Boiler For Metallurgical Industry Full Automation
Vertical Chain Grate Steam Boiler For Metallurgical Industry Full Automation
Specifications
Brand Name :
SWET
Model Number :
SZL10-1.25-T-0006
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-35 work days
Packaging Details :
The main part of the boiler is bare packaging and wood packaging, container or according to packaging needs.
Rated evaporation :
10t/h
Working pressure :
1.25MPa
Return water temperature :
104℃
Keywords :
Chain grate steam boiler
Steam temperature :
194℃
Exhaust temperature :
150℃
Boiler dimensions :
8830x3180x5730mm
Thermal efficiency :
81%
Description

Industrial Full Automatic Vertical Chain Grate Steam Boiler For Metallurgical Industry

Product Description

1. Chain grate steam boiler combustion part of the double grate combustion chamber, heating, booster fast, unburnt gas after secondary combustion, play a full combustion, smoke, dust removal.

2. The bent water pipe arranged on the upper part of the furnace body is convection and heat-affected zone. The grate pipe and the furnace grate arranged at the lower part of the furnace body are the radiant heat-affected zones, the furnace body structure and the flue gas flow are reasonable in layout and good in heat transfer. The boiler is reasonable in design and simple in structure , Convenient operation and maintenance, small area and less investment in infrastructure. It is one of the ideal equipments for producing steam and heating for small enterprises and institutions.

3. Air from the blower into the total air duct through the bottom of the air chamber into the grate on both sides of the air duct, and then through their adjustable fan-shaped fan door into the air chamber, through the chain grate coal seam into the furnace

Technical Parameters

Boiler type and parameter list of double boiler barrel series chain grate boiler

Boiler model

Rated evaporation

Working pressure

Steam temperature

Water supply temperature

Exhaust temperature

Thermal efficiency

Boiler dimensions

Unit

t/h

Mpa

℃

℃

℃

%

mm

SZL10-1.25-T

10

0.7/1.0/1.25

170/184/194

104

150

≥80

8830x3180x5730

SZL15-1.6-T

15

1.0/1.25/1.6

184/194/204

104

155

≥80

14000x4174x614

SZL20-1.6-T

20

1.0/1.25/1.6

184/194/204

104

155

≥80

15820x4620x8680

SZL25-2.5-T

25

1.25/1.6/2.5

194/204/224

104

160

≥80

12800x6000x8420

SZL30-2.5-T

30

1.25/1.6/2.5

194/204/224

104

160

≥80

13000x7100x9500

SZL35-2.5-T

35

1.25/1.6/2.5

194/204/224

104

160

≥80

3000x7600x9800

Our Service

1. Provides graphic design drawing and technical training,professional guidance.

2. Supply all spare parts in boiler service life,a better choice.

3. Our staff of sales and technical support is available to help you in selecting the right boiler for your

application .
