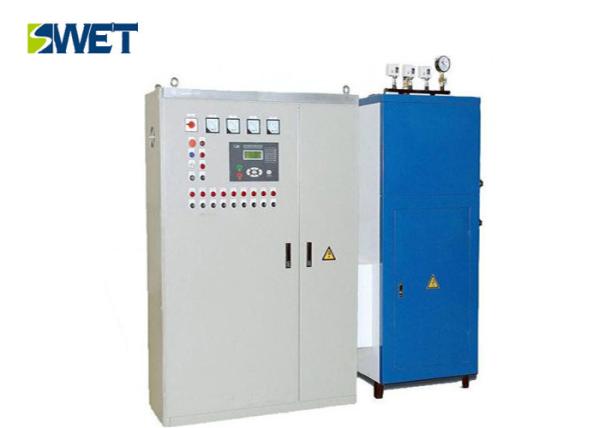

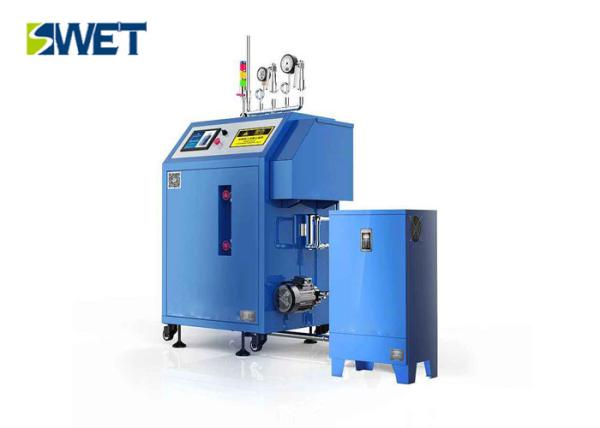

Industrial Steam Electric Generator , Automatic Electric Powered Boilers
Industrial Steam Electric Generator , Automatic Electric Powered Boilers
Industrial Steam Electric Generator , Automatic Electric Powered Boilers
Industrial Steam Electric Generator , Automatic Electric Powered Boilers
Industrial Steam Electric Generator , Automatic Electric Powered Boilers
Industrial Steam Electric Generator , Automatic Electric Powered Boilers
Industrial Steam Electric Generator , Automatic Electric Powered Boilers
Industrial Steam Electric Generator , Automatic Electric Powered Boilers
Specifications
Brand Name :
SWET
Model Number :
LDR0.024 -0.7-3008
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Rated evaporation :
24 kg/h
Fixed work stress :
0.7mpa
Saturated steam temperature :
171℃
Output current :
27 A
Rated voltage :
380 V
Model :
LDR0.024 -0.7-3008
Dimensions Length × width × height :
850×600 ×1000 mm
weight :
92 Kg
Description

Industrial Automation Intelligent Energy-Saving Electric Steam Boiler


Product description

1. The level controller is the central nervous system generator control system, divided into two categories of electronic and mechanical.

2. The electronic liquid level controller controls the liquid level (ie, the water level difference) through three electrode probes with different heights so as to control the water supply of the water pump

3. Mechanical liquid level controller with stainless steel float type, suitable for large volume furnace generator, the working pressure is not stable, but easy to disassemble, maintenance, repair.

Product advantages

1. Compact structure, scientific and rational design and advanced manufacturing technology, so that the boiler space is small, easy to transport and save the use of venues.

2. No noise, pollution-free, high thermal efficiency, the boiler body made of high quality and efficient thermal insulation materials, heat loss, energy saving.

Application

Fully automatic electric steam boiler / electric heating steam boiler widely used in pharmaceutical factory, packing factory, building material factory, paint factory, beauty salon, bathing center, sauna, vegetable dehydration, steam room and so on.

Product parameters

model

LDR0.004

-0.4

LDR0.013

-0.7

LDR0.024

-0.7

LDR0.035

-0.7

LDR0.05

-0.7

LDR0.08

-0.7

LDR0.1

-0.7

 LDR0.15-0.7

LDR0.17-0.7
project unit
Rated evaporation Kg/h 4 13 24 35 50 80 100 150 170
Fixed work stress Mpa 0.4 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Saturated steam temperature ℃ 151 171 171 171 171 171 171 171 171
input power KW 3 9 18 24 36 54 72 108 120
Output current A 6 14 27 41 55 79 113 164 183
Rated voltage V 220/380 380 380 220/380 220/380 380 380 380 380
Intake pipe diameter DN 15 15 15 15 15 15 15 15 15
Main steam valve caliber DN 15 15 15 15 15 15 20 25 25
Safety valve caliber DN 15 15 15 15 15 15 40 25 25

Dimensions

Length × width × height

 mm

680×

520

×850

750×

550

×920

850×

600

×1000

850×

600

×1000

900×

650

×1150

900×

650

×1200

880×

870

×1300

1010×

740

×1210

1010×

740

×1210
weight Kg 50 79 92 118 132 150 280 160 160
