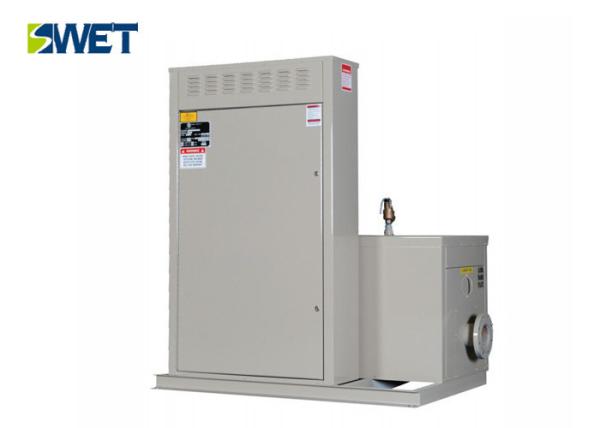

Food Industry Electric Fired Boiler , 380 V 80Kg / H Steam Boiler Furnace
Food Industry Electric Fired Boiler , 380 V 80Kg / H Steam Boiler Furnace
Food Industry Electric Fired Boiler , 380 V 80Kg / H Steam Boiler Furnace
Food Industry Electric Fired Boiler , 380 V 80Kg / H Steam Boiler Furnace
Food Industry Electric Fired Boiler , 380 V 80Kg / H Steam Boiler Furnace
Food Industry Electric Fired Boiler , 380 V 80Kg / H Steam Boiler Furnace
Food Industry Electric Fired Boiler , 380 V 80Kg / H Steam Boiler Furnace
Food Industry Electric Fired Boiler , 380 V 80Kg / H Steam Boiler Furnace
Specifications
Brand Name :
SWET
Model Number :
LDR0.08 -0.7-3011
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Rated evaporation :
80 kg/h
Fixed work stress :
0.7mpa
input power :
54 KW
Output current :
79 A
Rated voltage :
380 V
Model :
LDR0.08 -0.7-3011
Dimensions Length × width × height :
900×650 ×1200 mm
weight :
150 Kg
Description

Rational Design Of High-Profile 80Kg / h Electric Steam Boiler For Food Industry


Product description

1. The electric steam boiler water supply system is the throat of automatic steam generator, an endless supply of dry steam to users

2. The level controller is the central nervous system generator control system, divided into two categories of electronic and mechanical

3.The furnace body are generally used for boiler made of seamless steel tubes, was elongated vertical

Product advantages

1. No noise, pollution-free, high thermal efficiency, the boiler body made of high quality and efficient thermal insulation materials, heat loss, energy saving.

2. Compact structure, scientific and rational design and advanced manufacturing technology, so that the boiler space is small, easy to transport and save the use of venues.

Application

Fully automatic electric steam boiler / electric heating steam boiler widely used in hospitals, schools, textile mills, garment factories, garment supermarkets, garment factories, dry cleaners, restaurants, hotels, restaurants

Product parameters

model

LDR0.004

-0.4

LDR0.013

-0.7

LDR0.024

-0.7

LDR0.035

-0.7

LDR0.05

-0.7

LDR0.08

-0.7

LDR0.1

-0.7

 LDR0.15-0.7
project unit
Rated evaporation Kg/h 4 13 24 35 50 80 100 150
Fixed work stress Mpa 0.4 0.7 0.7 0.7 0.7 0.7 0.7 0.7
input power KW 3 9 18 24 36 54 72 108
Output current A 6 14 27 41 55 79 113 164
Rated voltage V 220/380 380 380 220/380 220/380 380 380 380
Intake pipe diameter DN 15 15 15 15 15 15 15 15
Main steam valve caliber DN 15 15 15 15 15 15 20 25
Safety valve caliber DN 15 15 15 15 15 15 40 25

Dimensions

 mm

680×520

×850

750×550

×920

850×600

×1000

850×600

×1000

900×650

×1150

900×650

×1200

880×870

×1300

1010×740

×1210
weight Kg 50 79 92 118 132 150 280 160


Food Industry Electric Fired Boiler , 380 V 80Kg / H Steam Boiler Furnace


Food Industry Electric Fired Boiler , 380 V 80Kg / H Steam Boiler Furnace
