Heating Steam Boiler With Natural Circulation 500 Kg/H Steam Capacity
Heating Steam Boiler With Natural Circulation 500 Kg/H Steam Capacity
Heating Steam Boiler With Natural Circulation 500 Kg/H Steam Capacity
Heating Steam Boiler With Natural Circulation 500 Kg/H Steam Capacity
Heating Steam Boiler With Natural Circulation 500 Kg/H Steam Capacity
Heating Steam Boiler With Natural Circulation 500 Kg/H Steam Capacity
Heating Steam Boiler With Natural Circulation 500 Kg/H Steam Capacity
Heating Steam Boiler With Natural Circulation 500 Kg/H Steam Capacity
Specifications
Brand Name :
SWET
Model Number :
LDR0.5- 0.8-3017
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
25-30 work days
Packaging Details :
The boiler in nude package, but covered with water-proof covering, accessories in plywood case or tin case, this can be changed as your requirements
Steam capacity :
500 kg/h
Rated pressure :
0.8 MPa
Input power :
360 kW
Rated current :
540 A
Main voltage :
380 V
Model :
LDR0.5- 0.8-3017
Description

Professional 500 Kg/h Heating Steam Boiler With Natural Circulation


Product description

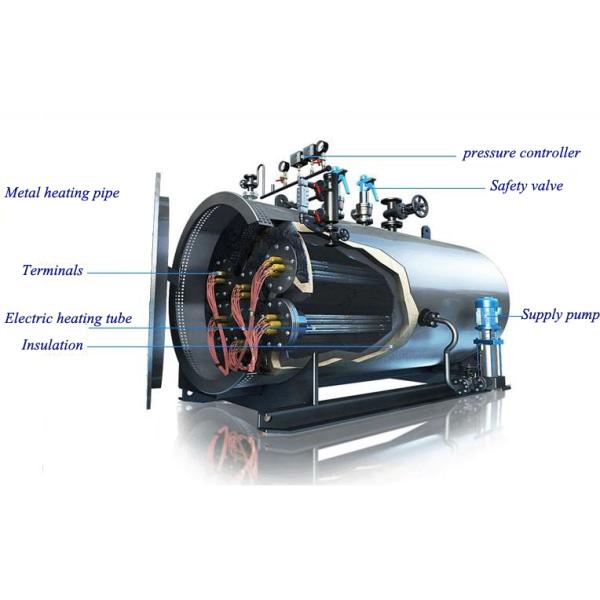

1. The electric steam boiler is also called electric heating steam boiler, electric steam boiler, electric steam boiler is the use of electricity to heat water to produce steam boiler equipment.

2. Electric steam boiler energy saving, environmental protection, high thermal efficiency and noise-free, non-polluting, especially by SMEs welcome.

3. Electric steam boiler is divided into inspection-free small electric steam boiler and GB electric steam boiler, the inspection-free small electric steam boiler does not belong to special equipment and is not under the supervision of technical supervision department.
Product advantages

1. Compact structure, scientific and rational design and advanced manufacturing technology, so that the boiler space is small, easy to transport and save the use of venues.

2. No noise, pollution-free, high thermal efficiency, the boiler body made of high quality and efficient thermal insulation materials, heat loss, energy saving.

Application

Electric steam boiler mainly for the canteen, dry cleaners, steam room, steam iron to provide the necessary drying steam, in food plants, soy products factory, garment factories are more commonly used.

Product parameters

Specfications for automatic electric steam boiler
Model

LDR0.15-0.8

LDR0.2-
0.8

LDR0.25-0.8

LDR0.3-
0.8

LDR0.4-
0.8

LDR0.5-
0.8

Item Unit
Steam capacity kg/h150200250300400500
Rated pressureMPa0.80.80.80.80.80.8
Saturated steam temperatureC

175

175

175175175175
Input powerkW

108

144

180216288360
Rated currentA

167

216

270324432540
Main voltageV

380

380

380380380380
Steam outlet valve dia.DN

25

25

32323240
Safety valve dia.DN

25

25

25253240
Water inlet dia.DN

20

20

25252525
Blow-down valve dia.DN

25

25

32323232
Overall dimension (L×W×H)mm

920×760
×1390

1130×750
×1780

950×900
×1830

1320×1040
×1920

1380×1040
×2070

1020×890
×2350

Net weightkg2484506507608901020


Heating Steam Boiler With Natural Circulation 500 Kg/H Steam Capacity
Heating Steam Boiler With Natural Circulation 500 Kg/H Steam Capacity
