Specifications
Brand Name :
SWET
Model Number :
LSS-7011
Certification :
ISO 9001
Place of Origin :
HENAN CHINA
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
15 work days
Packaging Details :
The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
500kg
Steam pressure :
0.7Mpa
Rated steam temperature :
170℃
Thermal efficiency :
93%
Color :
Customer's Requirement
Design fuel :
Biomass
Warranty :
12 months
Weight :
4100kg
Dimension :
2500X1800X2500mm
Material :
boiler steel
Description

0.5T Fix Grate Industrial Biomass Steam Boiler For Dehydrator


The biomass steam boiler description

1.The steam generator fuels are renewable biomass, the running cost is one fifth of electric boiler, one third of oil boiler.

2.The steam generator furnace adopts the three-dimensional air circulation of three sides and a second oxygenating mouth.complete combustion and no visible smoke emissions. fully meeting the national emission requirements on the boiler.

3.The steam generator control system security protection includes multiple functions such as low water level, overheating, and overpressure etc. to ensure no security risks.

4. Efficient energy-saving: biomass steam generator using the most advanced micro-positive pressure combustion, a unique primary air heating, secondary air combustion configuration, making the combustion completely, the boiler body multi-return layout, compact structure, heating area sufficient, The furnace is very fast, 5 minutes pressure up to 0.7MPa.


The biomass steam boiler technical parameters

Biomass steam boiler technical
Rated evaporation Rated pressure Rated steam temperature Feed water temperature Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
L W H
Kg/h Mpa ℃ ℃ % L DN DN DN mm mm mm T Kg/h
80 0.7 170℃ 20℃ 90% 26.5 15 15 20 1600 900 1750 0.6 13.6
100 0.7 170℃ 20℃ 90% 26.8 15 15 20 1600 900 1900 0.65 16.4
150 0.7 170℃ 20℃ 90% 27 15 15 20 1650 900 1900 0.7 24.6
200 0.7 170℃ 20℃ 90% 27 20 15 25 2150 1000 2400 1.2 32.8
300 0.7 170℃ 20℃ 93% 28 25 15 25 2000 1400 2700 1.35 46.1
400 0.7 170℃ 20℃ 93% 28.7 32 15 25 2350 1750 2200 3 61.5
500 0.7 170℃ 20℃ 93% 29 32 1525 25 2500 1800 2500 4.1 76.8
600 0.7 170℃ 20℃ 93% 29.5 32 15 25 2500 1800 2500 4.3 80
1000 0.7 170℃ 20℃ 92% 29 32 15 25 3000 2300 2500 6 153.5

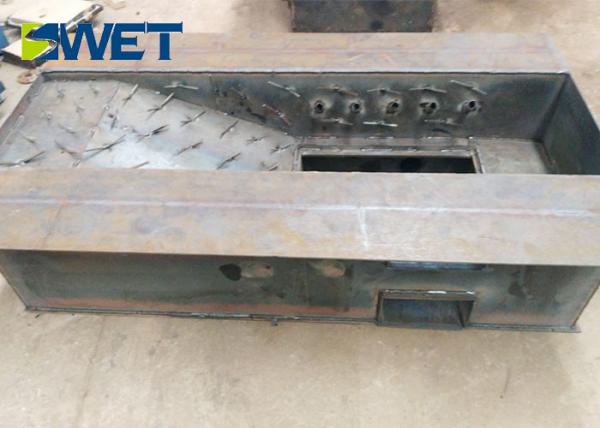

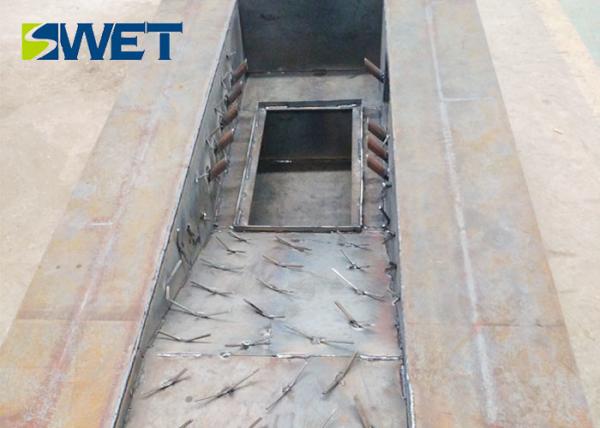

500kg biomass steam boiler production process:

0.5T Fix Grate Biomass Energy Compact Structure 4100kg Weight

500kg biomass steam boiler detail picture :


0.5T Fix Grate Biomass Energy Compact Structure 4100kg Weight

0.5T Fix Grate Biomass Energy Compact Structure 4100kg Weight
