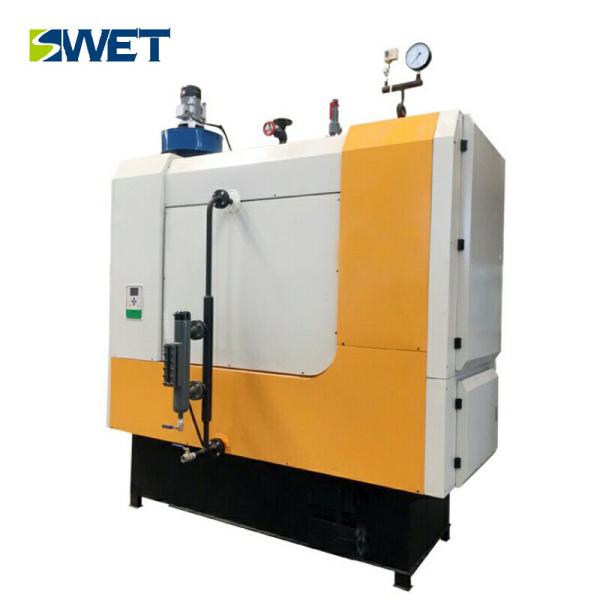

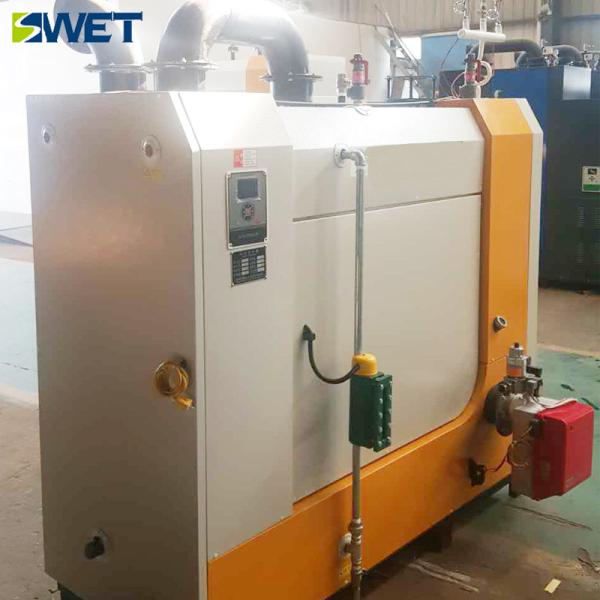

High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
Specifications
Brand Name :
SWET
Model Number :
LSS-6010
Certification :
ISO9001
Place of Origin :
HENAN,CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 SETS PER YEAR
Delivery Time :
10 WORKING DAY
Packaging Details :
The 600kg steam boiler bady with plywood packaging.
Product name :
600kg gas steam boiler
Item :
YDZ-6010 gas steam boiler
Design fuel :
gas/oil
Color :
Customer's Requirement
Warranty :
12 Months
Thermal efficiency :
over 92%
The biggest fuel consumption(Nm3/h) :
46.9
Rated evaporation (kg/h) :
600
Rated steam temperature(℃) :
170
Rated steam pressure(Mpa) :
0.7
Size :
3200x1500x2500mm
Weight :
4200kg

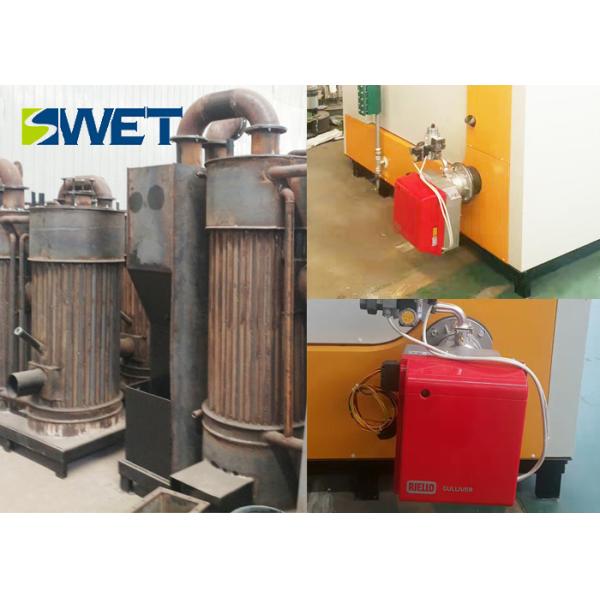

Burner :
Italy Riello
Description

High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation

1.Safe and reliable: gas steam generator water capacity of less than 30L, exempt from

examination and approval, the boiler using automatic microcomputer control system, equipment, automatic operation control, voltage display at a glance, with overpressure and water interlock protection, The steam generator feed system uses the design concept of the turntable oblique feed to completely eliminate the phenomenon that the biomass steam generator burns the fuel back to the fuel, and truly achieves the double safety of the biomass steam generator body control safety and the combustion system control safety .

2.Sophisticated and beauty: gas steam generator innovation and improvement to enhance the practicality, modeling novel, especially small size, easy to install without basic, product appearance, soft colors, and the environment coherent, full of artistic sense.

3.Efficient energy-saving: gas steam boiler generator using the most advanced micro-positive pressure combustion, a unique primary air heating, secondary air combustion configuration, making the combustion completely, the boiler body multi-return layout, compact structure, heating area sufficient, The furnace is very fast, 5 minutes pressure up to 0.7MPa; furnace selection of new refractories, enhanced combustion and can extend the life of the body, is the latest environmentally friendly energy-saving products.

High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation

Gas steam generator technical parameters

Gas steam generator technical parameter
Rated evaporati on

Rated pres

sure

Rated steam temp

erat ure

Feed water temp

erat ure

 Design thermal efficienc y Water capacit y Steam outlet water intake Drain valve Gas supply pressur e Gas pipe diamet er

Dime

nsions

 Shippin g weight Full load biomass consuption
L W H
Kg/h Mpa ℃ ℃ % L DN DN DN Kpa DN mm mm mm T Nm³/h
80 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1050 1000 1500 0.5 6.5(NG)
100 0.7 170℃ 20℃ 90% 27 15 15 20 2-3.5 20 1150 1100 1600 0.6 8.4(NG)
150 0.7 170℃ 20℃ 90% 27.6 15 15 20 2-3.5 20 1250 1200 1700 0.7 11.7(NG)
200 0.7 170℃ 20℃ 90% 27.6 20 15 25 2-3.5 20 1600 1500 2300 1.2 15.7(NG)
300 0.7 170℃ 20℃ 92% 28 32 15 25 3.5-5 20 1700 1600 2300 1.3 22.3(NG)
400 0.7 170℃ 20℃ 92% 28.6 32 15 25 3.5-5 32 2350 1750 2200 2.8 30.5(NG)
500 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500

2100/

2500

 3 37.9(NG)
600 0.7 170℃ 20℃ 92% 29 40 15 25 3.5-5 32 3200 1500 2500 4.2 46.9(NG)

High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation

High Efficiency 500kg / H Gas Steam Boiler For Food Industry , Free Installation
