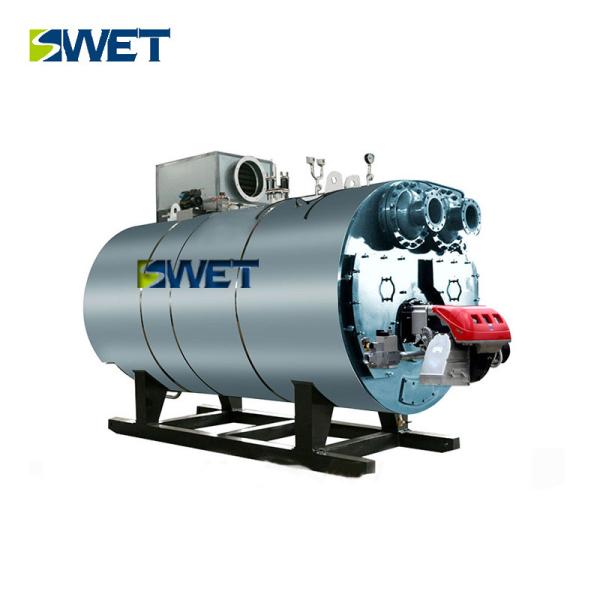

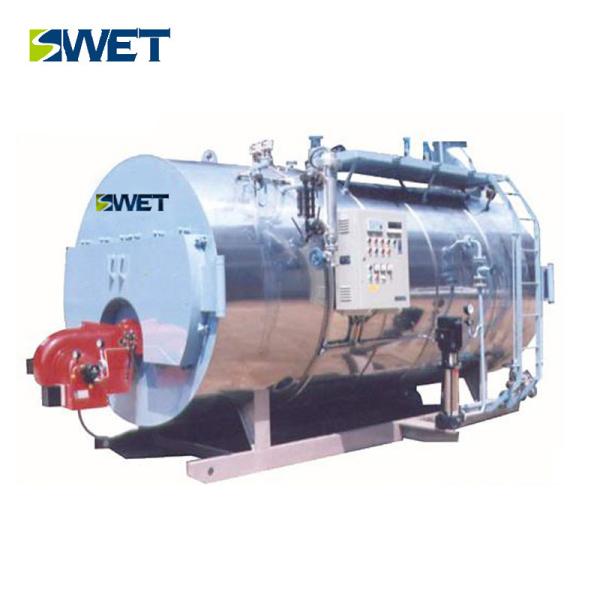

WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry
WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry
WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry
WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry
WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry
WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry
WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry
WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry
Specifications
Brand Name :
SWET
Model Number :
WNS
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
20000 Metric Ton/Metric Tons Per Month
Delivery Time :
20 days after receipt of deposit
Packaging Details :
Export neutral packaging
Feed temperature :
105 ℃
Design fuel :
natural gas,diesel,heavy oil
Thermal efficiency :
96.58%
Rated evaporation :
6t/h
Overall dimensions of transportation :
5470*2770*3195 (mm)
Steam temperature :
194℃
Feed water temperature :
20℃
Gas consumption :
163.72 NCubic metre/h
Description

WNS series diesel lpg natural gas biogas fired steam boiler for textile industry


1.High Quality and Reliable Oil Gas Burner.
High combustion efficiency and environmental protection.


2.Excellent coil design.
The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.


3.Large Diameter Furnace.
Large radiation heating area, increase thermal efficiency and reduce the NOx emission.


4.High Thermal Efficiency.
1)Adopts three pass heating system, improve the heat utilization efficiency.
2)Uses aluminium silicate board for heat preservation, high thermal shielding efficiency.
3)By equipping with economizer, make full use of the heat of flue gas.


5.High Quality boiler auxiliaries and multiple safety protection devices.
(pressure controller, pressure transmitter, water level alarm, safety valve, etc.)


6.Excellent Automatic System.
Adopts PLC full automatic intelligent control system, to ensure the safe operation.


7.Convenient Maintenance
1)There are maintenance holes on the boiler, convenient for boiler internal installation, inspection and clean.
2)The explosion proof equipment has the fire sight glass and inspection gallery, it is convenient for furnace checking and maintaining.

WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry

Technical Parameters

WNS series automatic gas (oil) steam energy saving boiler product selection form Model Unit WNS6-1.25(1.6)-Q(Y)
Rated capacity t/h 6
Working pressure Mpa 1.25/1.6
Steam temperature ℃ 194/204
Feed temperature ℃ 105
Testing efficiency ％ 96.58
Diesel consumption Kg/h 379.32
Gas consumption Nm³/h 433.51
Outline dimension mm(L*W*H) 5470*2770*3195

WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry

WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry

WNS Series Diesel Lpg Steam Boiler Natural Gas Biogas Fired For Textile Industry
