0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
0.7Mpa Biomass or pellet or coal Steam Boiler
Specifications
Brand Name :
SWET
Model Number :
YDZ-7009
Certification :
ISO 9001
Place of Origin :
HENAN CHINA
MOQ :
1 Set/Sets
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500 Set/Sets Per Year
Delivery Time :
15 work days
Packaging Details :
The biomass steam generator is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
1TPH
Steam pressure :
0.7Mpa
Rated steam temperature :
170℃
Thermal efficiency :
93%
Color :
Customer's Requirement
Design fuel :
Biomass
Warranty :
12 months
Weight :
6000kg
Dimension :
3000X2300X2500mm
Material :
boiler steel
Description

1.0Mpa Biomass or pellet or coal Steam Boiler


The biomass steam generator description

1. The steam generator fuels are renewable biomass, the running cost is one fifth of electric boiler, one third of oil boiler.

2. Efficient energy-saving: biomass steam generator using the most advanced micro-positive pressure combustion, a unique primary air heating, secondary air combustion configuration, making the combustion completely, the boiler body multi-return layout, compact structure, heating area sufficient, The furnace is very fast, 5 minutes pressure up to 0.7MPa

3. The steam generator high quality security controls pressure gauge, safety valve and pressure switch ensure product high quality and a long service life.

4. The steam generator Easy installation:no need to ask for a professional installation personnel to install, meanwhile saving a lot of installation materials.

The biomass steam generator technical parameters

Biomass steam generator technical
Rated evaporation Rated pressure Rated steam temperature Feed water temperature Design thermal efficiency Water capacity Steam outlet water intake Drain valve Dimensions Shipping weight Full load biomass consumption
L W H
Kg/h Mpa ℃ ℃ % L DN DN DN mm mm mm T Kg/h
80 0.7 170℃ 20℃ 90% 26.5 15 15 20 1600 900 1750 0.6 13.6
100 0.7 170℃ 20℃ 90% 26.8 15 15 20 1600 900 1900 0.65 16.4
150 0.7 170℃ 20℃ 90% 27 15 15 20 1650 900 1900 0.7 24.6
200 0.7 170℃ 20℃ 90% 27 20 15 25 2150 1000 2400 1.2 32.8
300 0.7 170℃ 20℃ 93% 28 25 15 25 2000 1400 2700 1.35 46.1
400 0.7 170℃ 20℃ 93% 28.7 32 15 25 2350 1750 2200 3 61.5
500 0.7 170℃ 20℃ 93% 29 32 1525 25 2500 1800 2500 4.1 76.8
600 0.7 170℃ 20℃ 93% 29.5 32 15 25 2500 1800 2500 4.3 80
1000 0.7 170℃ 20℃ 92% 29 32 15 25 3000 2300 2500 6 153.5

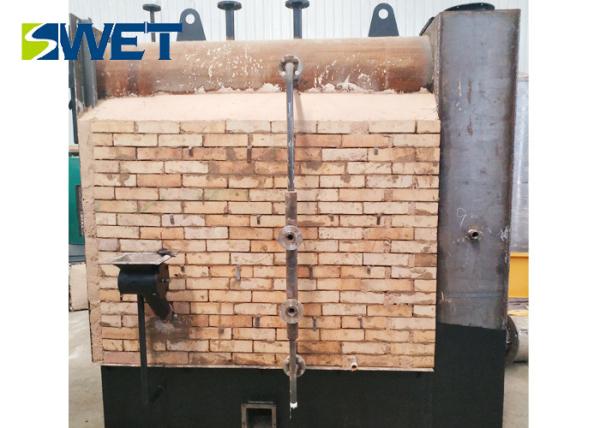

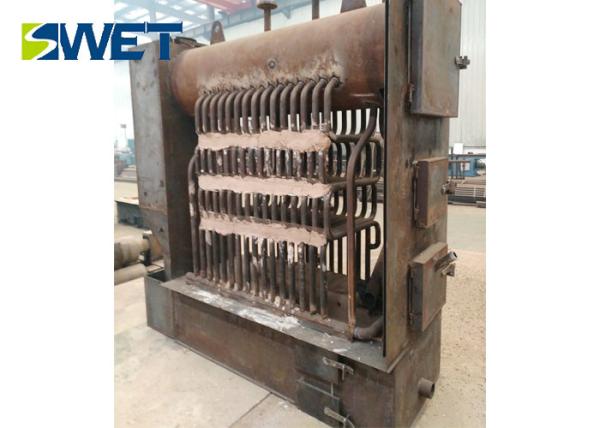

1TPH biomass steam generator production process:

0.7Mpa Biomass or pellet or coal Steam Boiler

1TPH biomass steam generator detail picture :


0.7Mpa Biomass or pellet or coal Steam Boiler

0.7Mpa Biomass or pellet or coal Steam Boiler

0.7Mpa Biomass or pellet or coal Steam Boiler
