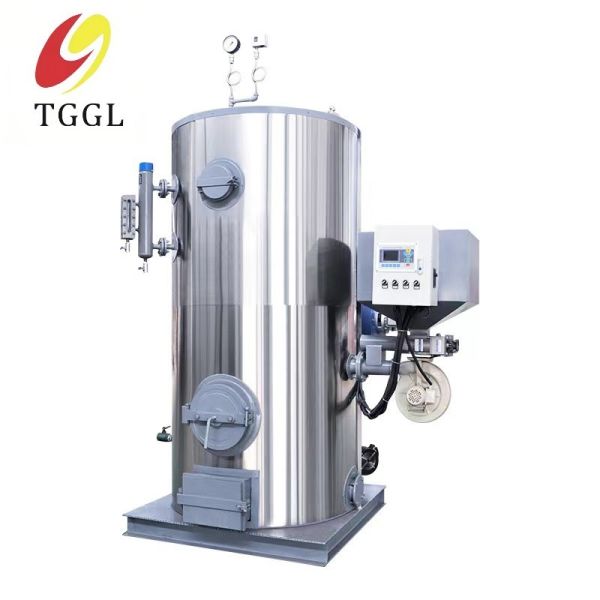

Small Energy-saving Steam Generator With Small Footprint And High Efficiency
Small Energy-saving Steam Generator With Small Footprint And High Efficiency
Small Energy-saving Steam Generator With Small Footprint And High Efficiency
Small Energy-saving Steam Generator With Small Footprint And High Efficiency
Small Energy-saving Steam Generator With Small Footprint And High Efficiency
Small Energy-saving Steam Generator With Small Footprint And High Efficiency
Small Energy-saving Steam Generator With Small Footprint And High Efficiency
Small Energy-saving Steam Generator With Small Footprint And High Efficiency
Small Energy-saving Steam Generator With Small Footprint And High Efficiency
Small Energy-saving Steam Generator With Small Footprint And High Efficiency
Specifications
Brand Name :
TAIGUO
Model Number :
LHS
Certification :
CE、EAC、SGS
Place of Origin :
Henan, China
MOQ :
1
Price :
US $3000.00-8000
Payment Terms :
L/C, T/T
Supply Ability :
100set
Delivery Time :
10-30 working days
Packaging Details :
Bulk, packaged
Pseudolaric acid :
Vertical Steam Generator
Rated Capacity :
0.05-2t/h
Rated Pressure :
0.4~0.7Mpa
Fuel type :
Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas
Customizable products :
yes
warranty period :
one year
Description

Products:

Our company produces fuel oil, gas steam generator is in the absorption of foreign advanced fuel oil, gas steam generator technology on the basis of combining the current domestic fuel oil, gas steam generator use of the actual situation, and developed into a new type of fuel oil, gas steam generator, and its comprehensive technical performance to reach the advanced level.
LHS type steam generator is mainly composed of pot shell, furnace gallbladder, tube plate, smoke pipe, burner and other components, the burner is installed in the left side of the steam generator.LHS type steam generator is mainly composed of pot shell, upper and lower furnace gallbladder, tube plate, smoke pipe, burner and other components, the burner is installed in front of the steam generator.

Product Advantages:

1. Adopt domestic and foreign advanced electronic detection circuit for automatic control, using the water level and water pump, burner interlocking control
2. Adopting electronic automatic ignition, mechanical high-pressure injection, air pressure high (low) protection (gas fuel), automatic control of oil temperature (heavy oil and residual oil), automatic proportional adjustment of air volume, and the control of its actions is completed by the program controller.
3. The steam generator covers a small area, installation and use than coal-fired steam generator is more convenient, safe, hygienic, widely used in factories, mines, troops, institutions, hospitals, schools, hotels, towns and villages and other units and family use, but also coal-fired steam generator replacement of the preferred products, is the heating, hot water use of the ideal product.

Technical Parameters:

Model

Rated

Capacity

(t/h)

Rated

Pressure

(Mpa)

Rated

Temperature

(C)

Maximum

transport weight

of boiler(t)

Maximum transport size of boiler( mm)

 Fuel Consumption

diesel oil (Kg/h)

Natural

gas (m³/h)

LPG (kg/h)
LHS0.05 0.05

0.4

151

 0.37 700× 650×1700 8.2 10.2 6.45
LHS0.1 0.1 0.59 800×750 ×2000 11.3 13.6 13
LHS0.2 0.2

0.4~0.7

151~170

 0.68 900× 850×2000 15.6 18.7 19.4
LHS0.3 0.3 0.83 1000×950×2000 22.5 26.8 25.6

LHS0.5

0.5

1.07

1100×1050×2000

32.5

36.8

32

LHS0.7

0.7

0.4~0.7

151~170

1.45

1200×1150×2200

40.6

48.5

50

LHS1

1

1.78

1300×1250×2450

45.9

65.3

65

LHS1.5

 1.5

1.9

1780×1600×3200

78.4

102.1

97

LHS2

2

5.2

2000×2000×4000

91.8

130.6

130

Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas

2 ,Parameter is for reference only, we can design the boilers based on customers’ needs.
