Horizontal 1-20t/H Chain Grate Biomass Steam Boiler For Aquaculture Industry
Horizontal 1-20t/H Chain Grate Biomass Steam Boiler For Aquaculture Industry
Horizontal 1-20t/H Chain Grate Biomass Steam Boiler For Aquaculture Industry
Horizontal 1-20t/H Chain Grate Biomass Steam Boiler For Aquaculture Industry
Horizontal 1-20t/H Chain Grate Biomass Steam Boiler For Aquaculture Industry
Horizontal 1-20t/H Chain Grate Biomass Steam Boiler For Aquaculture Industry
Specifications
Brand Name :
TAIGUO
Model Number :
DZL
Place of Origin :
Zhoukou in Henan Province
Certification :
CE\EAC\SGS\ISO19001\ISO24001\ISO45001
MOQ :
1
Price :
8000
Packaging Details :
To get ready,In bulk,
Delivery Time :
Deliver the goods at the agreed time
Supply Ability :
100set
Design Pressure :
1.0、1.25、1.6Mpa
Type :
Chain Grate Biomass Steam Boiler
Warranty Period :
12 Months
Control System :
PLC Intelligent Control System
Capacity :
1-20t/h
Fuel :
Biomass Fuels, Such As Rice Husks, Straw, Wood Chips, Sawdust, Palm Husks, Coal, Etc.
Design Efficiency :
≥83%
Mode of transport :
Land And Sea Transport
Description

Horizontal 1-20t/h chain grate biomass steam boiler industry aquaculture industry

Product Description:

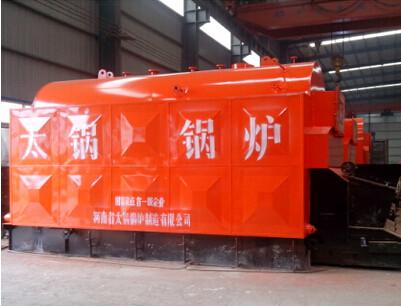

DZL chain biomass steam boiler is a horizontal biomass steam boiler. Its working pressure is 1.0, 1.25, 1.6Mpa, the design temperature range is 184,194,204℃, and equipped with PLC intelligent control system. Suitable for chemical, light industry, building materials, culture, foam, rubber processing, paper, wood processing, clothing, leather and other industrial applications. Horizontal biomass steam boiler adopts chain grate technology to ensure high thermal efficiency. Safe and reliable operation. It is also environmentally friendly, energy efficient and cost effective.

Features:

(1) The cylinder is composed of arch tube plate and threaded smoke pipe, so that the cylinder is changed from a quasi-steel body to a quasi-elastic structure, and the pulling member in the tube plate area is cancelled and the stress is reduced. The smoke pipe in the tube plate is changed from two return trips to one return trips, which solves the problem of tube plate cracks.
(2) Due to the arrangement of the rising pipe row at the lower part of the drum, the dead water area at the bottom of the drum is eliminated, so that the mud is not easy to deposit, and the high temperature area of the drum can be well cooled to prevent the lower part of the drum from bulging.
(3) The use of high efficiency heat transfer threaded smoke pipe, to obtain enhanced heat transfer effect, to achieve the boiler heating, pressure boost characteristics, improve the thermal efficiency of the boiler.
(4) Compact structure, compared with the same type of boiler, small size, saving boiler room infrastructure investment

Technical Parameters:

Parameter Value
Application Chemical Industry, Light Industry, Building Materials, Culture, Plastic Foam, Rubber Processing, Paper Making, Wood Processing, Clothing And Leather
Fuel Biomass Fuels, Such As Rice Husks, Straw, Wood Chips, Sawdust, Palm Husks, Coal, Etc.
Design Efficiency ≥83%
Structural form Horizontal
Type Chain Grate Biomass Steam Boiler
Control System PLC Intelligent Control System
Warranty Period 12 Months
Design Pressure 1.0,1.25,1.6Mpa
Mode of transport Land And Sea Transport
Capacity 1-20t/h

Applications:

Thai chain grate biomass steam boiler is suitable for chemical industry, light industry, building materials, culture, foam, rubber processing, paper making, wood processing, clothing, leather and other industries. The horizontal chain row steam boiler has passed CE, EAC, SGS, ISO19001, ISO24001, ISO45001 and other certifications, and the design temperature of the boiler is 184,194,204℃. Chain grate biomass steam boiler is the ideal solution for chemical industry, light industry, building materials, culture, foam, rubber processing, paper making, wood processing, clothing, leather and other industries.

Support and Services:

Chain Grate Biomass Steam Boiler Technical Support and Service

We provide comprehensive technical support and service for our Chain Grate Biomass Steam Boilers. Our team of professionals can help you with:

  • Installation and commissioning
  • Maintenance, repair, and optimization
  • Spare parts supply
  • Operation training and troubleshooting
  • Technical consultation

FAQ:

Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.

2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.

2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?

1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
