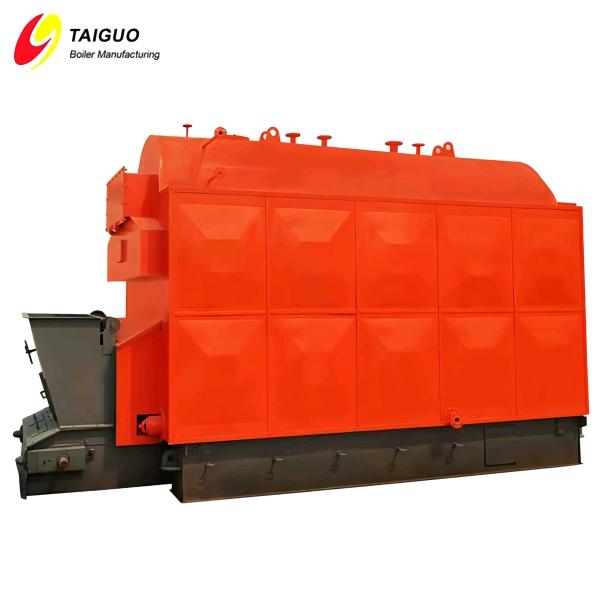

1 Ton Wood Waste Timber Biomass Steam Boiler Chain Grate Boiler
1 Ton Wood Waste Timber Biomass Steam Boiler Chain Grate Boiler
1 Ton Wood Waste Timber Biomass Steam Boiler Chain Grate Boiler
1 Ton Wood Waste Timber Biomass Steam Boiler Chain Grate Boiler
Specifications
Brand Name :
TAIGUO
Model Number :
DZL
Certification :
SGS EAC CE ISO90001
Place of Origin :
HENAN
MOQ :
1
Price :
USB 5000-9500
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
15-25DAYS
Supply Ability :
100
Packaging Details :
Rectify
Capacity :
1-20t/h
Control System :
PLC/Manual/Automatic
Design Efficiency :
83%
Design Structure :
Horizontal/Vertical
Efficiency :
80-90%
Emission Standard :
Class I/Class II/Class III
Fuel :
Coal/Biomass
Fuel Consumption :
150-280Kg/h
Installation :
Packaged/Field Assembly
Model :
DZL coal biomass steam boiler
Pressure :
1.0-2.5Mpa
Temperature :
184-350℃
Warranty :
1 Year
Description

1 Ton Wood Waste Timber Biomass Steam Boiler Chain Grate Boiler

DZL series coal biomass fired boiler is single drum water tube and fire tube boiler, combustion equipment is chain grate.Water wall tubes at left and right sides of furnace are the radiated heating area. the two wings at furnace and screw fire tube in the drum are convection heating are.This boiler uses the upper drum, water wall tube and head are in symmetrical arrangement mode.This furnace structure in reasonable arrangement and high efficiency.
This series boiler adopts several environmental protect measures (bag dust collector, double towers desulfurization, etc.) to meet the national emission requirement.

Product advantages

1.Spirally corrugated fire tubes

2.New furnace arch with upside down "α"flue gas flow

3.Steam-Water seperating equipment

4.adopt the unique backwater ejection technology

Product parameters

Model

item

DZL1

DZL2

DZL3

DZL4

DZL6

DZL8

DZL10

DZL12

DZL15

Rated evaporation

capacity(t/h)

 1 2 3 4 6 8 10 12 15
Rated pressure(Mpa )

0 .7/ 1 .0/

1 .25

0 .7/ 1 .0/

1 .25

0 .7/ 1 .0/

1 .25

 1 .25/ 1 .6 1 .25/ 1 .6 1 .25/ 1 .6 1 .25/ 1 .6 1 .25/ 1 .6 1 .25/ 1 .6
Rated steam temperat ure( ℃ )

170/ 184/

194

170/ 184/

194

170/ 184

/ 194

 194/204 194/204 194/204 190/204 194/204 194/204
Feed water temperat ure( ℃ ) 20 20 20 20 20 20 20 20 20
Heating Area( m) Body ~33 ~50 ~75 ~100 ~170 ~200 ~250 ~340 ~415
Economizer 20 .7 25 .3 28 .6 33 . 12 87 .2 98 145 168 189
Effective area of garte ( m) 2 .22 4 . 1 5 .85 6.2 7 .95 9 .75 10 .77 13 .4 16 .6
Fuel type Biomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell

Fuel

Consumption

(kg/h)

 ~200 ~400 ~600 ~800 ~1000 ~1200 ~1400 ~1600 ~1800
Flue gas temperat ure( ℃ ) ~150 ~150 ~150 ~150 ~150 ~150 ~150 ~150 ~150
T hemal efficiency(%) ~82 ~82 ~82 ~82 ~82 ~82 ~82 ~82 ~82

Weight of biggest

part for

t ransportation(t)

 17 18 .5 20 25 35 45 58 64 77
Overall dimension of biggest part for t ransportation( m)

5 . 1*2 .2

*3

5 .5*2 .3

*3 .3

6 .4*2 .

4*3 .5

6 .6*2 .6

*3 .6

8 . 1*2 .9

*3 .8

8 .3*3 .

1 *4 .0

8 .6*3 .2

*4 .2

 9 .8*4 .2 *4 .5

12 .9*4

*7 .5

1 Ton Wood Waste Timber Biomass Steam Boiler Chain Grate Boiler

1 Ton Wood Waste Timber Biomass Steam Boiler Chain Grate Boiler1 Ton Wood Waste Timber Biomass Steam Boiler Chain Grate Boiler

FAQ

Q1: How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet

Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
