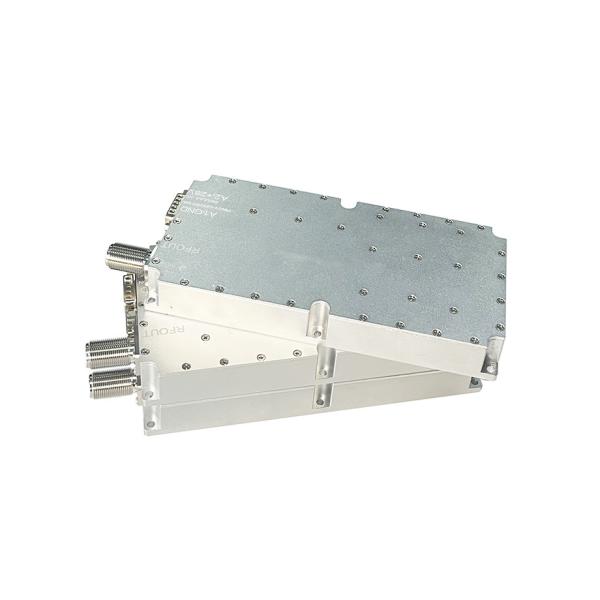

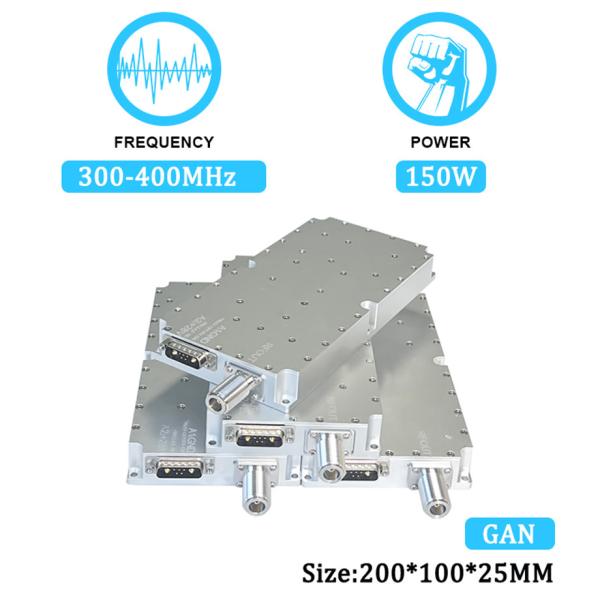

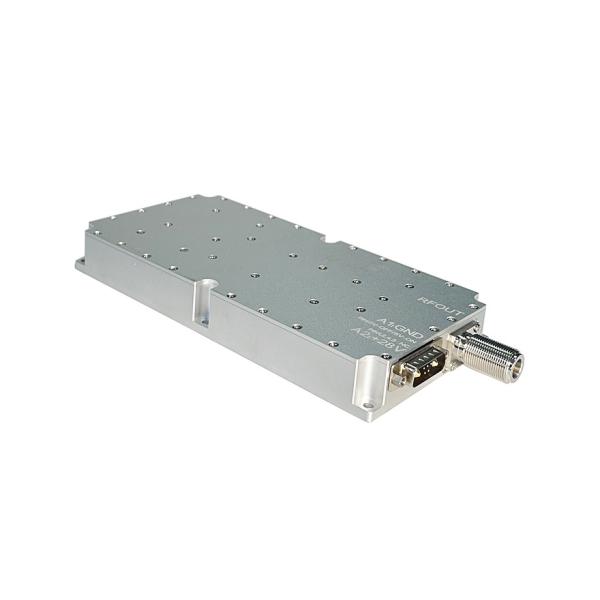

150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
Specifications
Brand Name :
OEM/ODM
Model Number :
JYT-M300-150
Certification :
CE
Place of Origin :
China
MOQ :
1Pc
Price :
Negotiate
Payment Terms :
T/T
Delivery Time :
1-3 working days after payment received
Packaging Details :
Neutral Package
Description

Product Parameters

150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage

1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 300-400 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 150KHz
Output Power (Max) ≥52dBm(150W) 100W
Gain (Max) 50±1 dB
Ripple in Band ≤ 5dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 0V-OFF/5V-ON
Output VSWR ≤3
Working current@+28V dc ≤14A
High Low Temperature test Working Temperature -20~＋65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Port 7W2 A1:GND 24-28V; GND
A2:+28V 24-28V; GND
PIN3:Enable control,0V-OFF/5V-ON
PIN1,2,4,5 NC
RF output connector SMA-Female
LED indicator light Power ON/OFF
Dimension 200*100*25 mm
Installation Dimension 96*96*92*25 mm
Screw Size 6-Ø3.20 mm
Weight 900g

2.Size

150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector

Detailed Photos

150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector

150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector

150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector

150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector

150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector

Spectrum data


150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector

150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector

150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector


150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector
150W 300-400MHz PA Power Amplifier Signal Blocking Device Anti Drone Fpv Uav Drones Module with GAN and Isolation Protector

For more details,Please don't hesitate to send us your inquiry.
