Specifications
Brand Name :
OEM/ODM
Model Number :
JYT-G2.4-150
Certification :
CE
Place of Origin :
China
MOQ :
1Pc
Price :
Negotiate
Payment Terms :
T/T
Delivery Time :
1-3 working days after payment received
Packaging Details :
Neutral Package
Description

Product Parameters

2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector

Main Components :

1, Adjustable Bandwidth 2, Adjustable Bandwidth 3, Adjustable Driver Tube Voltage

4, Tube Voltage 5, Adjustable GAN Voltage 6, GAN Voltage

1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 2300-2500 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 150KHz
Output Power (Max) ≥52dBm(150W) 100W
Gain (Max) 50±1 dB
Ripple in Band ≤ 5dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 0V-OFF/5V-ON
Output VSWR ≤3
Working current@+28V dc ≤14A
High Low Temperature test Working Temperature -20~＋65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Port 7W2 A1:GND 24-28V; GND
A2:+28V 24-28V; GND
PIN3:Enable control,0V-OFF/5V-ON
PIN1,2,4,5 NC
RF output connector SMA-Female
LED indicator light Power ON/OFF

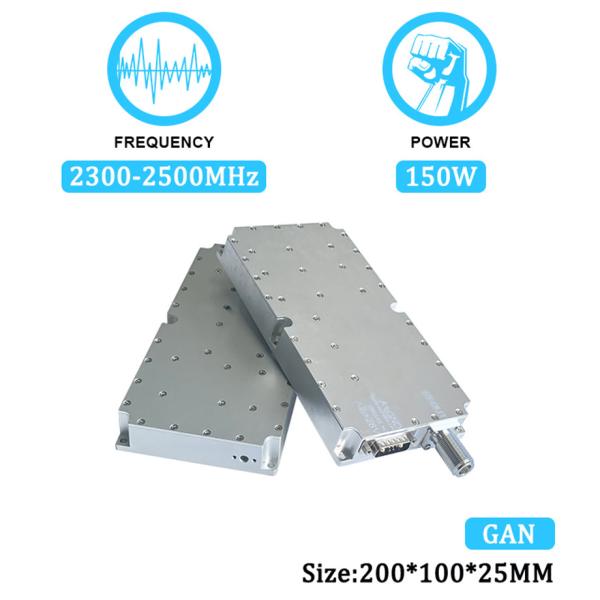

Dimension 200*100*25 mm
Installation Dimension 96*96*92*25 mm
Screw Size 6-Ø3.20 mm
Weight 900g

2.Size

2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector

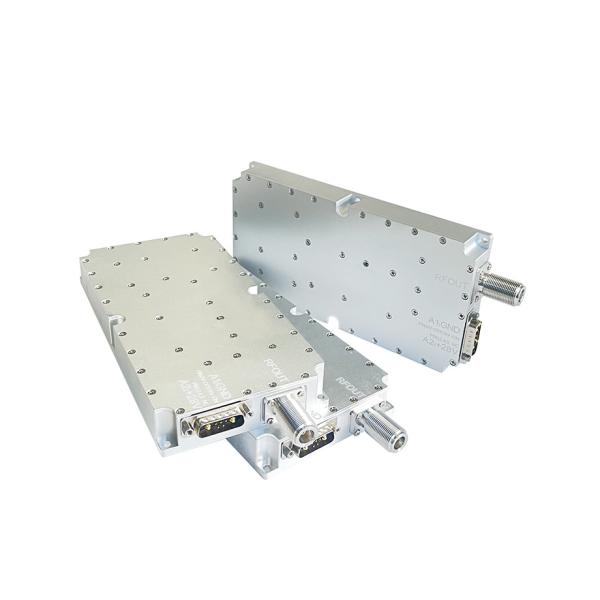

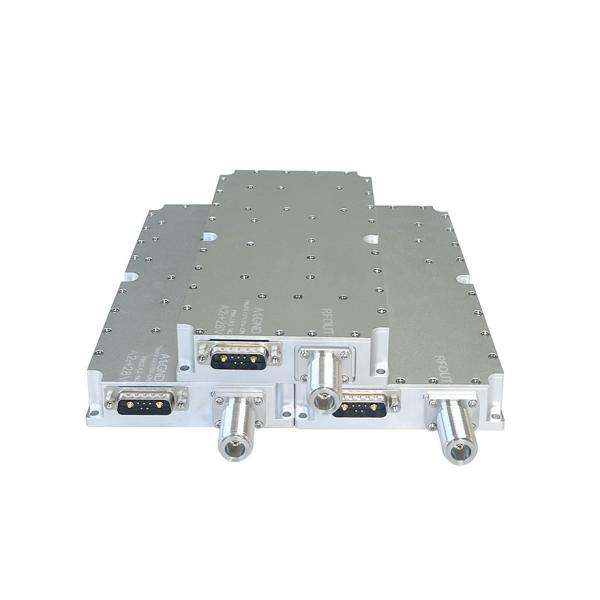

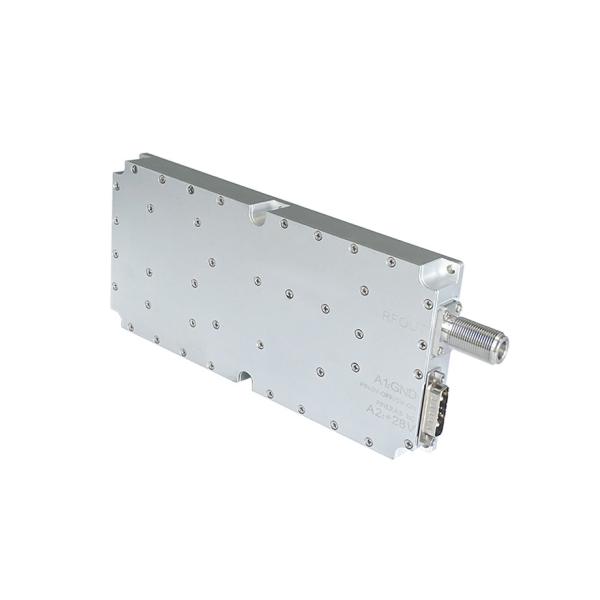

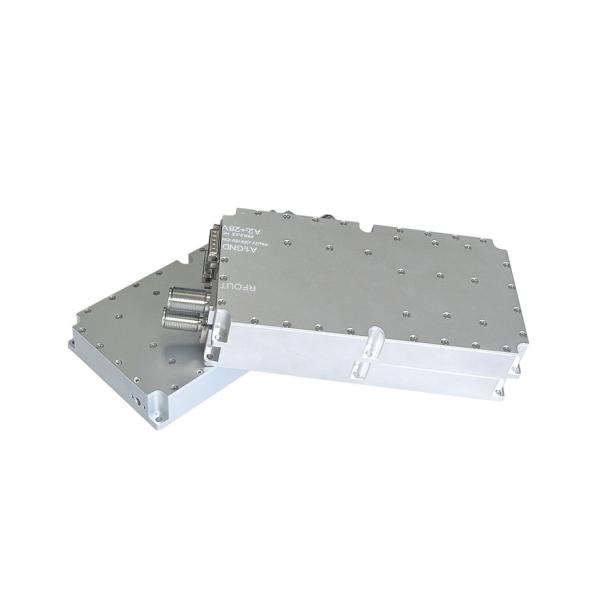

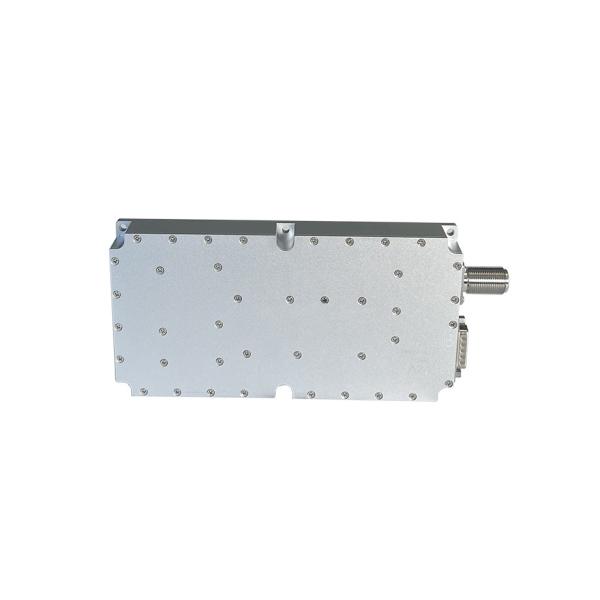

Detailed Photos

2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector

Spectrum data


2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector

2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector

2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector


2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector
2.4G 4G 150W 2300-2500MHz GaN RF Power Amplifier Drone Counter Module for Anti Drone System Mavic3 Fpv Djis Autel Anti Fpv With Isolation Protector

For more details,Please don't hesitate to send us your inquiry.
