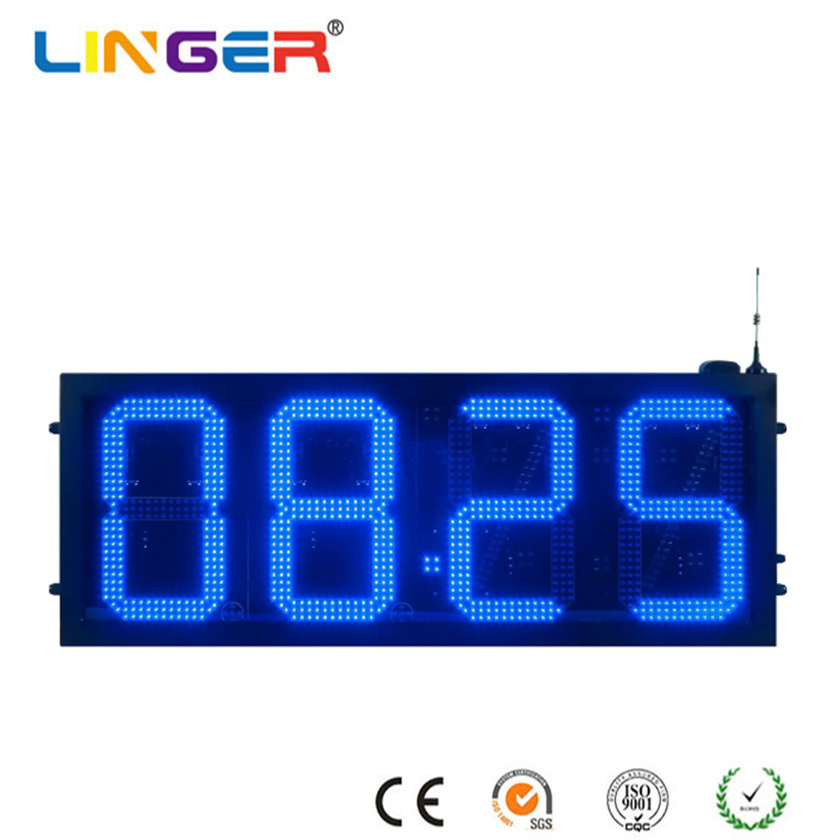

IRON BOX DESIGN
Epoxy spray coating offers numerous advantages for applications such as oil price display frames. It provides exceptional durability, resisting scratches, impacts, and daily wear to ensure long-lasting protection. The coating also delivers superior corrosion resistance, shielding against moisture, chemicals, and harsh environmental conditions, making it suitable for both indoor and outdoor use. With a smooth, high-gloss finish, it enhances aesthetic appeal while allowing customizable colors to match branding requirements. Additionally, epoxy spray coating exhibits strong adhesion to metals and plastics, preventing peeling or flaking over time. Its heat and UV resistance ensures stability under sunlight and high temperatures, preventing discoloration or degradation. Easy to clean and maintain, it repels oil stains and fingerprints, reducing upkeep efforts. Overall, this cost-effective solution extends product lifespan, minimizing replacement costs and delivering reliable performance in demanding settings.
COLOR | BRIGHTNESS | WAVE LENGHT | VOLTAGE | VIEWING ANGLE |
RED | 5000mcd | 620-630 | 1.9V-2.4V | 60°/120°/180° |
YELLOW | 4000mcd | 585-590 | 1.9V-2.2V | |
GREEN | 10000mcd | 515-525 | 3.0V-3.4V | |
BLUE | 8000mcd | 515-525 | 2.5V-3.0V | |
WHITE | 13000mcd | 0 | 3.0V-3.4V |
DATA SHEET
Digit Color Option (Single Color) | Red /Green/Yellow/White/Blue |
Digit Size Option | 4''/6''/8''/10''/12''/13''/15''/16''/20''/24''/30'' |
Price Format | 8.889/ 8.889/10 / 8.88/ 88.88/ 888.8/888.88... |
Product Option | With Iron Steel Cabinet or Only Component |
Led Brightness | 4000mcd - 9000mcd |
Led Life | > 100000 hours |
Digit PCB | FR4 |
Digit PCB Thickness | 1.6mm |
Wireless Controller | Wireless Contrller Remote / PC software |
Communication Option | RF (470mhz / 433mhz) / RS485 |
Wireless Range | >250meters |
Brightness Control | 6 Levels |
Wireless Controller Rmote Power | 1.5V AAA Alkaline battery / 9V Battery |
Front Acrylic Board | Thickness 5mm -9mm |
Iron Cabinet | Thickness 1.2mm Steel Plate |
Heat dissipation | With Fan |
Input Voltage | AC110V ~ AC220V 50/60HZ |
Digit DC Power | DC5V / DC12V |
Power Consumption | < 60Watts |
Painting of Iron Case | Outdoor anti-fading and anti-rust spray paint |
Operating Temperature | -20°C to +80°C |
Waterproof | IP67 |
Warranty | 1-2Years |
FAQ
Q1: Why is epoxy spray coating suitable for oil price display frames?
A1: It offers excellent durability against scratches, impacts, and weather exposure, ensuring the display frame remains intact in high-traffic or outdoor environments.
Q2: How does epoxy coating improve corrosion resistance?
A2: The epoxy layer acts as a barrier against moisture, fuel spills, and chemicals, preventing rust and degradation—critical for gas station displays exposed to harsh conditions.
Q3: What are the aesthetic benefits of epoxy-coated display frames?
A3: It provides a smooth, glossy finish with customizable colors, enhancing visibility and professionalism while resisting stains and fingerprints for easier maintenance.
Advantages of Epoxy Spray Coating for Oil Price Display Frames
