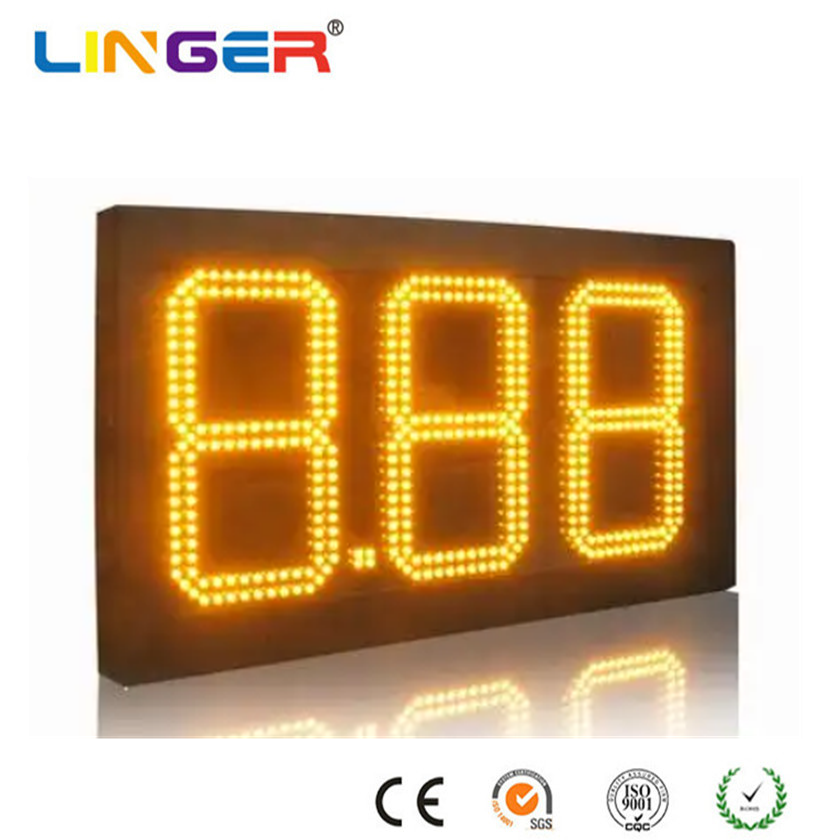

High-Performance Dual-Layer Protection
The next-generation LED gas price signs feature innovative dual-layer protection, combining impact-resistant polycarbonate (PC) with UV-blocking acrylic (PMMA) for unmatched durability in harsh environments. The outer PC layer absorbs physical shocks from hail, debris, or vandalism, while the inner PMMA layer provides 99% UV filtration to prevent color fading and yellowing—ensuring 10+ years of vibrant display clarity.
| COLOR | BRIGHTNESS | WAVE LENGHT | VOLTAGE | VIEWING ANGLE |
| RED | 5000mcd | 620-630 | 1.9V-2.4V | 60°/120°/180° |
| YELLOW | 4000mcd | 585-590 | 1.9V-2.2V | |
| GREEN | 10000mcd | 515-525 | 3.0V-3.4V | |
| BLUE | 8000mcd | 515-525 | 2.5V-3.0V | |
| WHITE | 13000mcd | 0 | 3.0V-3.4V |
DATA SHEET
| Digit Color Option (Single Color) | Red /Green/Yellow/White/Blue |
| Digit Size Option | 4''/6''/8''/10''/12''/13''/15''/16''/20''/24''/30'' |
| Price Format | 8.889/ 8.889/10 / 8.88/ 88.88/ 888.8/888.88... |
| Product Option | With Iron Steel Cabinet or Only Component |
| Led Brightness | 4000mcd - 9000mcd |
| Led Life | > 100000 hours |
| Digit PCB | FR4 |
| Digit PCB Thickness | 1.6mm |
| Wireless Controller | Wireless Contrller Remote / PC software |
| Communication Option | RF (470mhz / 433mhz) / RS485 |
| Wireless Range | >250meters |
| Brightness Control | 6 Levels |
| Wireless Controller Rmote Power | 1.5V AAA Alkaline battery / 9V Battery |
| Front Acrylic Board | Thickness 5mm -9mm |
| Iron Cabinet | Thickness 1.2mm Steel Plate |
| Heat dissipation | With Fan |
| Input Voltage | AC110V ~ AC220V 50/60HZ |
| Digit DC Power | DC5V / DC12V |
| Power Consumption | < 60Watts |
| Painting of Iron Case | Outdoor anti-fading and anti-rust spray paint |
| Operating Temperature | -20°C to +80°C |
| Waterproof | IP67 |
| Warranty | 1-2Years |
FAQ
Q1: What makes the dual-layer protection system superior to traditional signs?
A1: Our innovative design combines an outer shock-absorbing polycarbonate layer (for impact resistance) with an inner UV-blocking acrylic core (for color preservation). This dual approach provides 360° defense against both physical damage and sun degradation—unlike single-material signs that compromise on one protection type.
Q2: How does this sign perform in extreme weather?
A2: Built for global climates, it operates in -20°C to 70°C with IP63 waterproof sealing. The materials resist thermal expansion/contraction, while the UV layer prevents brittleness over time—ensuring reliability in deserts, coastal areas, or freezing zones.
Q3: Does the dual-layer design affect visibility?
A3: Not at all! The optical-grade acrylic ensures 92%+ light transmission, while our 8000-nit LEDs and anti-reflective coating deliver crisp visibility day/night. The layers are precision-bonded to eliminate glare or distortion.
Q4: Why is this sign a cost-saving choice for gas stations?
A4: The 10-year lifespan (vs. 3-5 years for standard signs) and zero need for protective coatings slash long-term maintenance costs. Fewer replacements mean less downtime and higher ROI.
High-Performance Dual-Layer Protection Advantage
