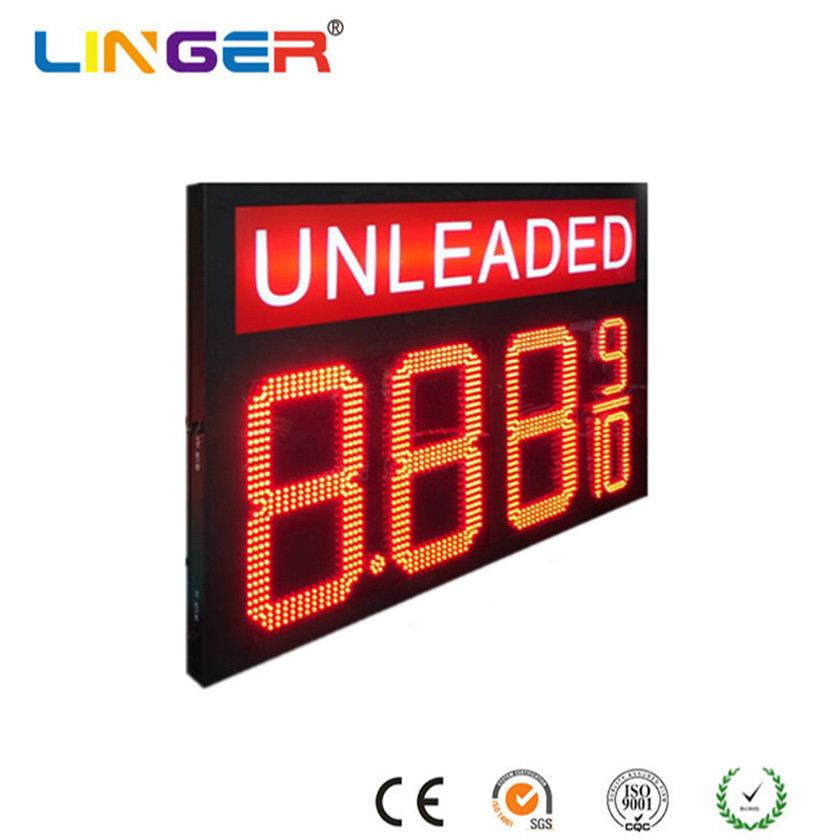

PCB SPECIFICATION

PCB Material FR4
2.0mm thickness
Copper weight 1oz
Thermal Stress > 288 Celsius
Dimensional Stability, E-2/150
Flammability Classification UL94 V0
Water Absorption E-1/105 0.10%
Peel Strength After thermal stress 11lb./in after 10s/288 Deg.C
Flexural Strength 100,000 lbf/in^2 lengthwise, 75,000 lbf/in^2 crosswise
Resistivity after damp heat volume 10^8 M ohms cm
Resistivity after damp heat surface 10^8 M ohms
Dielectric breakdown parallel to laminate >60KV
Dielectric constant @ 1MHz 4.7
Dissipation factor @ 1MHz 0.014
Q-resonance @ 1MHz >75
Q-resonance @ 50MHz >95
Arc resistance 125s
Glass transition temperature 135 Deg. C
Temperature index 130 Deg.C
Specific gravity 1.8-1.9
Rockwell hardness (M scale) 110
Thermal conductivity 2.2-2.5 cal/h. cm Deg C

HANDHELD REMOTE SPECIFICATION

Operating frequency 470mhz or 433mhz

Power requirement Alkaline battery.

Maximum 32 panels can be controlled with one remote.
Maximum 8 products can be controlled with one remote.
Ingress Protection rating IP23.
Operating temperature range -20°C to +80°C or 4°F to 176°F.
Operational range 250m+.
Weight 100 grams.

PARAMETER

TYPE OF LED

High intensity 5000-8000mcd UV protected LED.
Ultra-wide fisheye light emitting diode which enables clear visibility in direct sunlight in any viewing angle.
Customized LED light-emitting diodes specifically designed for the USA market
100,000 hours design life
5mm Oval Mist Screen Master Series LED Diodes
LED View Angle : 150°

ADVANTAGES OF LED DIP LAMPS

• Higher Brightness & Luminous Intensity
• Stronger Light Penetration
• Better Heat Dissipation & Durability
• Higher Voltage/Current Tolerance
• Stronger Mechanical Stability
• Easier Manual Repair & Replacement
• Lower Cost for High-Power Applications
