Vertical Industrial Electric Steam Generator , Small Steam Generators Electric
Vertical Industrial Electric Steam Generator , Small Steam Generators Electric
Vertical Industrial Electric Steam Generator , Small Steam Generators Electric
Vertical Industrial Electric Steam Generator , Small Steam Generators Electric
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
16-100kg/h
Input power :
12-54KW
Input current :
18-81A
Main steam valve diameter :
15/25DN
Blowoff valve diameter :
15/20DN
Weight :
95-180kg
Description

Industrial Vertical Small Electric Heating Steam Generator For sale

Product introduction

  • It is a non-inspection type product, with electricity as a heat source, environmentally friendly, and non-polluting.

  • The water volume of the boiler is less than 30L, the whole body has a small footprint and is easy to install.

  • The heating tube selected by it has strong corrosion resistance and can be customized with high-grade custom nickel-based alloy steel, which is more resistant to corrosion.

  • Can be upgraded to PID pressure control regulator, suitable for medium deionized water.

  • The automatic control interface is fully upgraded, showing the running status, built-in multiple operation protection, safe and reliable.


Parameter

Model LDR0.016-0.7 LDR0.025-0.7 LDR0.035-0.7 LDR0.05-0.7 LDR0.06-0.7 LDR0.08-0.7 LDR0.1-0.7
Project UNIT
Rated evaporation Kg/h 16 25 35 50 60 80 100
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Saturated steam temperature ℃ 170 170 170 170 170 170 170
Input power KW 12 18 27 36 40 54 72
Input current A 18 27 41 54 60 81 108
Rated voltage V 3N AC 50Hz 380V
a Main steam valve diameter DN 15 15 15 15 15 15 25
b Safety valve diameter DN 15 15 15 15 15 15 25
c Inlet diamater DN 15 15 15 15 15 15 15
d Blowoff valve diameter DN 15 15 15 15 15 15 20

Overall size		 L mm 600 680 680 750 750 750 750
W mm 540 600 600 600 680 680 660
H mm 800 950 950 1200 1200 1200 1450
Weight kg 95 105 115 130 150 160 180

Advantage

1 . The boiler water volume is less than 30L


2 . No need to file and check


3 . The heating tube is made of stainless steel seamless tube


4 . The controller can group automatic cutting and heating tubes


5 . Automation control


6 . Easy to install

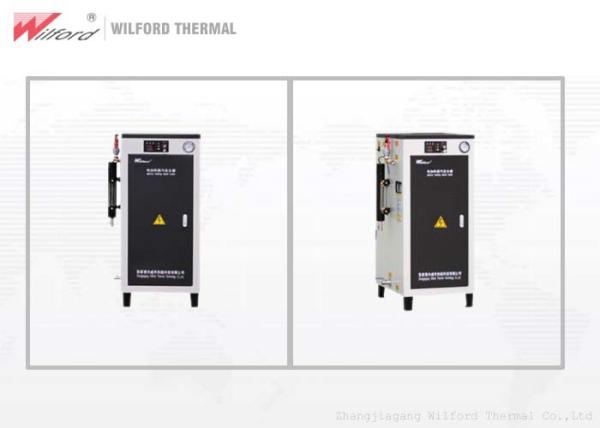

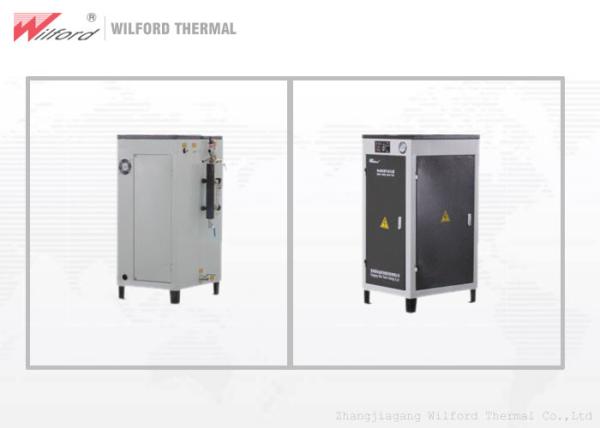

Product picture

Vertical Industrial Electric Steam Generator , Small Steam Generators Electric

Project case diagram

Vertical Industrial Electric Steam Generator , Small Steam Generators Electric
