Washing Ironing Industrial Electric Steam Generator , Full Automatic Steam Generator
Washing Ironing Industrial Electric Steam Generator , Full Automatic Steam Generator
Washing Ironing Industrial Electric Steam Generator , Full Automatic Steam Generator
Washing Ironing Industrial Electric Steam Generator , Full Automatic Steam Generator
Washing Ironing Industrial Electric Steam Generator , Full Automatic Steam Generator
Washing Ironing Industrial Electric Steam Generator , Full Automatic Steam Generator
Specifications
Brand Name :
WILFORD
Model Number :
LDR
Certification :
CE
Place of Origin :
China
MOQ :
1 stand
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
25 stand/stands per Month
Delivery Time :
15-20 working days
Packaging Details :
Packing in wooden box
Rated evaporation :
25-100kg/h
Input power :
18-72KW
Input current :
27-108A
Rated voltage :
3N AC 50HZ 380V
Overall size :
Different
Weight :
105-180kg
Description

Full Automatic Electric Steam Generator For washing Ironing Industry

Product introduction

1 . As a test-free product, the procedure is simple.


2 . The water capacity is less than 30L, the steam quality is good, and the usability is strong.


3 . It can realize automatic water level control and pressure control for continuous and uninterrupted work.

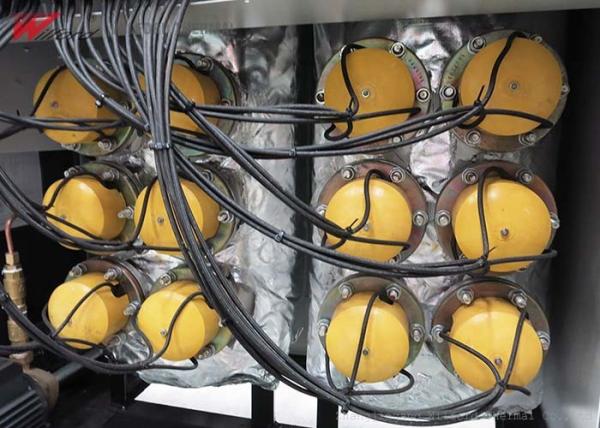

4 . The use of high quality heating tubes and controllers extends the life of the equipment.


5 . It is suitable for various working conditions and can achieve constant output of pressure.


6 . The entire device is compact, easy to move and install.


Parameter

Model LDR0.025-0.7 LDR0.035-0.7 LDR0.05-0.7 LDR0.06-0.7 LDR0.08-0.7 LDR0.1-0.7
Project UNIT
Rated evaporation Kg/h 25 35 50 60 80 100
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7
Saturated steam temperature ℃ 170 170 170 170 170 170
Input power KW 18 27 36 40 54 72
Input current A 27 41 54 60 81 108
Rated voltage V 3N AC 50Hz 380V
a Main steam valve diameter DN 15 15 15 15 15 25
b Safety valve diameter DN 15 15 15 15 15 25
c Inlet diamater DN 15 15 15 15 15 15
d Blowoff valve diameter DN 15 15 15 15 15 20

Overall size		 L mm 680 680 750 750 750 750
W mm 600 600 600 680 680 660
H mm 950 950 1200 1200 1200 1450
Weight kg 105 115 130 150 160 180

Advantage

  • No pollution, environmental protection

  • Use high quality heating tube

  • The controller is fully functional

  • Suitable for medium deionized water

  • Operation to achieve automation, security

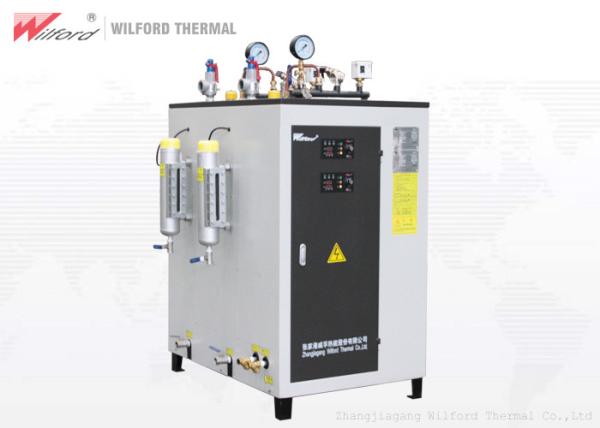

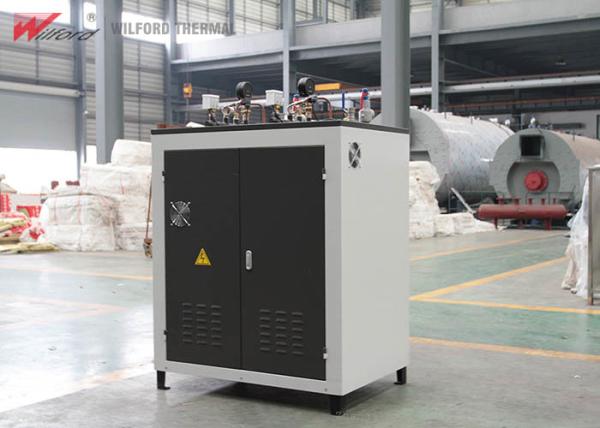

Product picture

Washing Ironing Industrial Electric Steam Generator , Full Automatic Steam Generator

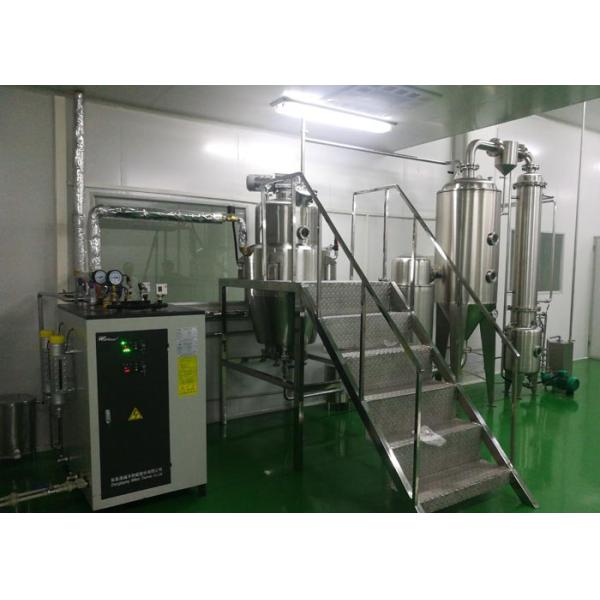

Project case diagram

Washing Ironing Industrial Electric Steam Generator , Full Automatic Steam Generator
