Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications
Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications
Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications
Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications
Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications
Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications
Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications
Heavy Duty Serrated Steel Grating with Galvanized Surface for Industrial Applications
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

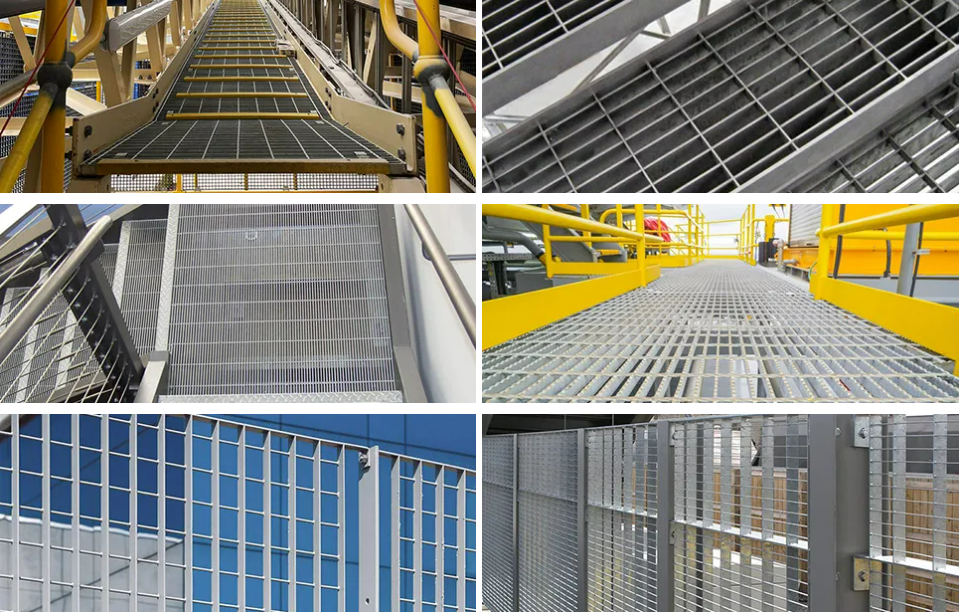

Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options. With a wide range of styles and sizes, steel grating serves versatile applications in everyday life, including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty constructions.


Learn more about the main components of metal bar grating
Span: Total span.
Width: Panel width.
Bearing Bars: Load carrying the main element.
Bearing Bars Spacing: Measure from center-to-center of the bearing bars in 1/16″ increments. Standard spacing for industrial flooring is 19/16″(1-3/16″) in the center. Other popular spacings are 15/16″, 11/16″, 1/2″, and 7/16″ on center.
Bearing Bars Depth: Ranges from 3/4″ to 7″ depending on anticipated loads.
Bearing Bars Thickness: Ranges from 1/8″ to 1/2″ depending on anticipated loads.
Cross Bars: Used to Secure the position of bearing bars.
Cross Bar Spacing: Measured from center-to-center of cross bars in 1″ increments. Standard spacing is 4″ or 2″ on center.


Material
Carbon Steel, Stainless Steel, Aluminum
Surface treatment
Hot dipped galvanized, Spray painting, Polished and powder coated
Bearing bar type
Plain(Flat) bar, Serrated bar, I-bar, etc.
Common specification
Bearing bar pitch (mm)
Cross bar pitch (mm)
Bearing bar size
(WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch)
30
100
WSG_203/253/323/403/205/325/405/455/505/555_30_100

50
WSG_203/253/323/403/205/325/405/455/505/555_30_50
40
100
WSG_203/253/323/403/205/325/405/455/505/555_40_100

50
WSG_203/253/323/403/205/325/405/455/505/555_40_50
60
50
WSG_203/253/323/403/205/325/405/455/505/555_60_50
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.
