Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options. With a wide range of styles and sizes, steel grating serves versatile applications in everyday life, including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty constructions.


Welded bar grating is also called metal open bar grating. Welded bar grating, also known as metal open bar grating, comes in two types: smooth and serrated. Smooth, or plain steel bar grating, is more popular, but serrated grating offers better skid resistance.


Made from low carbon steel, stainless steel, or aluminum, is created by bonding slotted bars under hydraulic pressure. It's strong, durable, and widely used in industrial and commercial applications like stair treads, platforms, walkways, and covers. Serrated surfaces enhance anti-slip properties.


Swage locked grating, mainly made of aluminum or stainless steel bars, is formed by inserting cross bars into pre-punched bearing bars and locking them under hydraulic pressure. It comes in three bearing bar types: rectangular, T, and I bars, with I bars being lighter and more affordable.

Heavy-Duty Galvanized Steel Grating with Easy Installation for Industrial and Commercial Use

Material
Carbon Steel, Stainless Steel, Aluminum
Surface treatment
Hot dipped galvanized, Spray painting, Polished and powder coated
Bearing bar type
Plain(Flat) bar, Serrated bar, I-bar, etc.

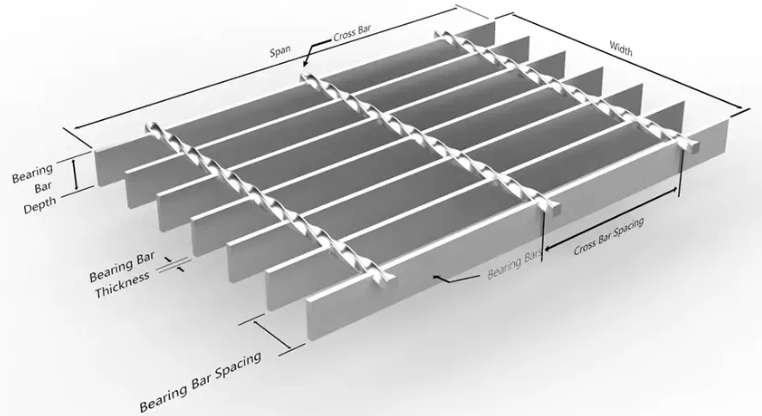

Common specification
Bearing bar pitch (mm)
Cross bar pitch (mm)
Bearing bar size
(WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch)
30
100
WSG_203/253/323/403/205/325/405/455/505/555_30_100

50
WSG_203/253/323/403/205/325/405/455/505/555_30_50
40
100
WSG_203/253/323/403/205/325/405/455/505/555_40_100

50
WSG_203/253/323/403/205/325/405/455/505/555_40_50
60
50
WSG_203/253/323/403/205/325/405/455/505/555_60_50
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.
