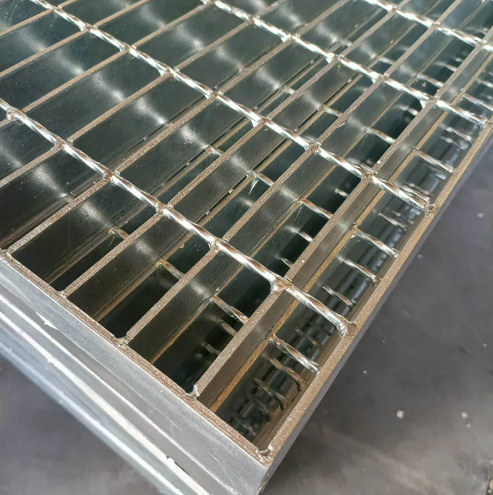

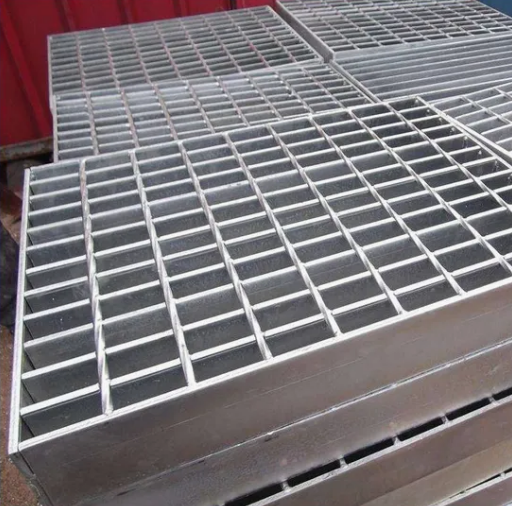

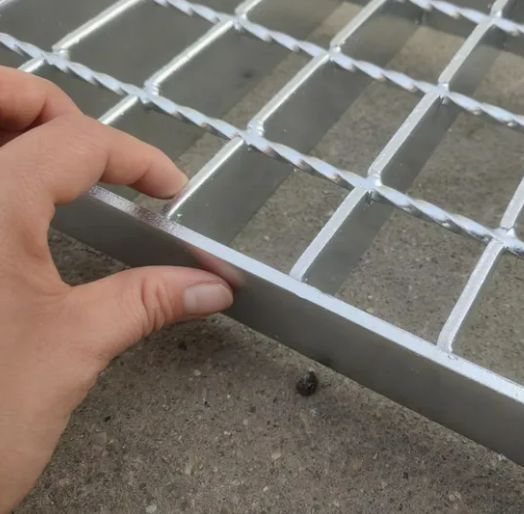

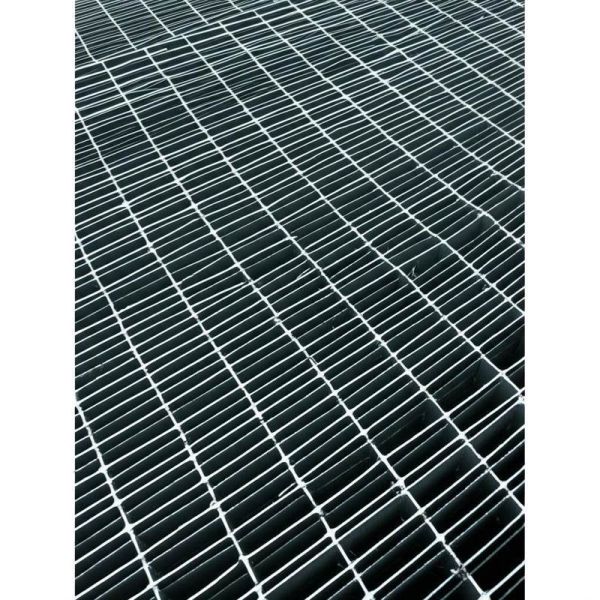

Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring
Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring
Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring
Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring
Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring
Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring
Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring
Hot Dip Galvanized Steel Bar Grating with Serrated Surface and 25x5 Bearing Bar for Heavy Duty Flooring
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options. With a wide range of styles and sizes, steel grating serves versatile applications in everyday life, including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty constructions.


Item Description
Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,

50x5, 65x5, 75x6, 75x10,100x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc.

US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16',

1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8',

1 1/2'x1/8' etc.
Bearing Bar Pitch 12.5, 15, 20, 25, 30, 32, 35, 38, 40, 60, 80mm etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

Noted:19-W-4 is most popular(19/16 inch x 4 inch opening=30x100mm opening)
Twisted Cross Bar Pitch 50, 60, 76, 100, 120mm etc.

US standard: 2' & 4' etc.
Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar


APPLICATION OF STEEL GRATING:
1. Water treatment: repair walkway, trench cover board, large container, cleaning device, blocking grate, running water tank, biochemical water treatment pool pendant, ventilation window, stairs, cooling tower operation table paving surface.
2. Chemical plant: stairway board, operating platform, guardrail, double floor, trench cover board, filter grate oil
3. Industry: offshore oil platforms
4. Textile mill: replace metal grille, wooden platform and cover cement ground, next to the dye tank, floor, near the valve, etc..
5. Power plant: chemical water workshop trench cover plate, waste pool, etc..
6. Marine food processing plant: slippery surface and other harsh environment, ships.

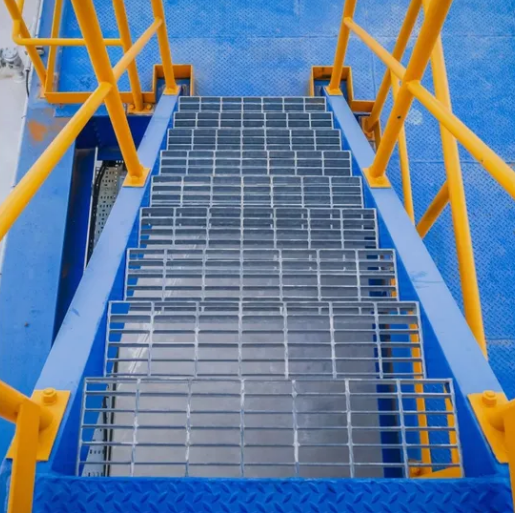

7. Transport: platforms, ship decks, walkways, stairs.
8. Beverage industry: Staircase floor board, replacement of expensive stainless steel, loaded floor.
