30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms
30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms
30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms
30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms
30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms
30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms
30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms
30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms
Specifications
Brand Name :
Gnee
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description
Heavy Duty 30X100mm Galvanized Steel Walkway Grating
Heavy steel grating refers to steel grating with a flat steel width of more than 50mm and a flat steel thickness of more than 6mm, designed for load-bearing requirements exceeding 10 tons. The crossbars are typically constructed from flat steel or steel bars with diameters of 10mm or 12mm. This specialized grating is engineered for heavy-duty applications and can be manufactured through pressure welding or pressure locking processes. Ideal for airports, highways, industrial platforms, ports and docks, and other demanding environments.
Technical Specifications
Specification Details
Product Name Hot dip galvanized metal bar steel grating
Materials Q195, Q235, Q235B / 304 316 Stainless Steel / Aluminium Alloy
Material Standard Low carbon steel (ASTM A36, A1011, A569, S275JR, SS304, SS400, EN2014, UK: 43A)
Type Pressure welded steel bar grating, pressure-locked, plug socket-welding, manual welding
Bearing Bar 25x3/25x5/32x3/32x5/45x3/45x5/50x3/50x5/65x3/65x5/75x3/75x5/80x3/80x5/32x10/45x10/50x10/65x10/75x10/80x10~100x10mm, custom sizes available
Bearing Bar Type F- Plain style (smooth), S-Serrated style (tooth), I- I bar style, I- Serrated I bar style
Bearing Bar Pitch 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
Cross Bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross Bar Pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm and custom requirements
Surface Treatment Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or custom requirements
Galvanizing Standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Standards China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS 1657-1988, Japan: JJS
Product Features
  • Durability: Constructed from high-quality carbon or stainless steel, ensuring long-lasting performance in demanding environments.
  • Load-Bearing Capacity: Engineered to support heavy loads, making it ideal for industrial applications such as factories and warehouses.
  • Slip-Resistant Surface: Features a textured surface that enhances safety by reducing the risk of slips and falls.
  • Customizable Sizes: Available in various sizes and spacing options to meet specific project requirements and applications.
  • Optimal Drainage: Open design allows for effective water drainage and air circulation, reducing the risk of pooling and enhancing hygiene.

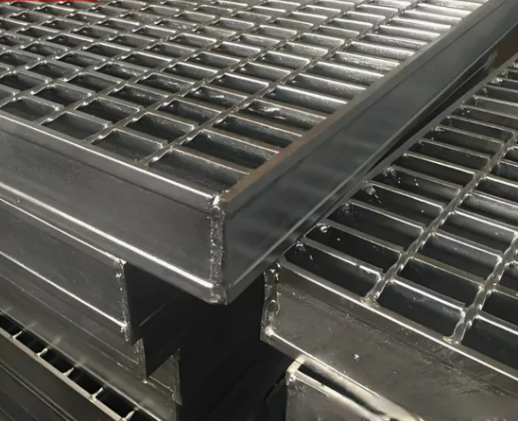

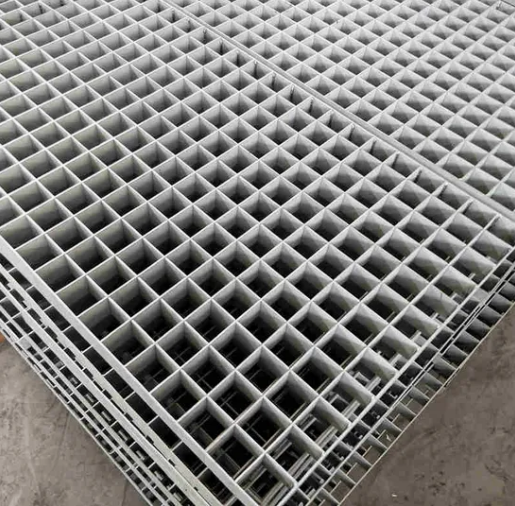

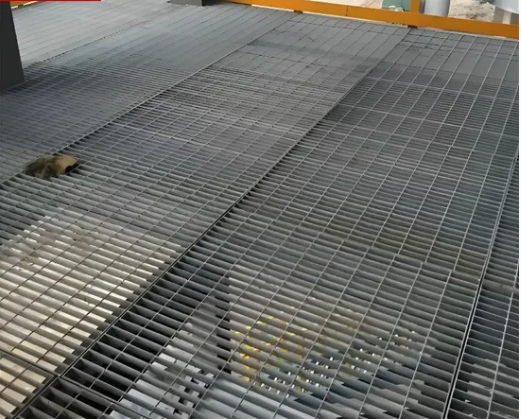

Product Images
30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms 30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms 30X100mm Galvanized Steel Heavy Duty Walkway Grating for Outdoor Steps and Platforms
