GRP FRP Grating Walkway Pigeon Floor Fiberglass Plastic Grid Fiberglass Mesh Grating 38X38X38
GRP FRP Grating Walkway Pigeon Floor Fiberglass Plastic Grid Fiberglass Mesh Grating 38X38X38
GRP FRP Grating Walkway Pigeon Floor Fiberglass Plastic Grid Fiberglass Mesh Grating 38X38X38
GRP FRP Grating Walkway Pigeon Floor Fiberglass Plastic Grid Fiberglass Mesh Grating 38X38X38
GRP FRP Grating Walkway Pigeon Floor Fiberglass Plastic Grid Fiberglass Mesh Grating 38X38X38
GRP FRP Grating Walkway Pigeon Floor Fiberglass Plastic Grid Fiberglass Mesh Grating 38X38X38
Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
China
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
100 ton/week
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description
Product Description

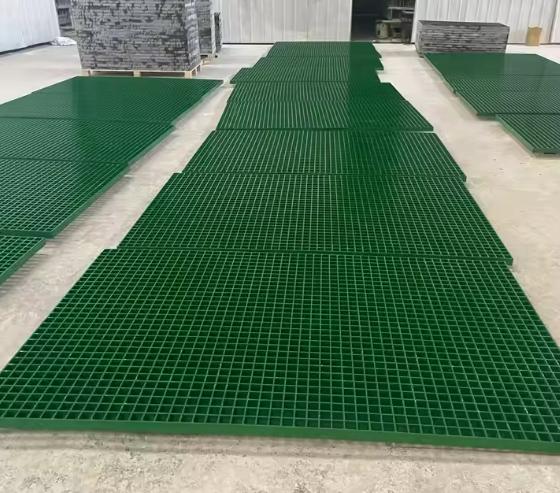

Molded grating is manufactured by laying continuous glass fibers in the mould in the direction of vertical and horizontal, and thoroughly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure the panel. After curing, the panel is ejected from the mould. The standard panel would have meniscus (concave) top surface. Any process such as post applied grit could be bonded after as a secondary operation.

Specification
Product name FRP Fiberglass molded grating
Material composition Fiberglass roving,resin,filler
Resin type GP, ISO, VE, PH
Color Black , white , red , green , yellow , blue , grey or customized color
Surface Smooth,GritFine grit,Concave,Grit cover,Chequer cover
Fabrication length 1007x3007,1220x3660,1007x4047
Certificate ISO9001,SGS
Feature Aging-Resistant,insulation,corrosion resistance
Size Customised Size
Trade terms EXW, FOB, CNF, CIF
Eco-Friendly Yes
Shipping Way By sea/air/express

GRP FRP Grating Walkway Pigeon Floor Fiberglass Plastic Grid Fiberglass Mesh Grating 38X38X38

Advantage

1. Corrosion Resistance
Different types of resin provide their own different anti-corrosion properties, which could be used in different corrosion circumstance such as acid, alkali, salt, organic solvent (in gas or liquid form) and the like over a long period.
2. Fire Resistance
Our special formula provide grating with excellent fire resistant performance. Our FRP gratings pass ASTM E-84 Class 1.
3. Light Weight & High Strength
The perfect combination of the continuous E-glass roving and thermosetting polyester resin provide grating with light weight and high strength and its specific gravity is only 1/4 of that of steel, 1/3 of aluminum. Different thickness and mesh size bring the client more choice.
4. Safety & Anti-slip
The high modulus of elasticity and various surfaces provided the super anti-skid performances. Its surface could be smooth surface, meniscus surface, grit surface and chequer plate cover which is suitable for different working places.
5. Electrical Insulating
High strength E-glass roving and high-grade resin provide the product super electric performance. Its electric break strength could reach 10KV/mm. There is no electric spark even when impact by tools, meanwhile it is non-magnetism. FRP Molded Grating could be used safely under the antiknock, diamagnetism and electric-resistance environments.
6. Aging Resistance
The high-grade resin and anti-ageing stabilizer provide grating long-life ageing resistant performance and the unique design make grating excellent self-cleanness function and keep its brightness and strength over a long time. The service life of grating could be 25 years.

GRP FRP Grating Walkway Pigeon Floor Fiberglass Plastic Grid Fiberglass Mesh Grating 38X38X38
