Car Washes fibreglass Walkway Mesh , Easy Cleaning Fiberglass Drain Grates
Car Washes fibreglass Walkway Mesh , Easy Cleaning Fiberglass Drain Grates
Car Washes fibreglass Walkway Mesh , Easy Cleaning Fiberglass Drain Grates
Car Washes fibreglass Walkway Mesh , Easy Cleaning Fiberglass Drain Grates
Specifications
Model Number :
car washes frp grating
Certification :
ISO9001
MOQ :
10000 square meters per month
Payment Terms :
T/T, Western Union
Delivery Time :
4-8 work days
Packaging Details :
Pallets or clients requirements
Brand Name :
GNEE
Product name :
Fiberglass Grating Car Washes And Drains Preferred Fiber Grating
Panel size :
1220 × 3660 , 1000 × 4040
Surface :
Concave , plain
Length :
1007x4007,1207x4047,etc
Width :
3007mm,3660mm,4047mm
Color :
Black\gray\white\yellow\red\green
Maintance :
Easy cleaning
Feature :
Light structure and high strength
Description

38 × 38 × 38 , 50 × 50 × 50 Frp Grating Colorful Surface Floor Grating

Specification

Regularly Moulded GRP Gratings have a polyester resin matrix. Glass content is approximately 35%.

Standard colours are green, yellow or grey, other colours are available according to RAL.

FRP grating is widely used in operation platform, checking and repairing walkway, drilling

platform, terrace, stair step, equipment walkway, trench cover, pedestrian overpass, filler support, deck of

ship,falsework, ventilation fence, rail, corrosion resistance shelf,etc.

Place of Origin:
Hebei, China (Mainland)
 Brand Name:
BS
 Model Number:
FRP
Application:
Platform, Floor,trench cover,stairs
 Surface Treatment:
Smooth
 Technique:
Molded
Dimensions:
38*38*38
 Product name:
frp molded grating
 Color:
Blackgraywhiteyellowredgreen
Material:
Fiberglass Reinforced Plastic
 Common Specification:
38x38x38
 Thickness:
38MM
Feature:
Good
 Hole shape:
Square
 Length:
1007x4007,1207x4047,etc

Details

Item no. Height(mm) Mesh Size
(mm)		 Standard Panel Sizes(mm) Bar Thickness
(top/bottom-mm)		 Open Area Weight
(kg/m2)
1 13 50.8×50.8 3660×1220 6.4 / 5.4 76% 5.5
2 15 25.4×25.4 / 50.8×50.8 3660×1220 6.2 / 5 57% 7.2
3 15 38.1×38.1 3660×1225 6.3 / 5.2 69 6.5
4 15 20×20 / 40×40 4047×1247 6.35 / 5.3 47 11.5
5 20 38.1×38.1 3665×1225 6.3 / 5 69 9.3
6 20 12.8×12.8×12.8 / 38.5×38.5 3434×970 7.2 / 6.4 27 18.5
7 25 38.1×38.1 3665×1225 6.35 / 5 69 12.3
8 25 40×40 4047×1007 6.35 / 5 70 12.2
9 25 19×19 / 38×38 4005×1220 6.4 / 5 44 15.5
10 25 25×100(Bearing bars to run width direction) 3007×1009 9.4 / 8(length)
6.4 / 5(width)		 67 13.8
11 25 25.4×101.6(Bearing bars to run width direction) 3660×1220 7 / 5 67 13
12 25 101.6×25.4(Bearing bars to run length direction) 3665×1225 7 / 5 67 13.1
13 30 38.1×38.1 4008×1525 6.6 / 5 68 14.6
14 30 40×40 4047×1007 6.6 / 5 69 14.2
15 30 20×20 / 40×40 4047×1247 7 / 5 42 18.1
16 30 12.7×12.7×12.7 / 38×38 4040×1220 7 / 5 30 23.5
17 30 26×26 / 52×52 4011×1150 6.5/5 56 13.6
18 38 38.1×38.1 3969×1525 7 / 5 66 19.2
19 38 40×40 4047×1007 7 / 5 67 18.8
20 38 152.4×25.4(Bearing bars to run length direction) 3665×1226 7 / 5(length)
9 / 7(width)		 68 20.4
21 38 101.6×38.1(Bearing bars to run length direction) 3660×1220 7 / 5 76 14.5
22 38 19×19 / 38.1×38.1 4045×1220 7 / 5 40 23.5
23 38 20×20 / 40×40 4047×1247 7 / 5 42 22
24 40 40×40 4047×1247 7 / 5 67 20
25 40 220×60 2207×1507 7 / 5 85 9.5
26 40 20×20 / 40×40 4047×1207 7 / 5 42 23.7
27 50 50.7×50.7 3660×1225 8.3 / 5 69 21.5
28 50 50.7×50.7 3660×1225 8.8 / 5 68% 23.5

Application

1 Walkways

2 Platforms

3 Protective Shielding

4 Machinery Housings

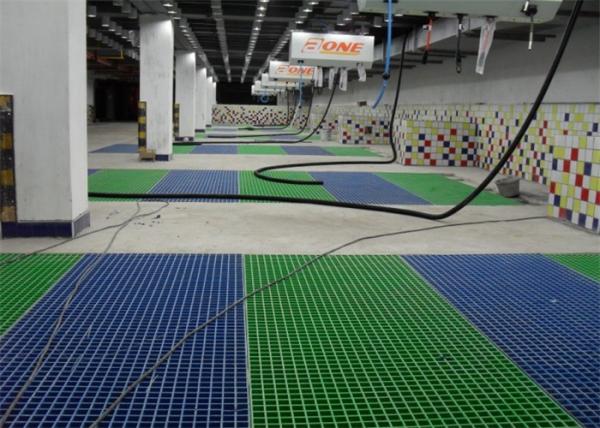

5 Car Washes

6 Drains

Molded Fiberglass FRP Grating Parameters
Type
Molded FRP Grating
Material
Fiberglass + Resin base (ORTHO,ISO,VE)+Filler(ATH,CAO)
Size
38*38*38mm,40*40*40mm, etc. can be customized
Color
Yellow, Orange, Blue, Green, Grey, etc. can be customized
Surface
Concaved
Properties
Light Weight, High Strength
Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum. Specific strength is superior to ordinary carbon steel. Anti-creeping.
Impact endurance.
Safety
Good performance of electric insulation. 10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen
index≥32, Anti-fire and Pass test of ASTM-E84.
Anti-Corrosion
No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture. It has predominant advantages in
anti-corrosion field.
Anti-skid
Different process mode on surface, concave, gritted, increase friction factor. Have good anti-skid function.
Anti-aging
Have more than 20 years effective service life under normal outdoor working condition.
Anti-fatigue
Moderate flexibility reduces the workers` pressure on legs and waist which is more comfortable
Attractive appearance & easy maintenance
have alternative and bright colors. Non-fading. Easily for clean.
Excellent economic benefits’
Excellent comprehensive economic benefits

Characteristics :

1. Corrosion and chemical resistant

2. High strength-to-weight ratio

3. Ergonomic

5. Slip-resistant

6. Anti-aging

7. Easy maintenance

Car Washes fibreglass Walkway Mesh , Easy Cleaning Fiberglass Drain Grates
