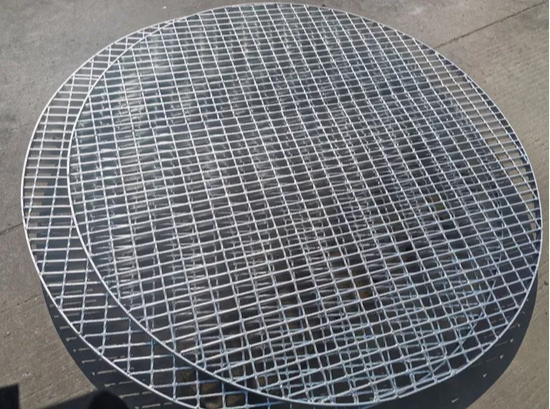

Platform Bridge Use Customizable Circular Galvanized Serrated Steel Walkway Grating
Platform Bridge Use Customizable Circular Galvanized Serrated Steel Walkway Grating
Platform Bridge Use Customizable Circular Galvanized Serrated Steel Walkway Grating
Platform Bridge Use Customizable Circular Galvanized Serrated Steel Walkway Grating
Platform Bridge Use Customizable Circular Galvanized Serrated Steel Walkway Grating
Platform Bridge Use Customizable Circular Galvanized Serrated Steel Walkway Grating
Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
China
Price :
Negotiable
Payment Terms :
Negotiable
Delivery Time :
5-9 working days
Packaging Details :
Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Description

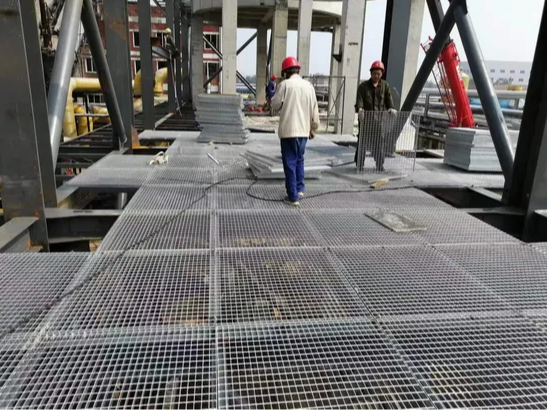

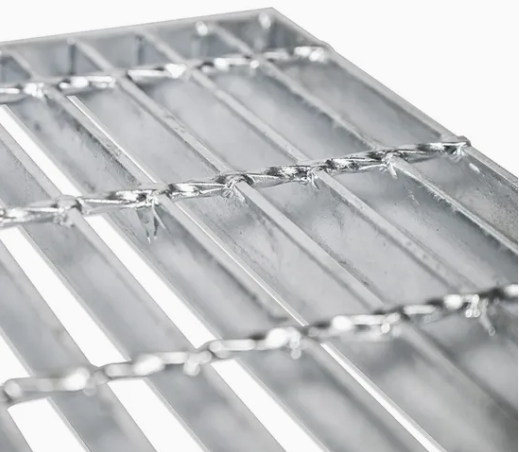

Introducing our innovative steel grating product, featuring a robust serrated bearing bar, crafted with precision for superior performance. Thanks to its smart and efficient structural design, this remarkable grating is the go-to choice for applications demanding high load-bearing prowess or aesthetic appeal. Produced from a specified size of serrated steel, this grating undergoes a series of meticulous processes-slotting, inserting, welding, and finishing-culminating in a product capable of handling substantial loads. It stands as a trusted solution for heavy-duty industrial platforms, offering a significant safety margin. Surface treatments are versatile, including galvanizing, painting, or dipping, tailored to your needs.

Platform Bridge Use Customizable Circular Galvanized Serrated Steel Walkway Grating

Platform Bridge Use Customizable Circular Galvanized Serrated Steel Walkway Grating

Specification

Product Name Customized Anti-slip Serrated Steel Grating
Material Mild Steel(Low Carbon Steel),S235,S275JR,A36,or Stainless Steel SS304,SS316 etc.
Surface treatment Hot dipped galvanized,
polished or untreated		 Grate size as customer's request
Bearing bar
width x thickness		 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,...75x10mm
Bearing bar pitch 12.5,15,20,23.85,25,30,30.16,30.3,34.3,35,40,41,60mm.
US standard:1"x3/16",11/4"x3/16",11/2"x3/16",1"x 1/4",
11/4"×1/4",11/2"x 1/4"etc.
Cross bar pitch 38,50,76,100,101.6mm or custom
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar(widthxthickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar(widthxthickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50

Note: We offer the flexibility of customized sizes.
