30 X 5 Hot Dipped Galvanized Serrated Steel Grating for Anti-Slip Flooring and Walkways
30 X 5 Hot Dipped Galvanized Serrated Steel Grating for Anti-Slip Flooring and Walkways
30 X 5 Hot Dipped Galvanized Serrated Steel Grating for Anti-Slip Flooring and Walkways
30 X 5 Hot Dipped Galvanized Serrated Steel Grating for Anti-Slip Flooring and Walkways
30 X 5 Hot Dipped Galvanized Serrated Steel Grating for Anti-Slip Flooring and Walkways
30 X 5 Hot Dipped Galvanized Serrated Steel Grating for Anti-Slip Flooring and Walkways
30 X 5 Hot Dipped Galvanized Serrated Steel Grating for Anti-Slip Flooring and Walkways
30 X 5 Hot Dipped Galvanized Serrated Steel Grating for Anti-Slip Flooring and Walkways
Specifications
Width :
25 mm ,30 mm, 32 mm, 38 mm,40mm as your request
Surface treatment :
Hot Dipped Galvanized 450g/sq
Welding Way :
Electrical forged welding, hand welding
Application :
Flooring,Stair tread,Ditch cover
Grating size :
3x20;3x24;3x26;on your request
Market :
USA, AUS, UK, Kuwait, and so on
HDG standard :
BS729, ASTM A123/A123M-97a,ASTM A36/A36M-96
Grating Standard :
BS 4592-1987, AS 1657-1985, YB/T4001.1-2007
Model Number :
SSG-05
Certification :
ISO9001:2008
MOQ :
2PCS
Payment Terms :
T/T,L/C
Supply Ability :
2000TONS
Delivery Time :
10DAYS
Packaging Details :
With steel belt and square tube
Brand Name :
Gnee
Description

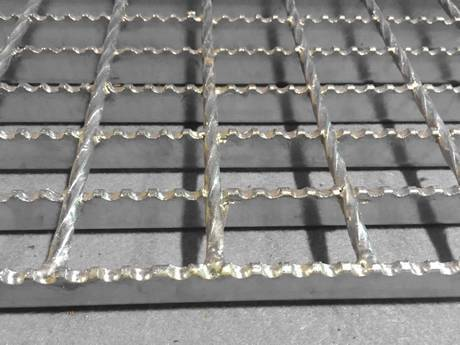

30 X 5 Hot Dipped Serrated Steel Grating With Twist Bar Galvanized Steel
30x5 Hot Dipped Galvanized Serrated Steel Bar Grating with Twist Bar
Product Specifications
  • Bearing Bar Specifications (mm): Plain type and serrated type: 25 x 3 to 100 x 8; I-section type: 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
  • Bearing Bar Pitch (center to center): 12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm. Custom specifications available. Recommended: 30, 40, 60mm. American standards also available.
  • Material: Mild Steel (Low Carbon Steel) or Stainless Steel
  • Surface Treatment: Untreated, Painting or Hot DIP Galvanizing
Technical Standards
Steel Grating Standard Steel Standard Galvanized Standard
China standard YB/T 4001.1-2007 GB/T 13912-2002
USA standard ANSI/NAAMM(MBG531) ASTM(A123)
U.K. standard BS4592 BS729
Australia standard AS1657 AS1650
Detailed Specifications
Parameter Specification
Product Name Serrated Steel Grating
Material Low Carbon Steel/Stainless Steel
Grade CN: Q235, Q345; US: A36; UK: 43A
Standard CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS
Certification CE, GOST, ISO9001, ISO14001, HSE
Bearing Bar Size 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc
Bearing Bar Pitch 20, 25, 30, 32.5, 34.3, 40, 50, 60, 62, 65mm
Bearing Bar Type Plain, Serrated (tooth-like), I bar (I section), Serrated-I
Cross Bar Size 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm (round bar)
Cross Bar Pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc.
Panel Size 3x20ft, 3x24ft, 3x30ft, 5800x1000, 6096x1000, 7315x1000, as requested
Surface Treatment Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers' requirement
Galvanization Standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Color Silver/Black
Product Images

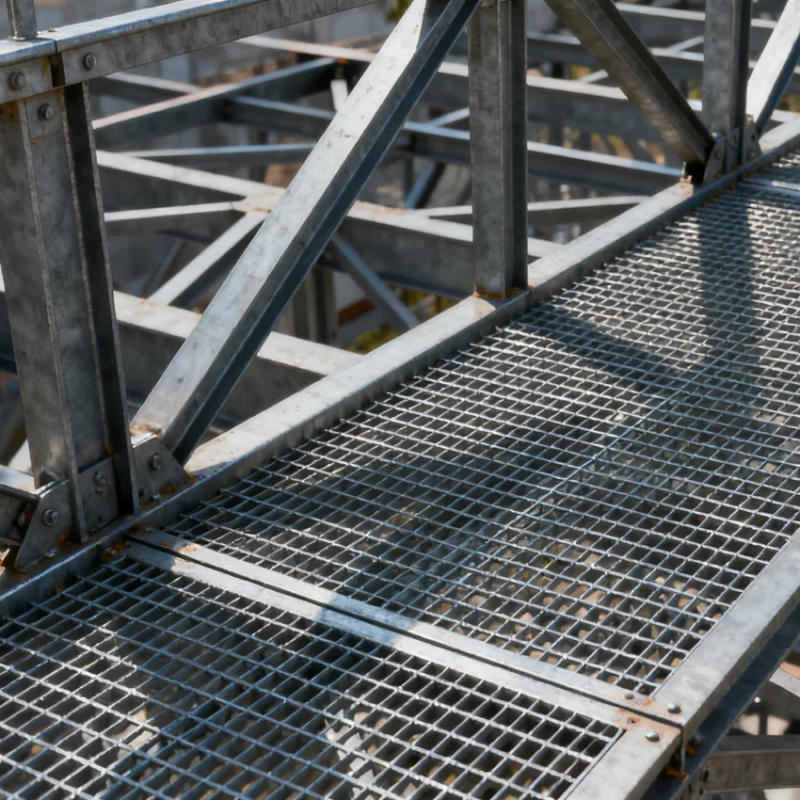

30 X 5 Hot Dipped Galvanized Serrated Steel Grating for Anti-Slip Flooring and Walkways 30 X 5 Hot Dipped Galvanized Serrated Steel Grating for Anti-Slip Flooring and Walkways
Applications
  • Walkway flooring and catwalks
  • Mezzanines and decking
  • Stair treads and ramps
  • Fencing and dock applications
  • Trench covers and drainage pit covers
  • Maintenance platforms
  • Pedestrian and crowded pedestrian areas
  • Factories, workshops, and motor rooms
  • Trolley channels and heavy loading areas
  • Boiler equipment and heavy equipment areas
  • Office buildings, apartments, and train stations
  • Department stores, hospitals, and amusement parks
  • Hoggery and welded bridge grating
  • Petroleum and chemical, port, power, transportation industries
  • Papermaking, medicine, steel and iron, food industries
  • Municipality, real estate, and manufacturing applications
Packaging & Shipping

Steel grating panels are packed in bundles and fixed by steel or plastic belts onto metal or wooden pallets as general export package. Custom packaging requirements are accepted.
