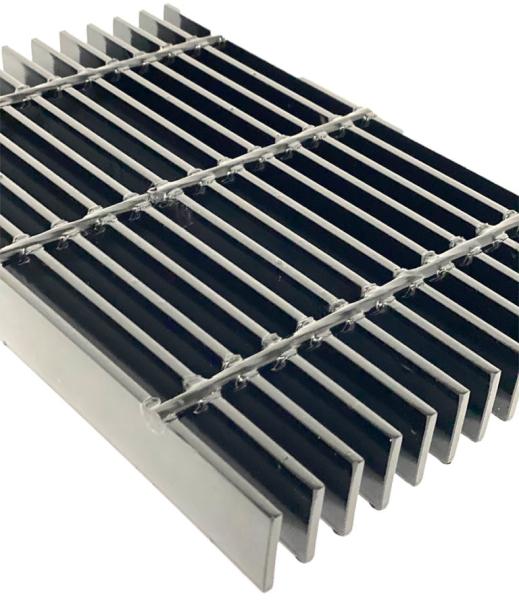

Removable Heavy Duty Steel Grating with 3/4 to 7 Depth and 40-50 Years Lifespan for Drainage
Removable Heavy Duty Steel Grating with 3/4 to 7 Depth and 40-50 Years Lifespan for Drainage
Removable Heavy Duty Steel Grating with 3/4 to 7 Depth and 40-50 Years Lifespan for Drainage
Removable Heavy Duty Steel Grating with 3/4 to 7 Depth and 40-50 Years Lifespan for Drainage
Removable Heavy Duty Steel Grating with 3/4 to 7 Depth and 40-50 Years Lifespan for Drainage
Removable Heavy Duty Steel Grating with 3/4 to 7 Depth and 40-50 Years Lifespan for Drainage
Specifications
Brand Name :
Gnee
Certification :
ISO9001
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

Hot-Dip Galvanized Steel Grating, Also Known As Hot-Dip Galvanized Steel Grating, Is A Grid-Shaped Building Material Made Of Low Carbon Steel Flat Steel And Twisted Square Steel Welded Horizontally And Vertically. Hot-dip galvanized Steel Grating Has Strong Impact Resistance, Strong Corrosion Resistance, Heavy Load Capacity, Elegant And Beautiful Appearance, And Excellent Performance In Municipal Roadbed And Steel Platform Construction Projects.

Due To Its Extremely High-Cost Performance, Hot-Dip Galvanized Steel Grating Is Widely Used In Construction Projects Of Paved Ditch Roads On New And Old Roadbeds. The Surface Of Hot-Dip Galvanized Steel Grating Has Undergone Special Hot-Dip Galvanizing Treatment. It's Chemical And Physical Properties Are Stable And It Is Not Susceptible To Corrosion And Oxidation By Air And Microorganisms. It Can Significantly Enhance The Trench Load Capacity.

Prevent Collapse. The Hot-Dip Galvanized Steel Grating With A Spacing Of 3 Cm Between Flat Steel Bars Has Greater Impact Resistance And Has The Characteristics Of The Largest Span. The Longer Its Service Life Is, Generally In The Range Of 40 To 50 Years. If No Damaging Factors Are Involved, Hot-Dip Galvanized Steel Grating Is A Very Good Steel Frame Structure And Load-Bearing Platform.

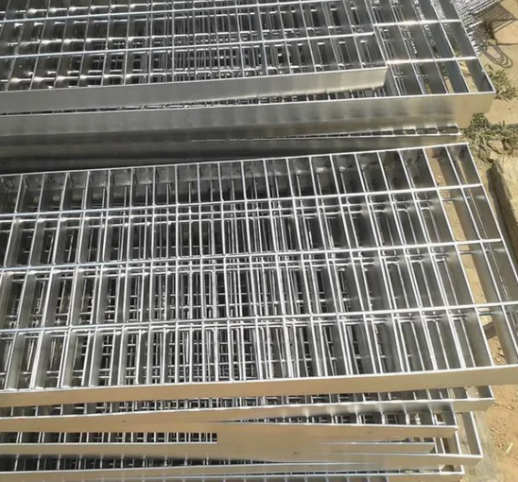

Removable Heavy Duty Steel Grating with 3/4


Product Name Galvanized Steel Grating
keywords Galvanized Steel Bar Grating
Main Materials Carbon Steel, Aluminum, Stainless Steel
Surface Treatment Galvanized
Processing Methods Welded
Common Bearing Bar Spacing 7/16",1/2",11/16",15/16",19/16" or Customized
Common Cross Bar Spacing 2", 4" in 1" Increment or Customized
Bearing Bar Depth 3/4" to 7" or Customized
Bearing Bar Thickness 1/8" to 1/2" or Customized
Anchoring Devices Saddle Clips, Weld Lugs, "G" Clips, "J" Clips.
Design Style Industrial
Weight Depends on Specifications
Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400

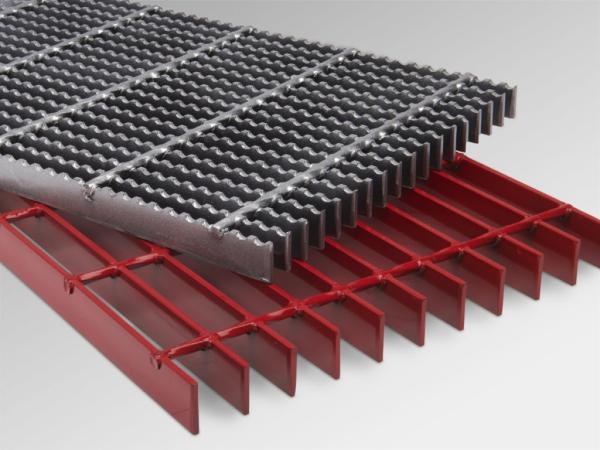

Grating Style Plain / Smooth, Serrated /teeth, I bar, etc
Color Silver, Black, Ect, or Customized

Removable Heavy Duty Steel Grating with 3/4
