Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure
Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure
Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure
Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure
Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure
Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure
Specifications
Brand Name :
Gnee
Certification :
ISO9001
MOQ :
2PCS
Supply Ability :
300000 Square Meter/Square Meters per Month
Delivery Time :
Shipped in 20 days after payment
Packaging Details :
Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container
Description

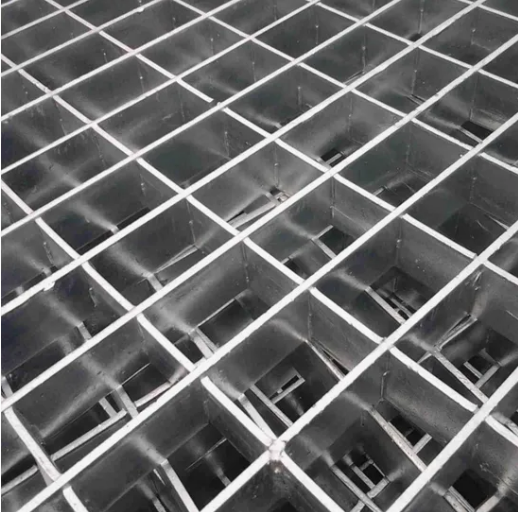

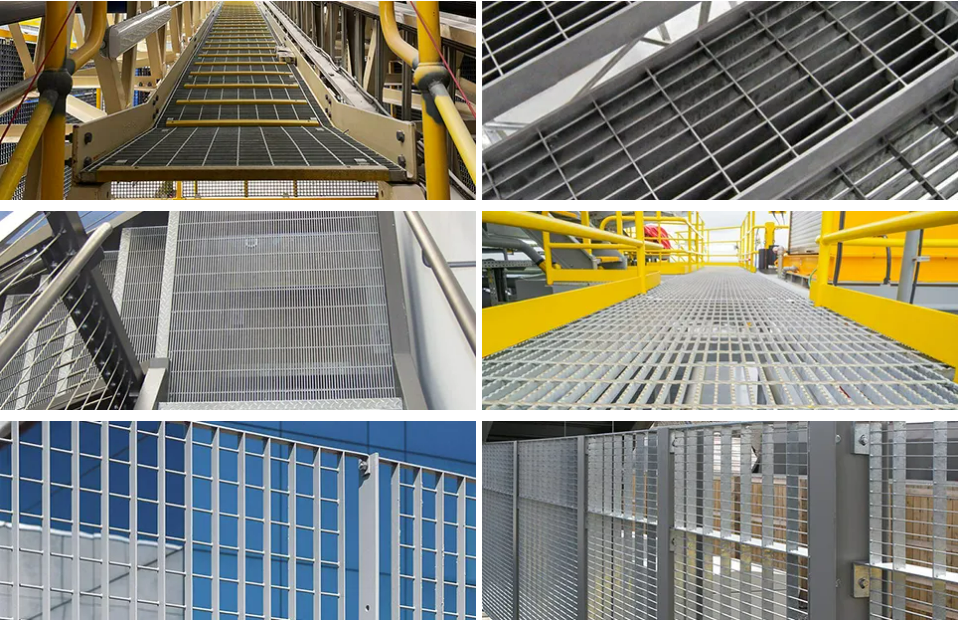

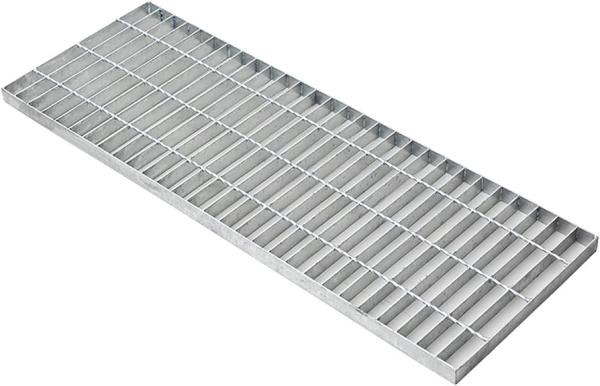

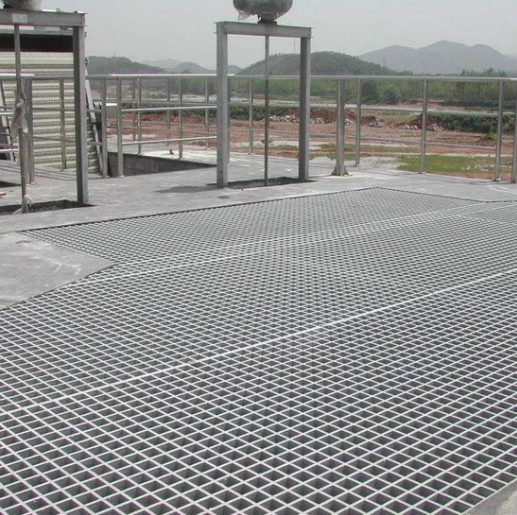

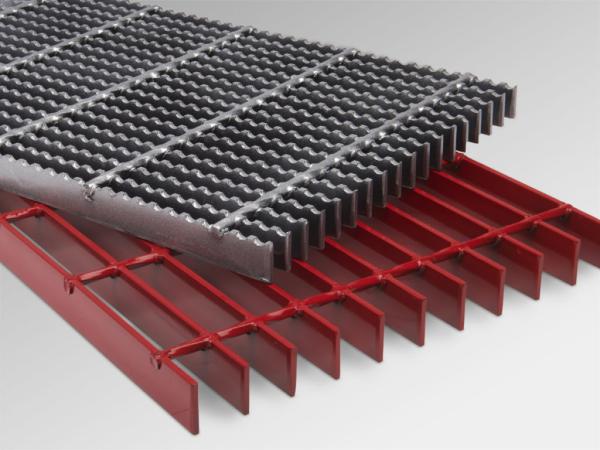

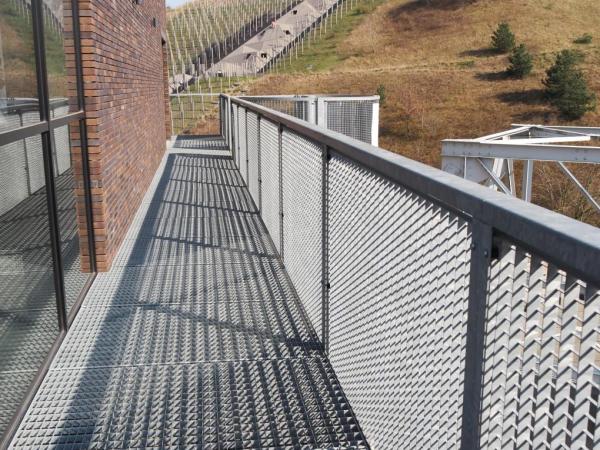

Steel bar grating, known for its high strength and robust structure, is manufactured from carbon steel, aluminum, or stainless steel. Depending on the production method, steel grating can be categorized into four types: welded bar grating, press-locked grating, swage-locked grating, and riveted grating. Based on surface design, it is available in both smooth and serrated options. With a wide range of styles and sizes, steel grating serves versatile applications in everyday life, including stair treads, walkways, platforms, flooring, trench covers, wheeled equipment, security screens, and heavy-duty constructions.

Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure

Press Welded High Strength Steel Bar Grating for Heavy Duty Applications with Robust Structure

Specification Table of HD Grating with Plain Top Type of Bearing Bars
Specification Code Size of Bearing Bars Bearing Bar
Spacing
(mm)		 Cross Bar
Spacing
(mm)		 Nominal Weight
(kg/m2)
Depth (mm) Thickness (mm)
G1508/40/100 150 8 40 100 284.90
G1308/40/100 130 8 40 100 247.60
G1208/40/100 120 8 40 100 229.00
G10010/40/100 100 10 40 100 234.90
G1008/40/100 100 8 40 100 191.70
G908/40/100 90 8 40 100 173.10
G808/40/100 80 8 40 100 154.40
G758/40/100 75 8 40 100 145.10
G756/30/100 75 6 30 100 140.10
G756/40/100 75 6 40 100 110.10
G706/30/100 70 6 30 100 131.10
G706/40/100 70 6 40 100 103.20

Note:

  1. The size of cross bars is usually 8mm x 8mm or what you exactly need.
  2. For more information on safe load data, please feel free to contact us, and our engineers will be more than happy to share them with you.
