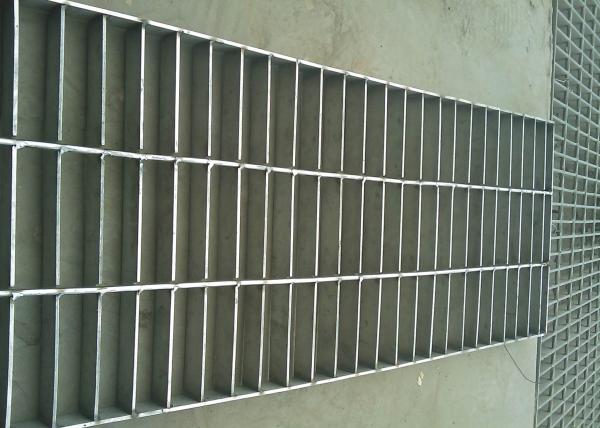

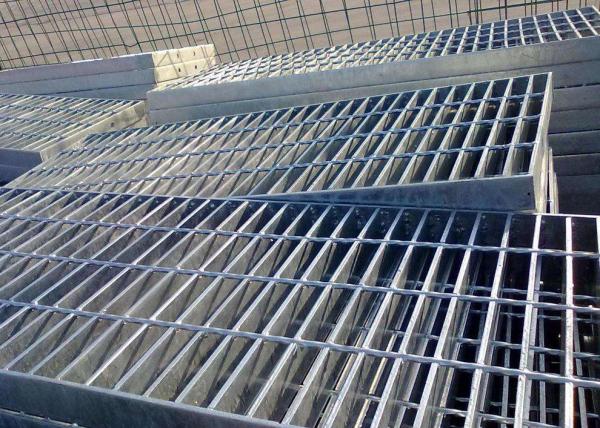

Mild Steel Galvanzied Steel Grating Drain Cover Flat Bar Customized
Mild Steel Galvanzied Steel Grating Drain Cover Flat Bar Customized
Mild Steel Galvanzied Steel Grating Drain Cover Flat Bar Customized
Mild Steel Galvanzied Steel Grating Drain Cover Flat Bar Customized
Specifications
Model Number :
RB-1
Certification :
ISO9001,SGS
MOQ :
2pcs
Supply Ability :
600ton/month
Packaging Details :
Steel belt and platics film
Brand Name :
GNEE
Name :
Mild Steel Galvanzied Steel Grating Drain Cover Flat Bar Customized
Length :
500, 1000, 2000, 2500, 3000, 4000, and etc
Width :
250 mm, 300 mm , 350 mm ,500 mm
Bearing bar type :
Flat bar Twisted bar I bar
Cross bar type :
Free
Sample :
single razor and cross razor
Bearing bar :
20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……120×10mm,etc.
Color :
Sliver/Black
Description

Mild Steel Galvanzied Steel Grating Drain Cover Flat Bar Customized

Heavy Duty Steel Plate Grating Trench Cover

Heavy Duty Steel Plate Grating Trench Covers are anti-corrosive, resisting to acid and alkali. Light weight, great load-bearing capacity, anti-slip and safe, easy installation, economical of materials, sturdy and durable, good ventilation, easy to clean and attractive appearance.

Serrated Metal Slot Drainage Cover Steel Grating

Serrated slot grating covers are safe, self-cleaning, skid-resistant and economical.
Serrated top surface adds extra skid resistance for special requirements.
Welded steel covering grates are the most widely used for their strength and ease of installation and are
universally used in most industrial and commercial applications.

Item No Bearing bar pitch Cross bar pitch specification os bearing bar(width*thickness)
20*3 25*3 32*3 40*3 20*5 25*5
1 30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
2 40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
3 60 50 G203/60/50 G253/60/50 G323/60/50 G403/60/50 G205/60/50 G255/60/50

Common specification of Steel grating
Material Standard

ASTM A36, A1011, A569, Q235, S275JR,Stainless steel 304,

Mild steel & Low carbon steel, etc

Bearing Bar

(width*thickness)

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment

untreated(black), hot-dipped galvanized ,powder coated,

electroplate, painting or as per customers’ requirement.
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Packing

1) LCL(less than one container load): packed with plastic film then on the pallets

2) FCL(full container load): nude packing

3) Other special package :according to customers' requirements.
Payment Term

T/T,L/C, Paypal, Western Union, MoneyGram, Credit Card ,D/A,D/P,

Trade assurance
Remarks: Other sizes also can be customized according to customers’ requirement.
