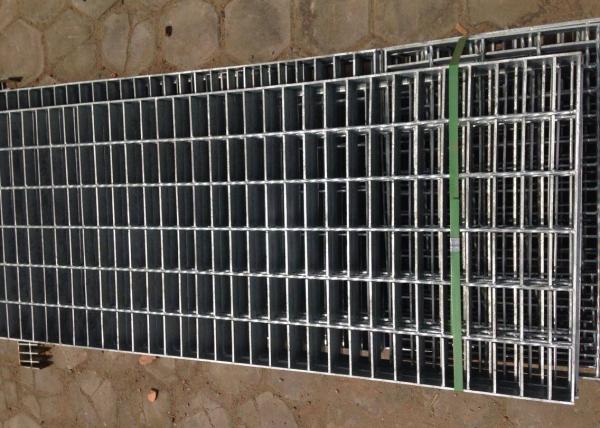

Hot Dipped Galvanized Steel Grating Drain Cover Customized 450mm
Hot Dipped Galvanized Steel Grating Drain Cover Customized 450mm
Hot Dipped Galvanized Steel Grating Drain Cover Customized 450mm
Hot Dipped Galvanized Steel Grating Drain Cover Customized 450mm
Specifications
Model Number :
RB-10
Certification :
ISO9001,SGS
MOQ :
2pcs
Price :
USD 550/TON
Supply Ability :
600ton/month
Packaging Details :
Steel belt and plastic film
Brand Name :
Gnee
Material :
Mild Steel
Surface treatment :
Hot dipped galvanized or uncoated Certification Iso 9001
Length :
500, 1000, 2000, 2500, 3000, 4000, and etc
Width :
250 mm, 300 mm , 350 mm ,500 mm
Bearing bar type :
Flat bar Twisted bar
Cross bar type :
Twisted bar or round bar
Sample :
Free
Bearing bar :
20×3,25×3,25×5,30×3,30×4,30×5,32×3,32×5……120×10mm,etc.
Description

Hot Dipped Galvanized Steel Grating Drain Cover Customized 450mm

Steel grating drain Covers are cut-to-size pieces of grating that are used in various water drainage applications.

· Manufactured from Grating.

· Galvanized or Uncoated Finish.

· Bands are welded on non-span edge for improved structural stability.

· Ideal for the front of garage doors and other building entrances.

Standard Lengths : 500, 1000, 2000, 2500, 3000, 4000, 5000, 6000.
Note : special lengths on request

Width 250 mm, 300 mm , 350 mm ,500 mm

Materials : Carbon Steel

Grade CN: Q235, Q345, US: A36, UK: 43A
Finishes : Carbon Steel - Uncoated, Painted, Bitumenised, Galvanised


Features:
Appearance: simple lines. Silver exterior, modern trends.
Best drainage: leakage area of 83.3%, more than double the cast iron.
Hot-dip galvanizing: rust-proof and strong, maintenance and replacement.
Security design: box with hinged lid and connection, security, safe, easy to open.
Saving investment: large span. When overloaded, the lowest ratio of iron and saves replacement costs stolen, then crushed.
High strength: strength and toughness is much higher than cast iron, can be used for terminals, airports and other large span and heavy load environment.
Specifications and more: meet different environment and loading requirement. Span, the desired size and shape.

Cross Rod Pitch load Bar Pitch load Bar Specification(Width×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Cross Rod Pitch load Bar Pitch load Bar Specification(Width×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50
Item Clear opening (mm) Grate width (mm) Grate depth (mm) Bar spacing (mm) Angle frame (mm)
TGAFS-01 75 100 25 20* 30 × 15 × 3
TGAFS-02 105 150 25 25 30 × 30 × 5
TGAFS-03 120 150 25 20* 30 × 15 × 3
TGAFS-04 150 200 25 20* 30 × 30 ×5
TGAFS-05 150 215 32 25 40 × 40 × 5
TGAFS-06 200 250 25 25 30 × 30 × 5
TGAFS-07 200 275 40 25 45 × 45 × 5
TGAFS-08 235 300 32 25 40 × 40 × 5
TGAFS-09 250 300 25 25 30 × 30 × 5
TGAFS-10 250 325 40 25 45 × 45 × 5
TGAFS-11 300 350 25 25 30 × 30 × 5
TGAFS-12 300 375 40 25 45 × 45 × 5
TGAFS-13 300 395 50 25 55 × 55 × 5
TGAFS-14 400 475 40 25 45 × 45 × 5
TGAFS-15 400 495 50 25 55 × 55 × 5

Hot Dipped Galvanized Steel Grating Drain Cover Customized 450mm
