Free Sample Light Weight Plastic Floor Grating Square Hole 25MM
Free Sample Light Weight Plastic Floor Grating Square Hole 25MM
Free Sample Light Weight Plastic Floor Grating Square Hole 25MM
Free Sample Light Weight Plastic Floor Grating Square Hole 25MM
Specifications
Model Number :
CP06
Certification :
ISO9001
MOQ :
100 square meters
Supply Ability :
1000t per month
Delivery Time :
3 - 7work days
Packaging Details :
Plain packaging or as customers' requirement
Brand Name :
Gnee
Product name :
Free Sample Light Weight Plastic Floor Grating Square Hole 25MM
Specification :
25*38*38mm,30*38*38mm,38*38*38mm,50*50*50mm,19*38*38mm,19*50*50mm
Size :
1220*3660mm,1000*2000mm or your request
Work temperature :
-50~110
Open Area :
70%
Life :
50 years
Feature :
high Strength,light weight
Fittings :
clips
Description

Free Sample Light Weight Plastic Floor Grating Square Hole 25MM

1) Name: Free Sample Light Weight Plastic Floor Grating Square Hole 25MM

2) Thickness:any between 12.6mm to 63mm (such as 12.6mm, 15mm, 20mm, 25mm, 30mm, 33mm, 38mm, 40mm, 50mm, 63mm)

3) Mesh Size: 1.5”x1.5”, 2.0”x2.0”, 1.0X4.0” 1.0X6.0”, 1.5”x6.0”, mini mesh 20x20(up) / 40x40mm (down), 19x19 / 38x38mm, 12.6x12.6x12.6/38.1x38.1mm

4) Panel size: 3’x8’, 3’x10’, 3’x12’, 4’x8’,4x10’, 4’x12, 5’x13’, can cut into any size less than the above panel size.

5) Surface:surface can be flat,gritted,solid/covered or concave.

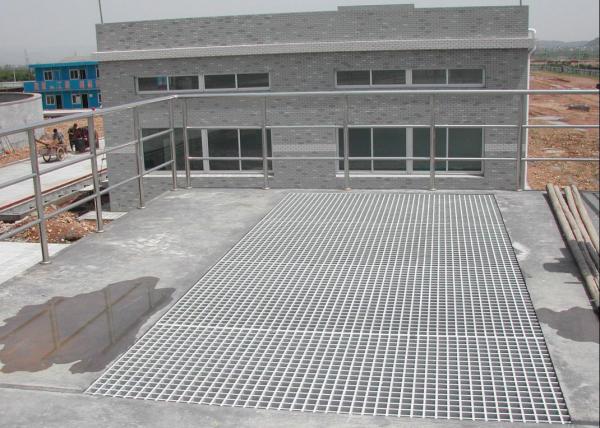

6) Usages:walkway mesh,floor mesh,drainage cover mesh,decking mesh,wall mesh,car wash station mesh,tree mesh,livestock mesh,industry mesh,construction mesh and so on.

7) Package :According to customer's need, can use pallets, cartons or plastic bags

8)Material:frp grp fiberglass mesh is made of thoroughly wetted continuous glass strand fibers and a special resin that provides maximum corrosion resistance to chemicals.

9) Part of our Size as below.For more size information,pls contact with us.

10) Drawing of our frp grp fiberglass mesh.For example 38S38grating(mesh size is 38x38mm,thickness is 38mm)

Specification

Item no. Height(mm) Mesh Size
(mm)		 Standard Panel Sizes(mm) Bar Thickness
(top/bottom-mm)		 Open Area Weight
(kg/m2)
1 13 50.8×50.8 3660×1220 6.4 / 5.4 76% 5.5
2 15 25.4×25.4 / 50.8×50.8 3660×1220 6.2 / 5 57% 7.2
3 15 38.1×38.1 3660×1225 6.3 / 5.2 69 6.5
4 15 20×20 / 40×40 4047×1247 6.35 / 5.3 47 11.5
5 20 38.1×38.1 3665×1225 6.3 / 5 69 9.3
6 20 12.8×12.8×12.8 / 38.5×38.5 3434×970 7.2 / 6.4 27 18.5
7 25 38.1×38.1 3665×1225 6.35 / 5 69 12.3
8 25 40×40 4047×1007 6.35 / 5 70 12.2
9 25 19×19 / 38×38 4005×1220 6.4 / 5 44 15.5
10 25 25×100(Bearing bars to run width direction) 3007×1009 9.4 / 8(length)
6.4 / 5(width)		 67 13.8
11 25 25.4×101.6(Bearing bars to run width direction) 3660×1220 7 / 5 67 13
12 25 101.6×25.4(Bearing bars to run length direction) 3665×1225 7 / 5 67 13.1
13 30 38.1×38.1 4008×1525 6.6 / 5 68 14.6
14 30 40×40 4047×1007 6.6 / 5 69 14.2
15 30 20×20 / 40×40 4047×1247 7 / 5 42 18.1
16 30 12.7×12.7×12.7 / 38×38 4040×1220 7 / 5 30 23.5
17 30 26×26 / 52×52 4011×1150 6.5/5 56 13.6
18 38 38.1×38.1 3969×1525 7 / 5 66 19.2
19 38 40×40 4047×1007 7 / 5 67 18.8
20 38 152.4×25.4(Bearing bars to run length direction) 3665×1226 7 / 5(length)
9 / 7(width)		 68 20.4
21 38 101.6×38.1(Bearing bars to run length direction) 3660×1220 7 / 5 76 14.5
22 38 19×19 / 38.1×38.1 4045×1220 7 / 5 40 23.5
23 38 20×20 / 40×40 4047×1247 7 / 5 42 22
24 40 40×40 4047×1247 7 / 5 67 20
25 40 220×60 2207×1507 7 / 5 85 9.5
26 40 20×20 / 40×40 4047×1207 7 / 5 42 23.7
27 50 50.7×50.7 3660×1225 8.3 / 5 69 21.5
28 50 50.7×50.7 3660×1225 8.8 / 5 68% 23.5
29 50 25.35×25.35 / 50.7×50.7 3660×1220 8 / 6 47% 26
30 50 152.4×38.1(Bearing bars to run length direction) 3660×1220 9 / 7 72% 20.8
31 50 38.1×38.1 3665×1225 11.5 / 9 48 40.5
32 63 38.1×38.1 3660×1220 9 / 5.8 58% 38.5
33 63 38.1×38.1 3670×1230 12 / 9 46% 52

Free Sample Light Weight Plastic Floor Grating Square Hole 25MM
