The Ultimate Guide to Gabion Mesh Cage: Materials, Process, and Applications

In modern ecological hydraulic engineering, highway protection, and landscape architecture, one structure stands out for balancing "rigid strength" with "flexible ecology"—the gabion mesh cage. As a robust, durable, and eco-friendly structural unit, it has become an indispensable material for global infrastructure development.

## Core Materials: The Perfect Blend of Strength and Corrosion Resistance

The longevity of a premium gabion mesh cage begins with strategic material selection. To withstand harsh outdoor environments, we offer three primary wire configurations:

• Heavy Galvanized Wire: Coated with a thick layer of zinc, offering excellent anti-oxidation and corrosion resistance. It is the go-to, cost-effective choice for standard projects.

• Galfan Wire (Zn-5%Al-MM): An advanced alloy coating containing 5% aluminum and rare-earth elements. Its corrosion resistance lifespan is 2 to 3 times that of traditional pure galvanized wire, making it highly reliable in acidic or alkaline environments.

• PVC/PE Coated Wire: A thermoplastic protective layer is applied over the galvanized or Galfan wire. This not only allows the cage to blend into nature (e.g., eco-green) but also insulates the steel from seawater or severe industrial pollution.

## Production Process: Precision Weaving to Prevent Unraveling

A high-quality gabion mesh cage is never just a simple assembly of wires; it undergoes a rigorous industrial manufacturing process:

1. Wire Drawing & Coating: Ensuring the raw wire rod reaches the specified tensile strength and precise zinc coating weight.

2. Double-Twisted Weaving: Utilizing advanced machinery to continuously twist two wires together for at least three turns, forming a honeycomb hexagonal mesh. The advantage? Even if a wire is cut, the entire structure will not unravel.

3. Cutting & Selvedge: The mesh is cut into specific engineering dimensions, and the edges are reinforced with a thicker selvedge wire to lock the structure's strength.

4. Compression & Packing: Cages are folded flat and compressed into bundles, significantly saving logistics and shipping costs.

## Real-World Applications: Engineering Meet Ecology

Thanks to its excellent permeability, structural integrity, and ecological self-healing properties, the gabion mesh cage is widely deployed across various sectors:

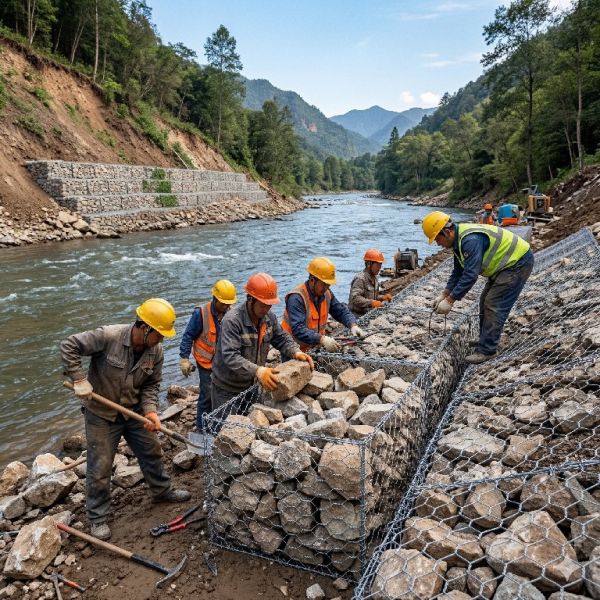

• Riverbank & Channel Protection: Stabilizes riverbanks, mitigates water erosion, and allows vegetation to grow naturally within the stone gaps, restoring aquatic ecosystems.

• Gabion Retaining Walls: Used for slope support along highways and railways. Its flexible structure safely accommodates uneven ground settlement.

• Rockfall Protection & Soil Erosion Control: Installed along mountainous roads to intercept falling rocks and prevent severe soil erosion.

• Landscape & Architectural Design: Modern architects fill them with multicolored rocks to create building facades, park benches, or feature walls, delivering a striking industrial-eco aesthetic.
