2*1*1m / 2*1*0.5m Stone Filled Gabion Mesh Cage for Slope Water Conservancy Protection Project
2*1*1m / 2*1*0.5m Stone Filled Gabion Mesh Cage for Slope Water Conservancy Protection Project
2*1*1m / 2*1*0.5m Stone Filled Gabion Mesh Cage for Slope Water Conservancy Protection Project
2*1*1m / 2*1*0.5m Stone Filled Gabion Mesh Cage for Slope Water Conservancy Protection Project
2*1*1m / 2*1*0.5m Stone Filled Gabion Mesh Cage for Slope Water Conservancy Protection Project
2*1*1m / 2*1*0.5m Stone Filled Gabion Mesh Cage for Slope Water Conservancy Protection Project
Specifications
Brand Name :
KN
Model Number :
KN211
Certification :
ISO, CE, COC, CO
Place of Origin :
CHIAN
MOQ :
1000
Price :
Negotiate
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
30000 square meter per 7 days
Delivery Time :
5-8 working days
Packaging Details :
In Bundle for Container, LCL shipping will use Pallet
Product Name :
Hexagonal Wire Mesh with 80*100mm Mesh for Gabion Retaining Wall
Key Word :
Gabion Basket
Material :
Galvanized Iron Wire,Low-Carbon Iron Wire,pvc wire, Galfan Wire
Hole shape :
Hexagonal, Double Twist
Wire gauge :
2.4mm, 2.5mm, 2.7mm, 2.8mm, 3.05mm
Application :
Gabions,Cages,slope protection,Fence Mesh,Construction Wire Mesh
Type :
Hexagonal wire mesh, Double Twist
Aperture :
80*100mm,100*120mm,60*80mm,etc,
Surface treatment :
Hot Dipped Galvanized, PVCcoated, Galvanized+PVC Coated
Color :
green,black,
Packing :
Pallet,Bundle
sample :
Free
Description

2X1X1m Wire Mesh Cages Galvanized Stone Retaining Wall Gabion Cages in Venezuela


Gabion Cages in Venezuela are highly effective for erosion control, slope stabilization, and creating strong, durable retaining walls in various landscapes. Made from galvanized steel wire mesh, these gabion cages are designed to hold stones or other aggregates, offering a robust structure that prevents soil erosion while maintaining water drainage. Their 2x1x1 meter size makes them ideal for both residential and commercial applications, providing long-term protection against flooding and land degradation. In Venezuela, where the landscape includes diverse terrains such as mountainous regions and riverbanks, these gabion cages serve as a reliable solution for reinforcing infrastructure and protecting natural resources.

2*1*1m / 2*1*0.5m Stone Filled Gabion Mesh Cage for Slope Water Conservancy Protection Project


Common Gaboin Basket Size :

Gabion Basket Size Notes
Length (M) Width(M) Height(M) Diaphragm CBM (m³)
1 1 1 0 1
2 1 1 1 2
3 1 1 2 3
4 1 1 3 4
5 1 1 4 5
6 1 1 5 6
Other Size Accept Customized


Gabion Mattress Size Notes
Length (M) Width(M) Height(M) Diaphragm CBM (m³)
1 1 0.3/0.5 0 0.3/0.5
2 1 0.3/0.5 1 0.6/1
3 1 0.3/0.5 2 0.9/1.5
4 1 0.3/0.5 3 1.2/2
5 2 0.3/0.5 4 3/5
6 2 0.3/0.5 5 3.6/6
Other Size Accept Customized

Product Usage:

  • Erosion Control: Woven gabion mesh is frequently used to stabilize slopes and riverbanks, effectively preventing soil erosion by holding back loose earth and allowing for proper water drainage.

  • Retaining Walls: This mesh is ideal for constructing retaining walls that not only secure hillside soil but also add an aesthetic, natural look to landscapes, making it popular in both residential and commercial projects.

  • Flood Protection: In areas prone to heavy rainfall or flooding, woven gabion mesh forms durable barriers that can divert water flow, thereby reducing the risk of flood damage and protecting nearby infrastructure.

  • Coastal Defense: The mesh is used along shorelines to stabilize sandy beaches and cliffs, mitigating the effects of wave action and protecting coastal properties from erosion.

  • Road and Highway Embankments: Woven gabion mesh can reinforce road embankments by retaining soil and reducing the likelihood of landslides, ensuring the long-term stability of transportation routes.

  • Bridge Abutments and Foundations: In bridge construction, the mesh is applied to strengthen abutments and support foundations, offering a cost-effective solution for reinforcing structural integrity.

Gabion Basket Technical Data as Followed:

Technical Data List
Parameter Description Typical Value / Range
Material Base material used for constructing the mesh HDP/Galvanized Wire, PVC Wire
Coating Surface treatment for enhanced corrosion resistance Galvanized, HDP Galvanized, PVC Coated
Wire Diameter The thickness of the wires used in the mesh

Mesh Wire: 2.0~3.05mm

Selvage Wire: 2.4~4.0mm

Tie Wire: 2.0~2.4mm
Mesh Opening Size The size of the openings between wires, determining the size of stones that can be contained

60*80mm, 80*100mm, 100*120mm,120*150mm
Overall Dimensions Standard Gabion Roll and Gabion Basket Size

Gabion Roll Width: 1~4m

Gabion Basket: 1*1*1m,2*1*1m,3*1*1m,4*1*1m,,5*1*1m,6*1*1m,
Lifespan Expected service life under normal installation and maintenance conditions

Generally 6~20 years, depends on environment.

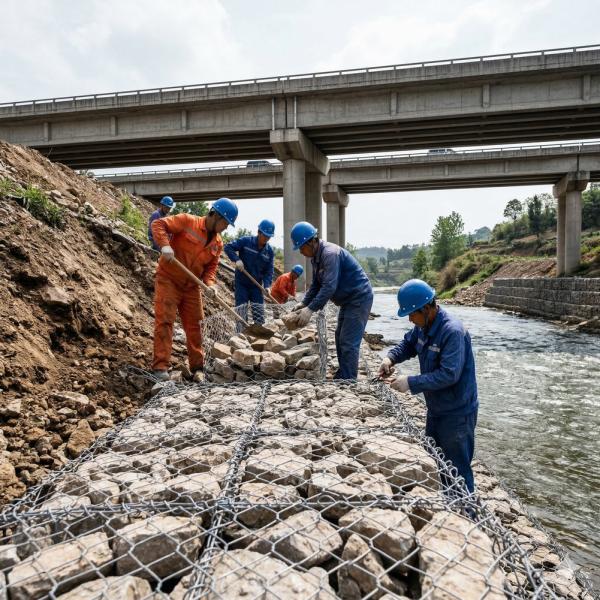

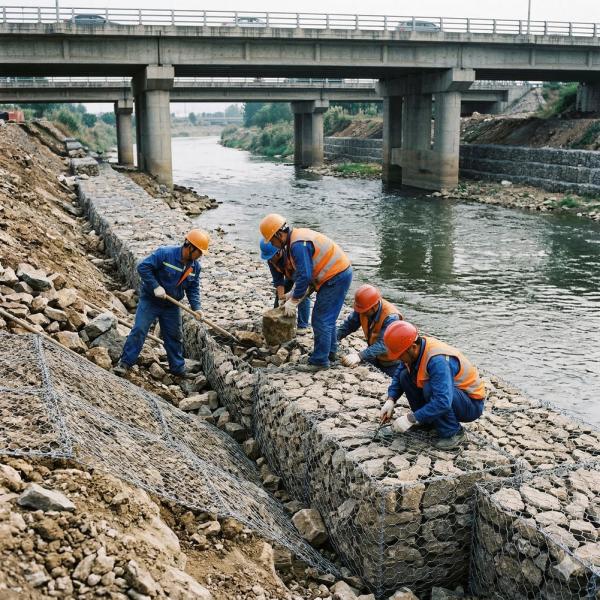

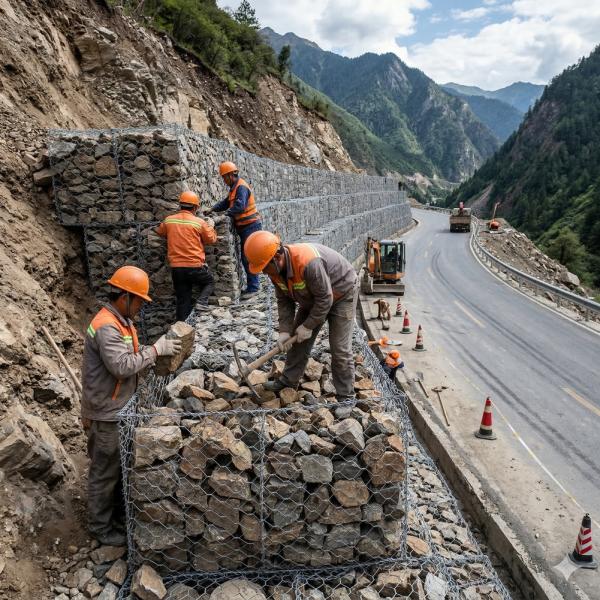

Project Site Picture Show:

Factory overall display:
