Specifications
Model Number :
FT-42PGM775-514K
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Continuous Current(A) :
about 110mA-550mA
Efficiency :
65%-73%
Speed(RPM) :
2rpm-1000rpm
Commutation :
Brush
Construction :
Permanent Magnet
Torque :
1-380kgf.cm, 20/28/21/27(g.cm)
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-42PGM775
Gear box size :
42mm
Voltage :
1-24V
DC gear motors are widely used :
Robots, electronic locks, public bicycle locks, relays
Rotating speed :
5000/12000/6000/9000(rpm)
Current :
45/90/21/43(mA)
Output :
0.88/2.96/1.12/2.2(w)
Name :
DC Planetary Gear Motor
Description
Product Description

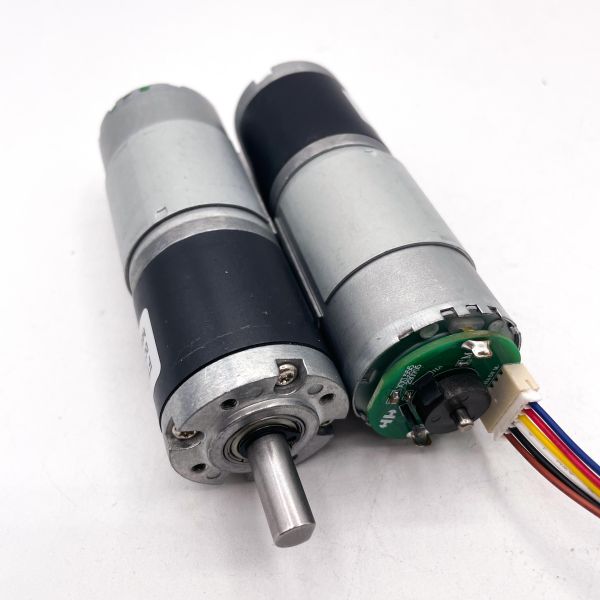

Customized FT-42PGM775 42mm planetary gear box with hall encoder 775 Motor



Motor type

Planetary Gear Motor

Model number

775

Voltage

12/24V

Electric current

0.7/1.4A

Power

80 / 66W

Torque

2-85KG,CM

Rotating speed

57-2162 rpm

Weight

800g

Shaft

Length 28.5mm , diameter 8mm /10mm





Customized FT-42PGM775 42mm Diameter Planetary Gear Box with 775 Motor Hall Encoder

Dongguan Futeng Motor Co., Ltd.
Model number Rated volt. No load Load Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA(max) rpm mA(max) Kgf.cm W mA(min) Kgf.cm
FT-42PGM77501212000-3.7K 12V 3243 4700 2528 20000 3 77.8 43000 12
FT-42PGM7750123500-3.7K 12V 945 600 772 3100 1.7 13.5 8000 8
FT-42PGM7750127000-3.7K 12V 1891 1900 1544 8900 2.5 39.6 20000 10
FT-42PGM7750126000-5K 12V 1200 1200 1087 6000 2.6 29 17430 13
FT-42PGM7750128000-25K 12V 320 2000 226 7200 15 34.8 20500 62
FT-42PGM7750127000-125K 12V 56 1100 47 7300 63 30.4 20900 313
FT-42PGM7750126000-49K 12V 122 1250 97 4650 22.3 22.2 1730 122
FT-42PGM7750126000-125K 12V 48 950 37 4200 52 19.7 12000 220
FT-42PGM7750123600-125K 12V 28 550 23 2100 43 10.1 7100 222
FT-42PGM7750123100-514K 12V 6 500 4.6 1600 81 19.2 12400 269
FT-42PGM7750246000-3.7K 24V 1621 700 1414 3800 2.3 33.4 12000 13.9
FT-42PGM77502410000-13K 24V 769 1100 685 7400 9.9 69.6 27150 62
FT-42PGM77502410000-14K 24V 730 860 626 5500 10.7 68.7 2500 64.6
FT-42PGM7750248000-25K 24V 320 850 280 4000 15 43.1 14500 80
FT-42PGM7750242100-49K 24V 42 170 32 700 13.5 4.4 1400 51
FT-42PGM7750243000-49K 24V 61 200 53 1100 15.8 8.6 3500 93
FT-42PGM7750242100-67K 24V 31 130 23 590 17 4 1420 75
FT-42PGM7750247000-67K 24V 104 600 90 3600 32 29.6 13600 216
FT-42PGM7750243600-125K 24V 28 300 24 1800 57 14 5400 300
FT-42PGM7750244500-181K 24V 24.8 900 19 3030 92 17.9 6200 368
FT-42PGM7750242000-336K 24V 6 150 4.7 500 57 2.7 1000 220
FT-42PGM7750243100-516K 24V 6 500 5 1200 60 28 11700 376
FT-42PGM7750243000-625K 24 4.8 470 4.5 900 50 21.6 670 590
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in
