Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications
Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications
Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications
Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications
Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications
Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications
Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications
Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications
Specifications
Brand Name :
FUTENG
Certification :
CE , ROSH ,FCC, ISO9001,ISO1004,IAFT16949
Model Number :
FT-36PGM36ZY
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Diameter :
ф36mm
Rated Voltage :
3-24v Customized
Rated Speed :
2-1000rpm Customized
Application :
#household appliances#office equipments#health-care #beauty-care facilities#medical equipments#toys#electronic tools#electronic commodities#automobile parts# automatic systems as well
Gear Type :
Planetary Teeth Gear
Support :
Adjustable speed
Power :
1-48W Customized
Packing :
Foam Cotton Tray
Gear Materials :
Steel
Advantages :
Large Torque, Long Life, High Efficiency, Good Stability;
Reduction Ratio :
1:3.7/1:5.2 /1:14/1:16/1:19/1:22/1:27/1:51/1:59/1:71/1:82/1:100/1:115/1:139/1:189/1:218/1:304/1:427/1:516/1:596/1:721
Name :
DC Planetary Gear Motor
Description

Customized FT-36PGM36ZY DC 12V 24V ф36mm High Efficiency Large Horque Full Metal Planetary Gear Box Electric Motors

Product Description

Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications

Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications


Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications

Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications

Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications

Application

Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications

Note:

1. Motors are not allowed to be used beyond the limit of stall torque.

2. Please choose the power supply (DC: 2V/24V) reasonably according to the input voltage of the product.

3. Load torque = rated torque; load speed = rated speed when the load torque is to the rated torque; if the actual load exceeds the rated load, the actual output speed should be correspondingly reduced.

4. It is recommended to refer to the rated torque when selecting the model.

5. Damage to the internal components may occur when approaching/exceeding the limit of stall torque.

6. Reducing the motor speed will in a decrease in output torque.

7. There will be about 50db noise during the operation of the motor, which may vary slightly with the change of speed.

Reduction ratio determines output torque! The larger the reduction ratio, the greater the torque and the lower the speed! (It's not the speed adjustment that determines if you lower the speed, the torque will decrease accordingly.)

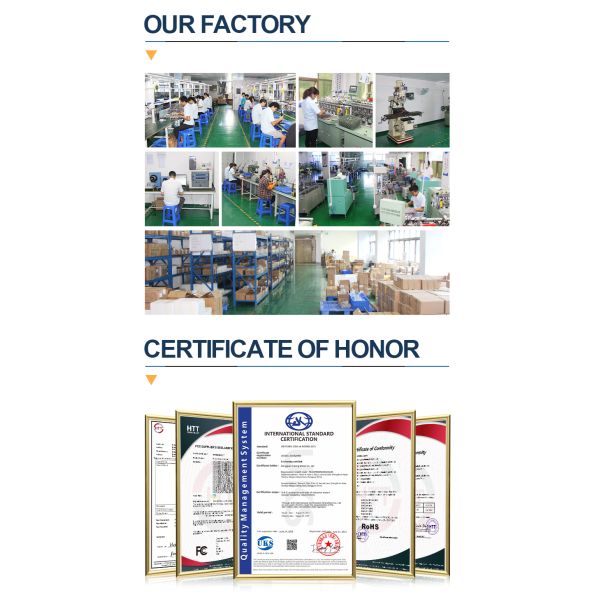

OUR FACTORY

Customized ф36mm 12V 24V High Efficiency Planetary Gear Motor with Large Torque for Industrial Applications

Packaging & Shipping

Standard Export Carton & Customzied Packing

Shipping

DHL: 3-5 working days ;

UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days; China
Post: Depends on ship to which country
Sea: Depends on ship to which country
FAQ

Q1: Are you a Manufacturer or a Trading Company?

A:We are a professional manufacturer with over 11 years of experience,

and have a complete supply chain from parts processing to finished products.

Q2: How is your Quality Control?

A: We have professional checking staff on every production line process.

After finishing the whole motor, we have the entire quality machine to test the motor.

Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester,

Temperature Test Machine, and Noise tester etc.

Q3: How about Sample order?

A: Sample is available for you. please contact us for details. Once we charge you sample fee,

please feel easy, it would be refund when you place formal order.

Q4: How long is the producing and shipping?

A: 1. Delivery timedepends on the quantity you order. usually it takes 7-15 working days.

2. Regular type products can be shipped within 3 workingdays,

and other customized samples can be shipped within 7-10 working days.

Q5: When will you reply after got my inquiries?

A: Ourcustomer service is online 24 hours, looking forward to your inquiry.
