Specifications
Model Number :
FT-20PGM130
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Speed(RPM) :
1rpm-200rpm
Commutation :
Brush
Construction :
Permanent Magnet
Torque :
0.1-20kgf.cm, 9/11.4/5.7/10.9(g.cm)
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-20PGM130
Voltage :
1-24V
Speed :
1rpm-2000rpm
Rotating speed :
8300/7200/5400/6100(rpm)
Rated voltage :
4.8/12/5/7.5V
Current :
75/30/30/33(mA)
Output :
0.61/0.66/0.25/0.55(w)
Description

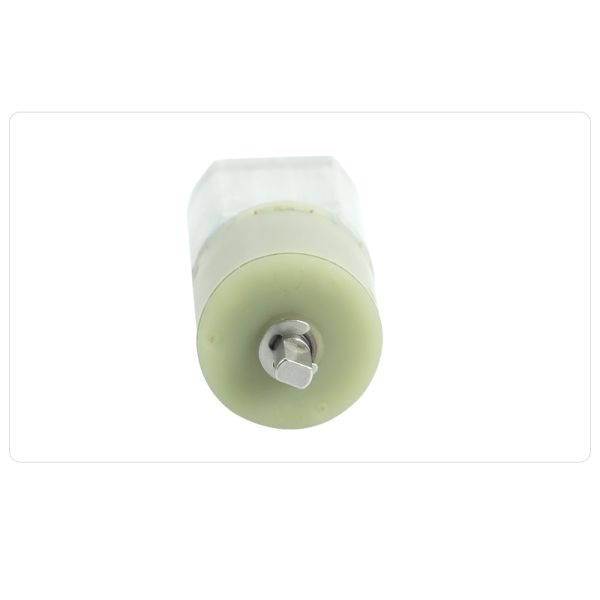

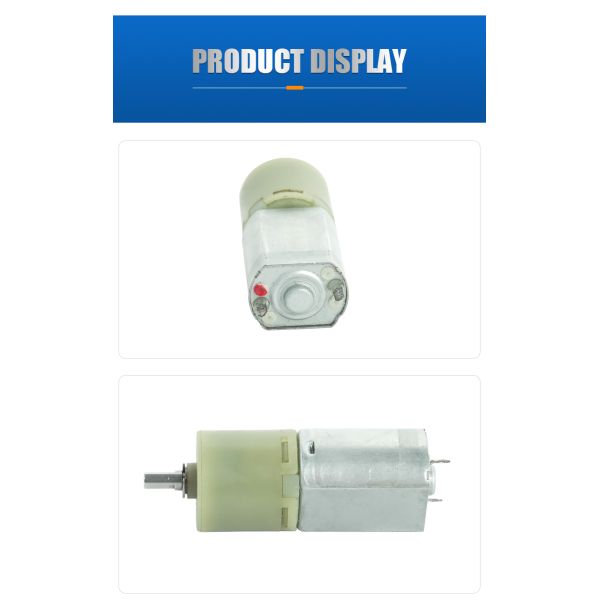

24v High Power Brush DC Planetary Gear Motor 12 Volt Planetary Gear Motor

FT MOTOR

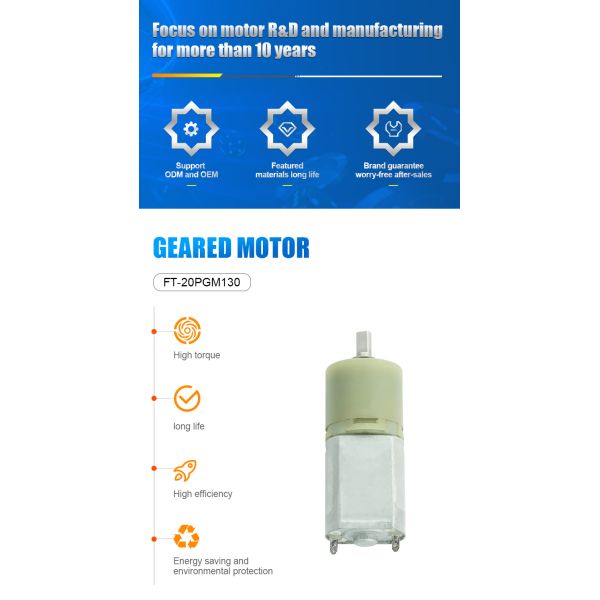

Geared motor model: FT-20PGM130 Reducer diameter: Ø20mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

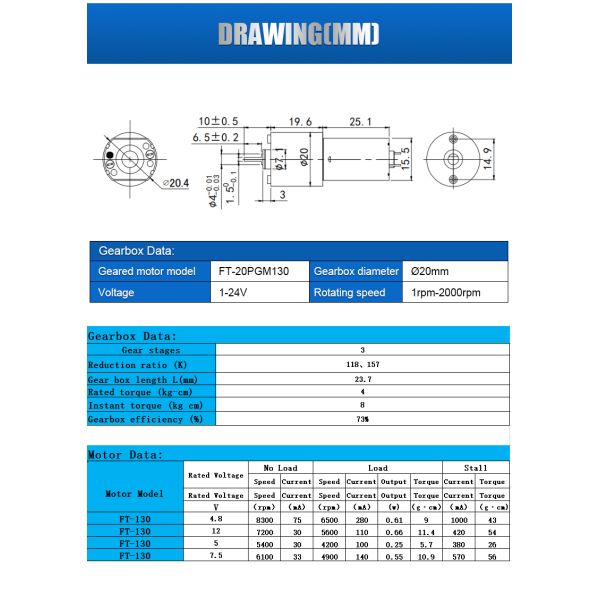

Gearbox Data:

Gear stages
3
Reduction ratio (K)
118,157
Gear box length L(mm)
23.7
Rated torque (kg·cm)
4
Instant torque (kg·cm)
8
Gearbox efficiency (%)
73%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-130
4.8
8300
75
6500
280
0.61
9
1000
43
FT-130
12
7200
30
5600
110
0.66
11.4
420
54
FT-130
5
5400
30
4200
100
0.25
5.7
380
26
FT-130
7.5
6100
33
4900
140
0.55
10.9
570
56
