Specifications
Model Number :
FT-22PGM180-76K
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Name :
Planetary DC Geared Motor
Continuous Current(A) :
about 150-3500mA
Efficiency :
65%-95%
Rated Power :
1-48w
Rated voltage :
3*24v, 12/3/24/5V
Speed Rpm :
2rpm-1500rpm
Torque :
1-30kgf.cm, 23.6/25.2/25.6/19(g.cm)
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-22PGM180-76K
Gear box size :
22mm
Rotating speed :
12000/12900/10200/5000(rpm)
Current :
70/260/30/75(mA)
Output :
2.41/2.86/2.52/0.8(w)
Description

VR

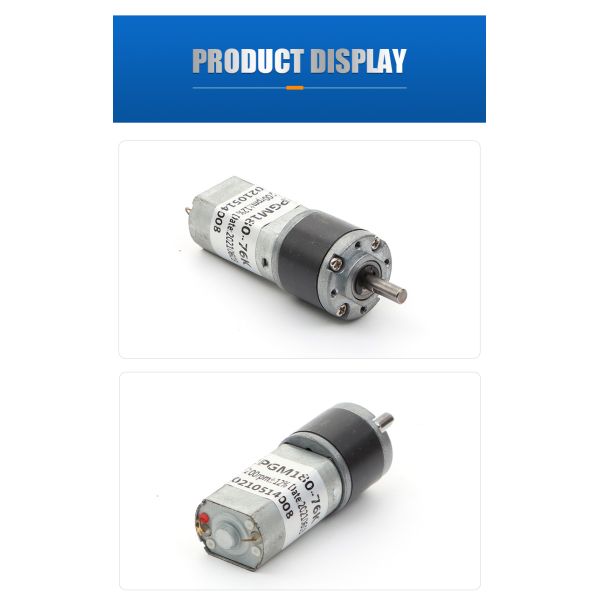

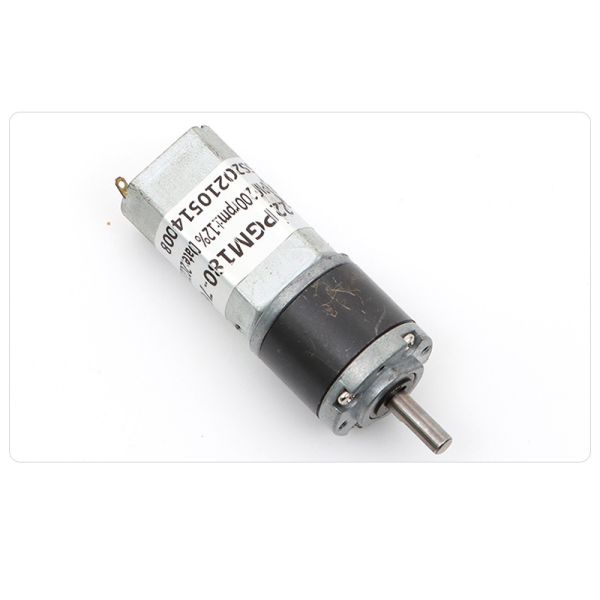

Customized Futeng 3-24V DC Planetary Gear Motor For Cleaning Appliances3-24V Planetary DC Geared Motor Explosion Proof For Cleaning Appliances

FT MOTOR

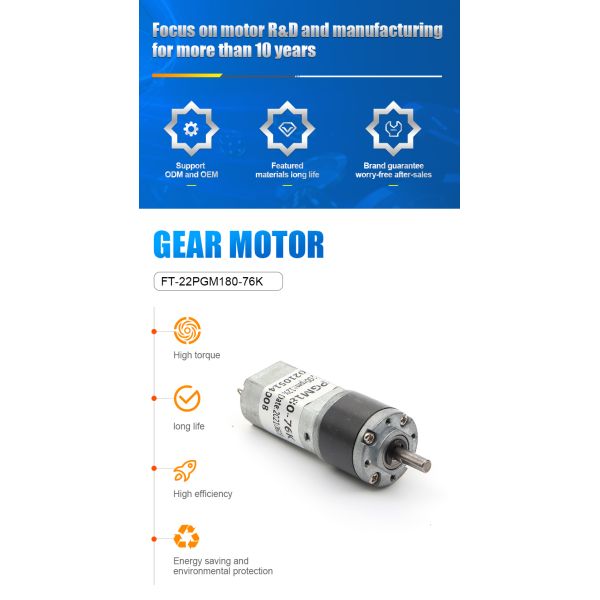

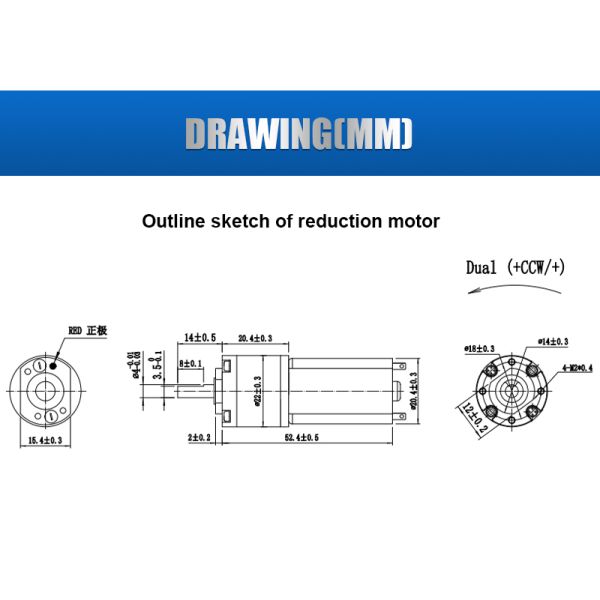

Geared motor model: FT-22PGM180-76K Gearbox diameter: Ø22mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.
Gearbox Data:




Gear stages
1
2
3
4
Reduction ratio (K)
3.5,4.8
12,17,23
43,58,79,107
150,204,276,375,509
Gear box length L(mm)
14.5
19.1
23.7
28.3
Rated torque (kg·cm)
2
3
4
5
Instant torque (kg·cm)
4
6
8
10
Gearbox efficiency (%)
90%
81%
73%
65%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-180
12
12000
70
10000
340
2.41
23.6
1700
140
FT-180
3
12900
260
11000
1540
2.86
25.2
9100
174
FT-180
24
10200
30
8600
160
2.52
25.6
830
160
FT-180
5
5000
75
4000
158
0.8
19
790
85
