FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR
FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR
FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR
FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR
FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR
FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR
FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR
FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR
Specifications
Model Number :
FT-16PGM050
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Efficiency :
51%-83%
Rated Power :
1-48w
Rated voltage :
3-24v
Speed Rpm :
2rpm-2000rpm
Torque :
1-200kgf.cm, 0.3/3/5/20/25/30 to 50N.m (Can be Customized)
Type :
Gear Motor
Usage :
Home Appliance, Cosmetic Instrument, Smart Home, toy
Warranty :
3 months ~ 1 year
Geared motor model :
FT-16PGM050
Dimension :
16mm
Voltage :
DC Input 3v,6v,9v,12v,24v,36v,48v,60v (Can be Customized)
Power :
12/25/50/75/100/125/200/250/300 to 800w (Can be Customized)
Speed :
Variable speed from 1-3000rpm (Can be Customized)
Shaft :
shaft Dia: 4mm
Bearing At Output :
Ball bearing / Sleeve bearing
Accessories :
Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
Weight :
According to gear stage
Name :
DC Planetary Gear Motor
Description

FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR

FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR

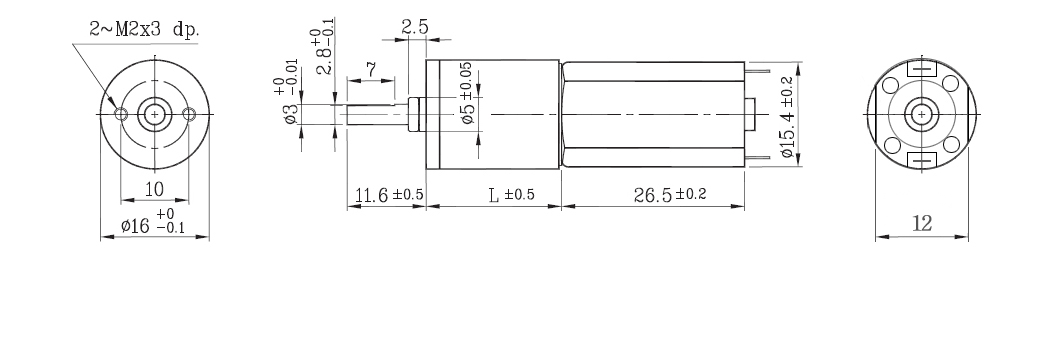

Dimensions (Unit: mm)

FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR


Geared Motor Specification

FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR

FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR

FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR



Packaging & Shipping

Export Carton & Customzied Packing

FT-16PGM050 12V Planetary Geared Motor with Hall Encoder 6PPR


FAQ


Q:1.What kind of motors you can provide?

A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.

Q:2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?

A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some sample?

A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
