Specifications
Model Number :
FT-36PGM36ZY
Brand Name :
FUTENG
Place of Origin :
China
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Rated voltage :
3-48v
Speed Rpm :
2-1500
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Product Name :
FT-36PGM36ZY
Application :
Automatic Product
Diameter :
36mm
Brush Type :
Cabon Brush
Rated torque :
2-600kgf.cm
Gear Type :
Full steel gear
Motor type :
Planetary Gear Motor
Name :
DC Planetary Gear Motor
Description
Product Description

FT-36PGM36ZY 12V 24V Planetary Gear Motors

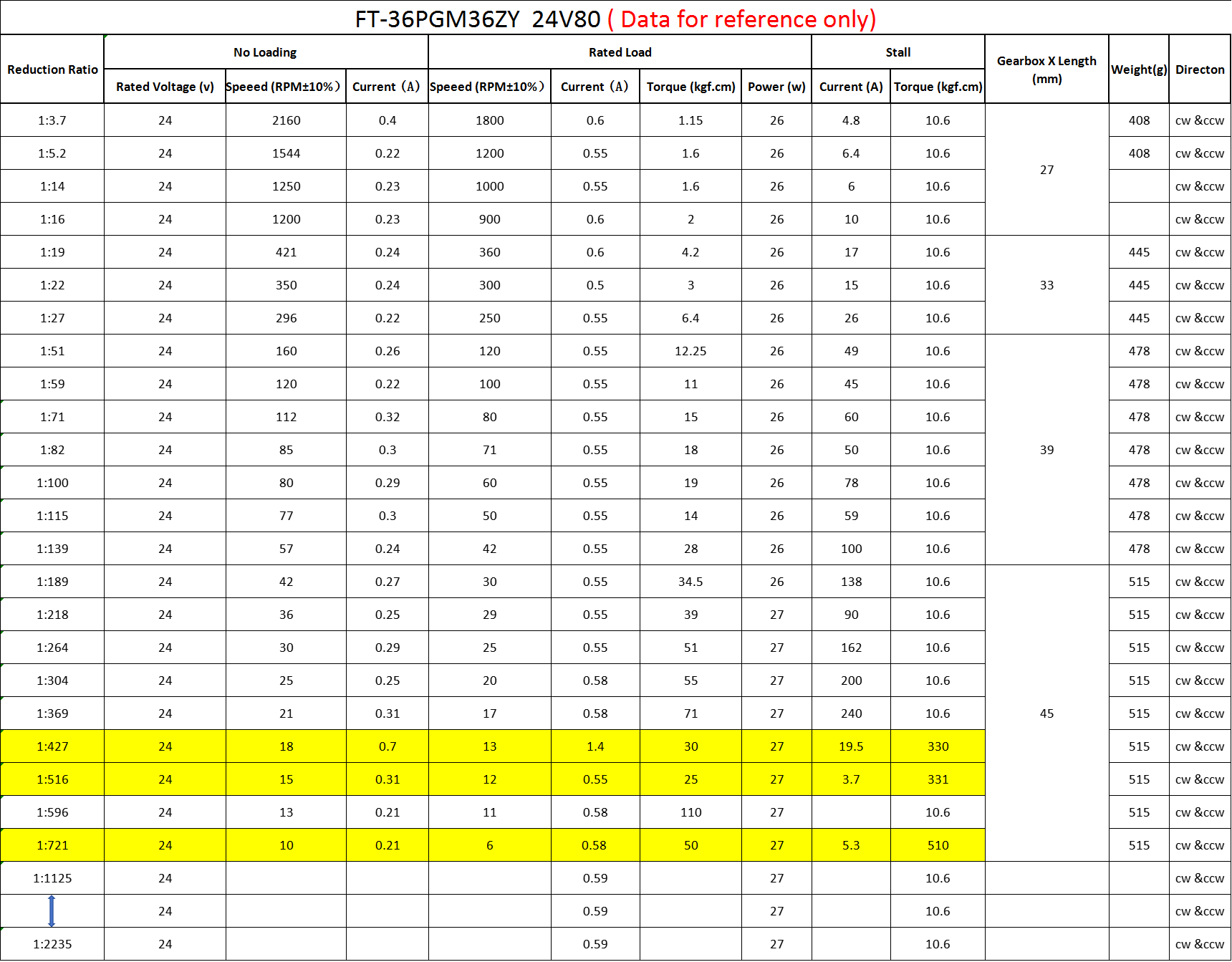

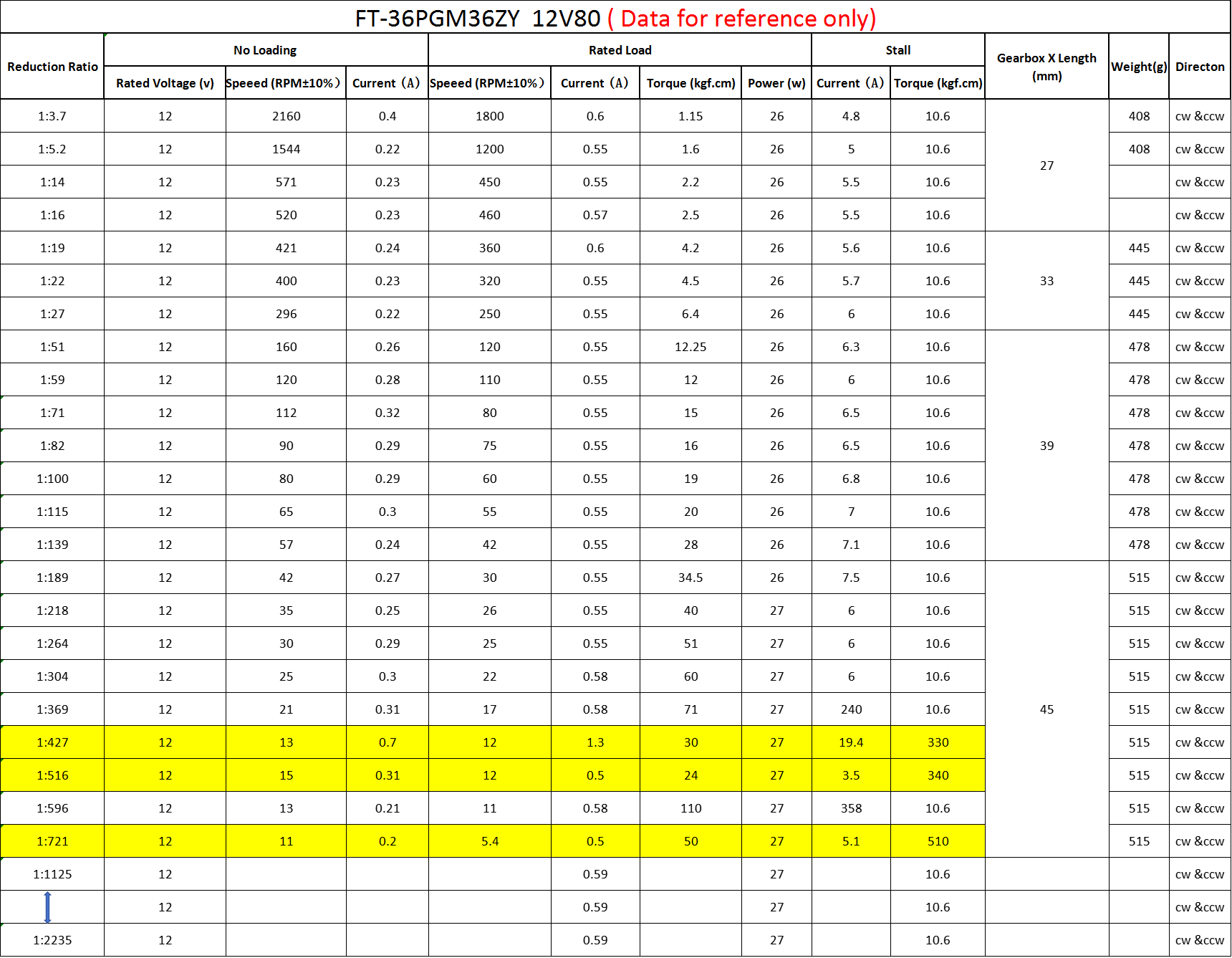

Reduction ratio determines output torque! The larger the reduction ratio,

the greater the torque and the lower the speed!

(It's not the speed adjustment that determines if you lower the speed, the torque will decrease accordingly.)

FT-36PGM36ZY 12V 24V Planetary Gear Motors

FT-36PGM36ZY 12V 24V Planetary Gear Motors

FT-36PGM36ZY 12V 24V Planetary Gear Motors

FT-36PGM36ZY 12V 24V Planetary Gear Motors

FT-36PGM36ZY 12V 24V Planetary Gear Motors

Note:

1. Motors are not allowed to be used beyond the limit of stall torque.

2. Please choose the power supply (DC: 2V/24V) reasonably according to the input voltage of the product.

3. Load torque = rated torque; load speed = rated speed when the load torque is to the rated torque; if the actual load exceeds the rated load, the actual output speed should be correspondingly reduced.

4. It is recommended to refer to the rated torque when selecting the model.

5. Damage to the internal components may occur when approaching/exceeding the limit of stall torque.

6. Reducing the motor speed will in a decrease in output torque.

7. There will be about 50db noise during the operation of the motor, which may vary slightly with the change of speed.



Packaging & Shipping

Foam Cotton Tray & Standard Export Carton

FT-36PGM36ZY 12V 24V Planetary Gear Motors
