Specifications
Model Number :
FT-28PGM395
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Continuous Current(A) :
about 430mA-2500mA
Efficiency :
65%-90%
Torque :
1-50kgf.cm, 80/95/100/90(g.cm)
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-28PGM395
Gear box size :
28mm
Voltage :
1-24V
Speed :
5000rpm-8400rpm
Rotating speed :
12000/12900/10200/5000(rpm)
Rated voltage :
6v/12v/24v
Current :
2500/850/430/540(mA)
Output :
15/10.2/10.32/12.96(w)
Name :
DC Planetary Gear Motor
Description

FT MOTOR

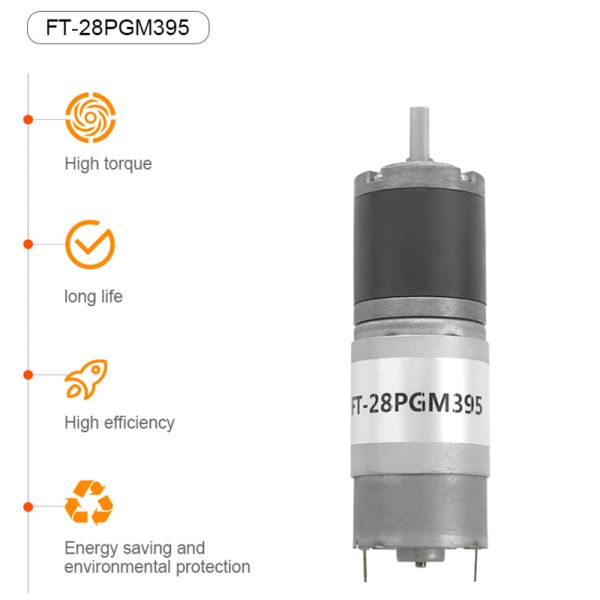

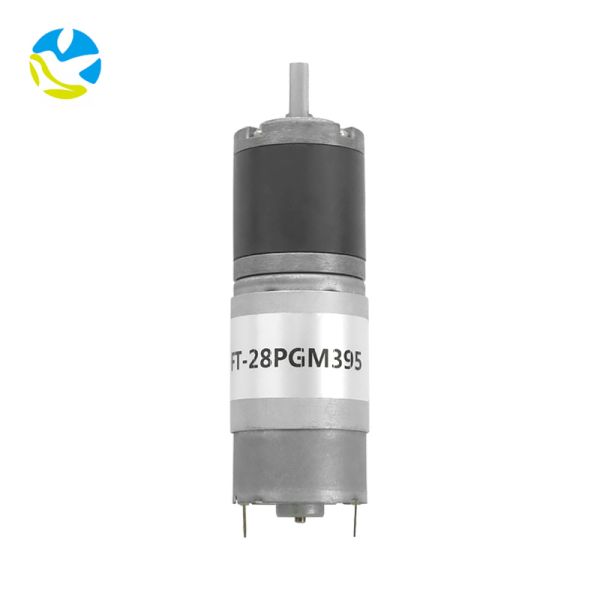

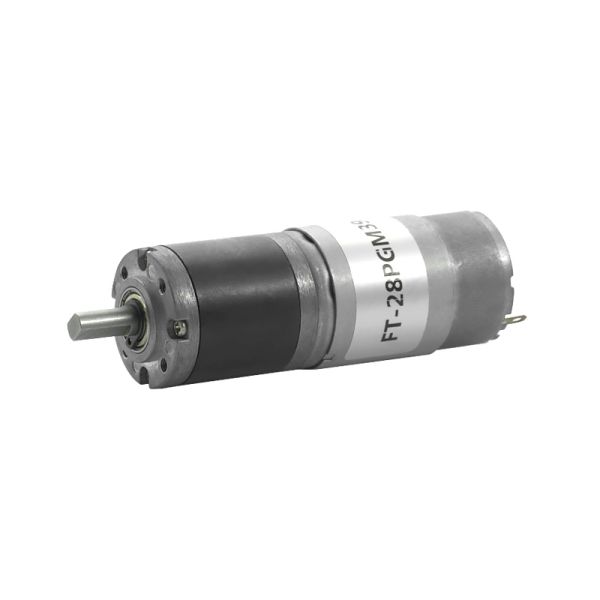

FT MOTOR Geared motor model: FT-28PGM395 Gearbox diameter: Ø28mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.
Gearbox Data:




Gear stage
1
2
3
4
Reduction ratio (K)
3.7,5.2
14,19,27
51,71,100,139
189,264,369,515,721
Gear box length L(mm)
27.5
35.5
43.5
51.5
Rated torque (kg·cm)
3
6
9
17
Instant torque (kg·cm)
6
10
20
35
Gearbox efficiency (%)
90%
81%
73%
65%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-370
6
10000
400
8400
2500
15
80
8800
430
FT-370
12
6000
180
5000
850
10.2
95
2700
560
FT-370
24
6000
80
5000
430
10.32
100
1500
560
FT-370
24
7500
100
6300
540
12.96
90
1800
600
