FT-25RGM370 DC 12V 24V High Torque Brushed Spur Gear Motor For Robots Model
FT-25RGM370 DC 12V 24V High Torque Brushed Spur Gear Motor For Robots Model
FT-25RGM370 DC 12V 24V High Torque Brushed Spur Gear Motor For Robots Model
FT-25RGM370 DC 12V 24V High Torque Brushed Spur Gear Motor For Robots Model
FT-25RGM370 DC 12V 24V High Torque Brushed Spur Gear Motor For Robots Model
FT-25RGM370 DC 12V 24V High Torque Brushed Spur Gear Motor For Robots Model
FT-25RGM370 DC 12V 24V High Torque Brushed Spur Gear Motor For Robots Model
FT-25RGM370 DC 12V 24V High Torque Brushed Spur Gear Motor For Robots Model
Specifications
Model Number :
FT-25RGM370
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Packaging Details :
Standard Export Carton & Customzied
Delivery Time :
15-30 days/Negotiable
Speed(RPM) :
2rpm-600rpm
Torque :
18 g.cm, 25.3/30/21/27(g.cm)
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-25RGM370
Gear box size :
25mm
Voltage :
1-24V
Rotating speed :
12000/12900/10200/5000(rpm)
Rated voltage :
12v/24v
Current :
26/120/30/40(mA)
Output :
1.25/6.6/2.6/5(w)
Name :
Robot Electric Motor
Description

FT-25RGM370 High Quality DC 12v 24v High Torque Brushed Spur Gear Motor For Robots Model

FT MOTOR

Geared motor model: FT-25RGM370 Gearbox diameter: Ø25mm Voltage: 1-24V Speed: 1rpm-600rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

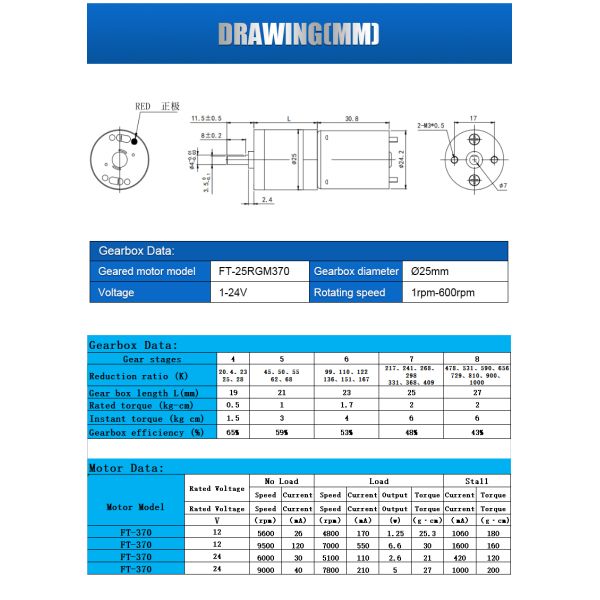

Gearbox Data:






Gear stages
3
4
5
6
7
8
Reduction ratio (K)
9.3 10.3 11.5
20.4,23 25,28
45,50,55 62,68
99,110,122 136,151,167
217,241,268,298 331,368,409
478,531,590,656 729,810,900,1000
Gear box length L(mm)
17.5
19
21
23
25
27
Rated torque (kg·cm)
0.4
0.5
1
1.7
2
2
Instant torque (kg·cm)
1.2
1.5
3
4
6
6
Gearbox efficiency (%)
75%
65%
59%
53%
48%
43%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-370
12
5600
26
4800
170
1.25
25.3
1060
180
FT-370
12
9500
120
7000
550
6.6
30
1600
160
FT-370
24
6000
30
5100
110
2.6
21
420
120
FT-370
24
9000
40
7800
210
5
27
1000
200
