Specifications
Model Number :
FT-37RGM520
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Continuous Current(A) :
about 110mA-550mA
Efficiency :
48%-81%
Commutation :
Brush
Construction :
Permanent Magnet
Torque :
1-58 kgf.cm, 15/15/20/15(g.cm)
Type :
Gear Motor
Usage :
Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-37RGM520
Gear box size :
37mm
Speed :
1rpm-1500rpm
Rotating speed :
3000/6000/5500/7500(rpm)
Rated voltage :
6v/12v/24v
Current :
35/60/30/50(mA)
Output :
0.78/1.8/2.65/2.9(w)
Name :
Robot Electric Motor
Description

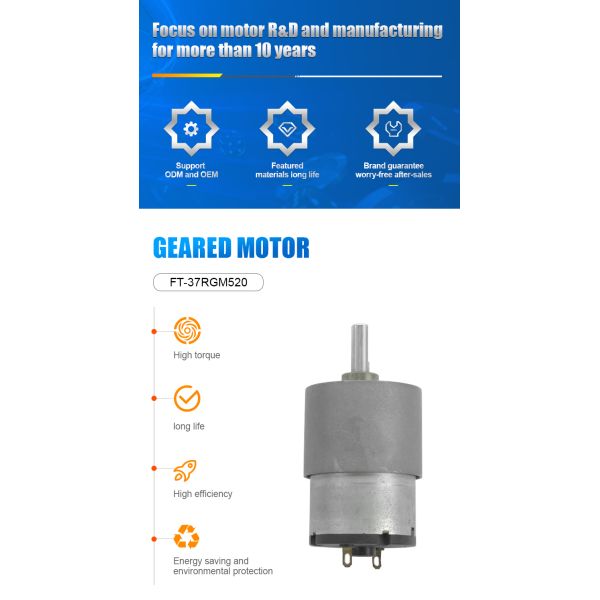

FT-37RGM520 6 12 24 Volt Gear Motor For Toy Robot Mini Gear Box Motor Transmission Micro Geared Motor

FT MOTOR

Geared motor model: FT-37RGM520 Gearbox diameter: Ø37mm Voltage: 1-24V Speed: 1rpm-1500rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

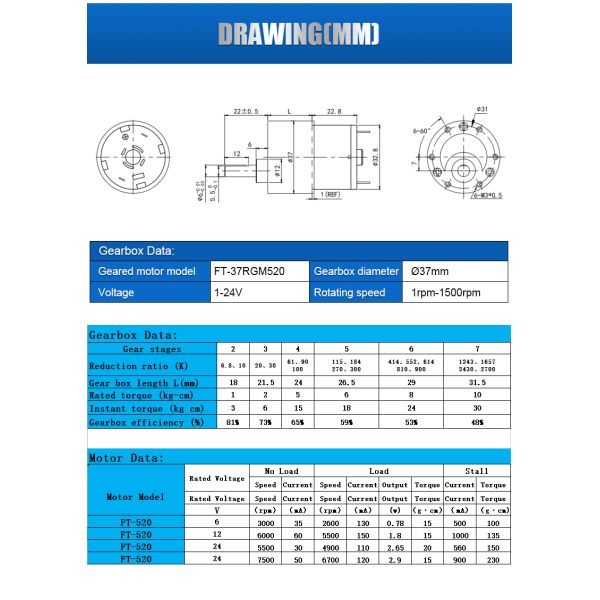

Gearbox Data:






Gear stages
2
3
4
5
6
7
Reduction ratio (K)
6.8,10
20,30
61,90
100
115,184 270,300
414,552,614 810,900
1243,1657 2430,2700
Gear box length L(mm)
18
21.5
24
26.5
29
31.5
Rated torque (kg·cm)
1
2
5
6
8
10
Instant torque (kg·cm)
3
6
15
18
24
30
Gearbox efficiency (%)
81%
73%
65%
59%
53%
48%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-520
6
3000
35
2600
130
0.78
15
500
100
FT-520
12
6000
60
5500
150
1.8
15
1000
135
FT-520
24
5500
30
4900
110
2.65
20
560
150
FT-520
24
7500
50
6700
120
2.9
15
900
230
