Specifications
Model Number :
FT-65FGM545
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Continuous Current(A) :
about 430mA-2500mA
Efficiency :
59%-73%
Commutation :
Brush
Construction :
Permanent Magnet
Torque :
1-7 0kgf.cm, 100/50/20/110(g.cm)
Type :
Gear Motor
Usage :
Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-65FGM545
Gear box size :
65*38mm
Voltage :
3-24V
Speed :
5rpm-2000rpm
Rotating speed :
4500/6000/6000/7000(rpm)
Current :
50/70/55/60(mA)
Output :
3.6/4.2/6 /1.76(w)
Name :
Flat Gear Motor
Description

China Manufacturer Direct Selling 12V DC Gear Motor Low Noise Brushed DC Flat Gear Motor


FT MOTOR

FT MOTOR Geared motor model: FT-65FGM545 Gearbox diameter: Ø65*38mm Voltage: 3-24V Speed: 5rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

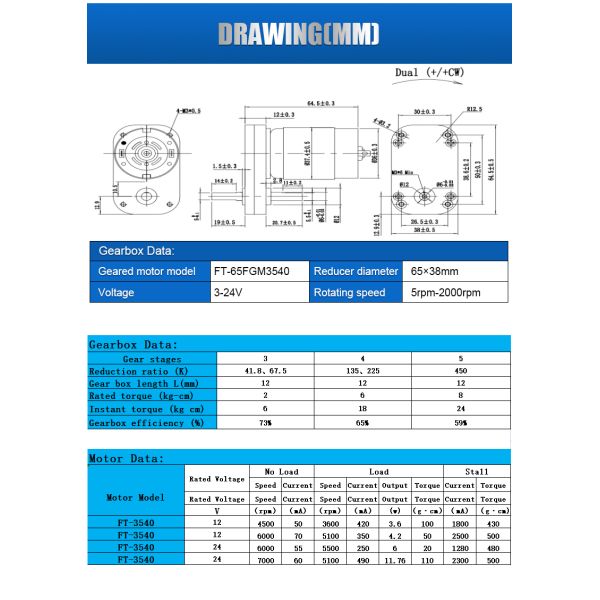

Gearbox Data:



Gear stage
3
4
5
Reduction ratio (K)
41.8,67.5
135,225
450
Gear box length L(mm)
12
12
12
Rated torque (kg·cm)
2
6
8
Instant torque (kg·cm)
6
18
24
Gearbox efficiency (%)
73%
65%
59%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-545
12
4500
50
3600
420
3.6
100
1800
430
FT-545
12
6000
70
5100
350
4.2
50
2500
500
FT-545
24
6000
55
5500
250
6
20
1280
480
FT-545
24
7000
60
5100
490
11.76
110
2300
500
