Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Custom 3-12V Low Rpm DC Gear Motor High Torque With Flat Gearbox
Specifications
Model Number :
FT-65FGM520
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Continuous Current(A) :
about 430mA-2500mA
Efficiency :
59%-73%
Commutation :
Brush
Construction :
Permanent Magnet
Torque :
1-80kgf.cm, 15/15/20/15(g.cm)
Type :
Gear Motor
Usage :
Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-65FGM520
Gear box size :
65*38mm
Voltage :
3-24V
Speed :
5rpm-5000rpm
Rotating speed :
3000/6000/5500/7500(rpm)
Current :
35/60/30/50(mA)
Output :
0.78/1.8/2.65/2.9(w)
Description

Custom 3-12V High Torque Low Rpm DC Gear Motor With Flat Gearbox 1-35kg.Cm 5-5000rpm Gear Motor

FT MOTOR

FT MOTOR Geared motor model: FT-65FGM520 Gearbox diameter: Ø65*38mm Voltage: 3-24V Speed: 5rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

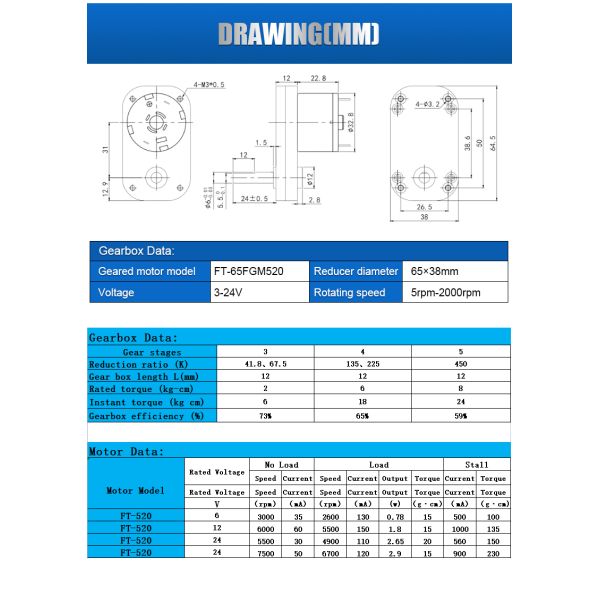

Gearbox Data:



Gear stage
3
4
5
Reduction ratio (K)
41.8,67.5
135,225
450
Gear box length L(mm)
12
12
12
Rated torque (kg·cm)
2
6
8
Instant torque (kg·cm)
6
18
24
Gearbox efficiency (%)
73%
65%
59%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-520
6
3000
35
2600
130
0.78
15
500
100
FT-520
12
6000
60
5500
150
1.8
15
1000
135
FT-520
24
5500
30
4900
110
2.65
20
560
150
FT-520
24
7500
50
6700
120
2.9
15
900
230
