Specifications
Model Number :
FT-65FGM3530
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Name :
Low Rpm DC Gear Motor
Commutation :
Brush
Construction :
Permanent Magnet
Rated Power :
1-48W
Rated voltage :
3-24v, 6v/12v/24v
Speed Rpm :
5rpm-500rpm
Torque :
0.5-30kgf.cm, 20/30/20/50(g.cm)
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-65FGM3540
Gear box size :
65mm
Rotating speed :
3000/6000/11000/6000(rpm)
Current :
40/50/150/30(mA)
Output :
0.9/3.24/4.42/4.8(w)
Description

Factory Wholesale 6V12V24V 3540 Motor High Torque Slow Speed Rpm DC Flat Gear Motor


Product Description

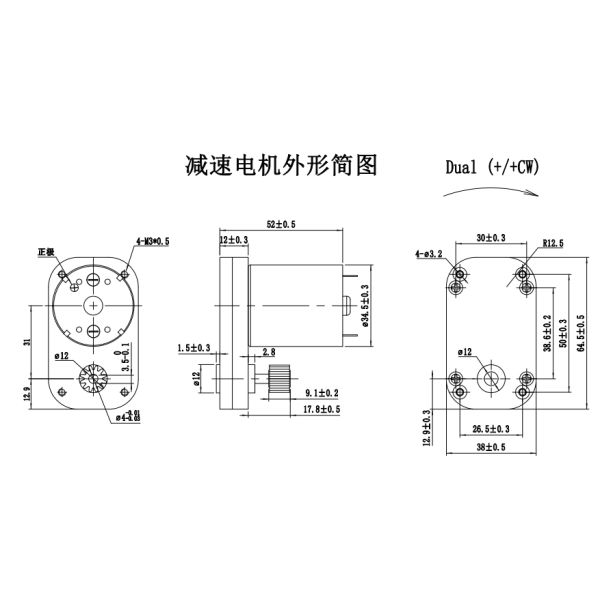

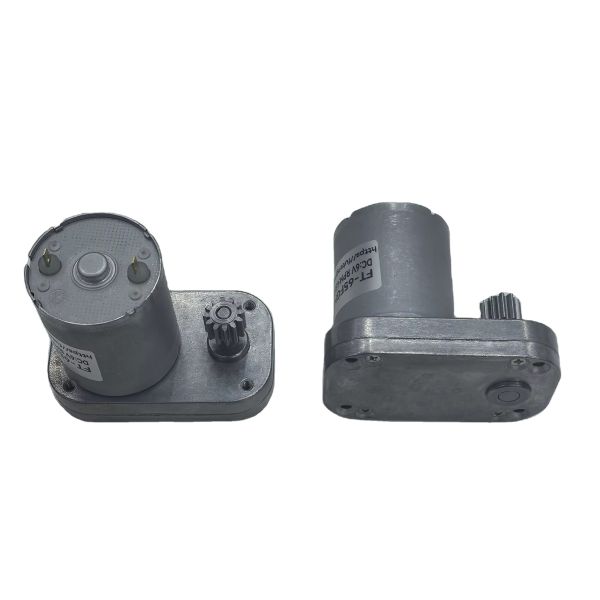

65X38mm Square gearbox, can be matched with 500/520/3525/3526/530/3540 motor, voltage, output speed, torque, output shaft can be customized according to requirements, support forward and reverse rotation.

High Torque Slow Speed Low Rpm DC Gear Motor 3540 Motor FT-65FGM3540

High Torque Slow Speed Low Rpm DC Gear Motor 3540 Motor FT-65FGM3540


1. Miniature reduction motor, consisting of a small power DC motor and a reducer (gearbox). The reducer reduces the speed and increases the torque to achieve desired effect.

2. The gearbox is a gear speed change, using full metal precision gear cutting processing technology, with stable transmission, low noise, and four major features: low noise, large torque, long life, high precision.

3. D-shaped shaft after machining chamfer, increase the force

friction to increase the torque of the motor, can be customized according to the requirements

erved 2 screw holes added fixed position, using high installation, more secure, more lasting.

4.Motor is widely used in robots, massage machines,

household appliances, medical equipment, automatic shared products

shoe mold machine and so on, all kinds automation products.
