Specifications
Model Number :
FT-65FGM3525
Brand Name :
FUTENG
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Certification :
CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
8000 0000
Delivery Time :
15-30 days/Negotiable
Packaging Details :
Standard Export Carton & Customzied
Name :
Flat Gear Motor
Continuous Current(A) :
about 430mA-2500mA
Efficiency :
59%-95%
Commutation :
Brush
Construction :
Permanent Magnet
Torque :
1-38kgf.cm, 20/30/20/50(g.cm)
Type :
Gear Motor
Usage :
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home
Warranty :
3 months ~ 1 year
Geared motor model :
FT-65FGM3525
Gear box size :
65*38mm
Voltage :
3-24V
Speed :
5rpm-200rpm
Rotating speed :
3000/6000/11000/6000(rpm)
Current :
40/50/150/30(mA)
Output :
0.9/3.24/4.42/4.8(w)
Description

FT MOTOR

FT MOTOR Geared motor model: FT-65FGM3525 Gearbox diameter: Ø65*38mm Voltage: 3-24V Speed: 5rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, ATM machines, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, automotive automatic facilities, etc.

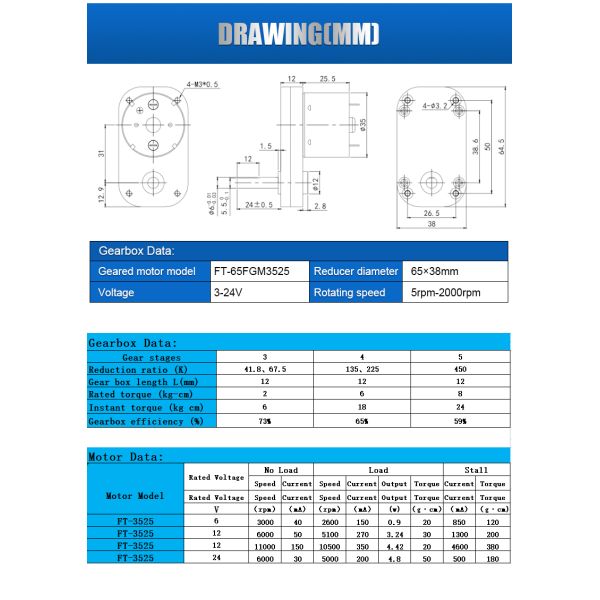

Gearbox Data:



Gear stage
3
4
5
Reduction ratio (K)
41.8,67.5
135,225
450
Gear box length L(mm)
12
12
12
Rated torque (kg·cm)
2
6
8
Instant torque (kg·cm)
6
18
24
Gearbox efficiency (%)
73%
65%
59%
Motor Data









Motor Model

No Load

Load



Stall

Motor Model
Rated Voltage
Speed
Current
Speed
Current
Output
Torque
Current
Torque

V
(rpm)
(mA)
(rpm)
(mA)
(w)
(g·cm)
(mA)
(g·cm)
FT-3525
6
3000
40
2600
150
0.9
20
850
120
FT-3525
12
6000
50
5100
270
3.24
30
1300
200
FT-3525
12
11000
150
10500
350
4.42
20
4600
380
FT-3525
24
6000
30
5000
200
4.8
50
500
180
