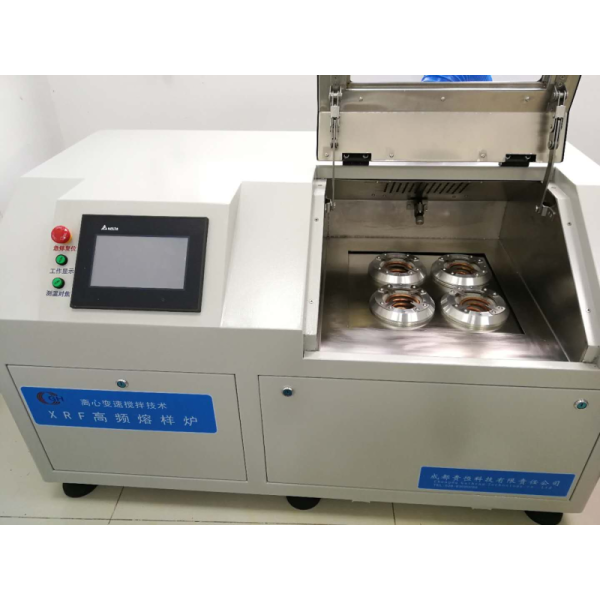

XRF Fusion Sample Preparation Instruments 50KHz-80KHz Sample Preparation Machine
XRF Fusion Sample Preparation Instruments 50KHz-80KHz Sample Preparation Machine
XRF Fusion Sample Preparation Instruments 50KHz-80KHz Sample Preparation Machine
XRF Fusion Sample Preparation Instruments 50KHz-80KHz Sample Preparation Machine
XRF Fusion Sample Preparation Instruments 50KHz-80KHz Sample Preparation Machine
XRF Fusion Sample Preparation Instruments 50KHz-80KHz Sample Preparation Machine
Specifications
Model Number :
GH-T4
Certification :
ISO
Brand Name :
Guiheng
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Place of Origin :
Chengdu China
MOQ :
1set
Delivery Time :
30days
Description

XRF Fusion Sample Preparation Instruments 50KHz-80KHz Sample Preparation Machine

Table 1: Main parameters of equipment

Unit type GH-T4
Maximum output 8KW (fused and molded power supply output power)
Range of oscillation frequencies 50KHz-80KHz
Range of current regulation 35A-130A
Time adjustment range 0s-999s
Forming mode Auto
Sample production per batch 4
Cooling water pressure 0.1-0.3MPa
Program storage More than 10 groups
Fusion temperature 0-1300℃ (adjustable)
Temperature control accuracy ±1℃
Stirring method Centrifugal rotation + positive reversal (exclusive patent)
Rotational speed range ★ 0-180 rpm / min (adjustable)
Speed change period ★ N. times / min (adjustable)
Infrared temperature measurement range 400℃-1200℃
Main dimensions (length, width and height) 1160×640×680mm
Host net weight 192kg
Tank shape size 800x540x920
Water tank net weight 90kg

"★" Mark is the unique technical parameter of Guiheng Company
