50/60Hz High Frequency XRF Fusion Sample Preparation Equipment
50/60Hz High Frequency XRF Fusion Sample Preparation Equipment
50/60Hz High Frequency XRF Fusion Sample Preparation Equipment
50/60Hz High Frequency XRF Fusion Sample Preparation Equipment
50/60Hz High Frequency XRF Fusion Sample Preparation Equipment
50/60Hz High Frequency XRF Fusion Sample Preparation Equipment
Specifications
Delivery Time :
30days
Measurementrange :
Ppm To 100%
Place of Origin :
Chengdu China
Certification :
ISO
Dimensions :
600mm X 500mm X 400mm
Brand Name :
Guiheng
Model Number :
XRF High-frequency Fusion Sample Equipment 2ZC
Place Of Origin :
XRF High-frequency Fusion Sample Equipment 4ZC
Type :
X-ray Fluorescence Analyzer
MOQ :
1set
Powersupply :
AC 220V, 50/60Hz
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Detectionelements :
From Sodium (Na) To Uranium (U)
Softwarefeatures :
Quantitative Analysis, Qualitative Analysis, Data Export
Application :
Material Composition Analysis
Detectortype :
Silicon Drift Detector (SDD)
Description
Guiheng XRF High-Frequency Fusion Sample Equipment

Advanced fusion sample preparation equipment designed for precise material analysis in industrial and laboratory applications.

Parameter Specification

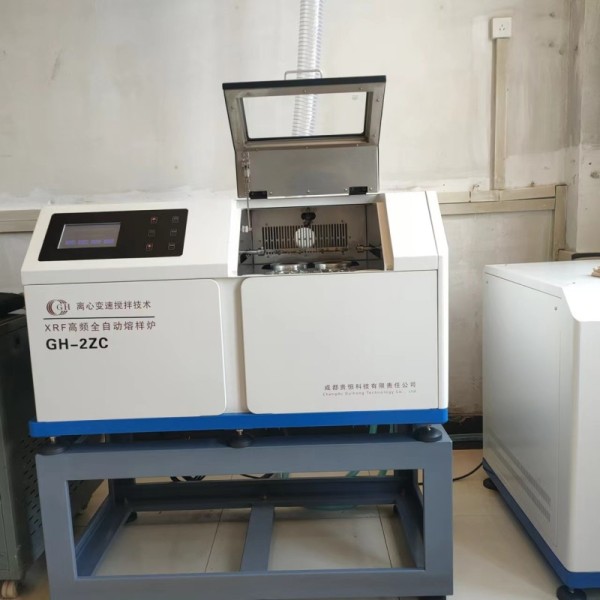

Unit Type GH-2ZC
Maximum Output 6KW (fused and molded power supply output power)
Range of Oscillation Frequencies 50KHz-80KHz
Range of Current Regulation 35A-130A
Time Adjustment Range 0s-999s
Forming Mode Auto
Sample Production per Batch 2
Cooling Water Pressure 0.1-0.3MPa
Program Storage More than 10 groups
Fusion Temperature 0-1300℃ (adjustable)
Temperature Control Accuracy ±1℃
Stirring Method Centrifugal rotation + positive reversal (exclusive patent)
Rotational Speed Range ★ 0-180 rpm / min (adjustable)
Speed Change Period ★ N. times / min (adjustable)
Infrared Temperature Measurement Range 400℃-1200℃
Main Dimensions (Length, Width, Height) 1160*640*680mm
Host Net Weight 192kg
Tank Shape Size 800x540x920
Water Tank Net Weight 90kg

★ Mark indicates unique technical parameters exclusive to Guiheng Company
